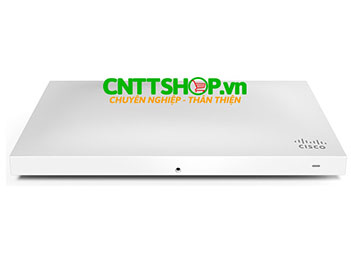

Cisco Meraki MR34-HW Cloud Managed 802.11ac Access Point

WI-FI

Radios

• One 2.4 GHz 802.11b/g/n, one 5 GHz 802.11a/n/ac, and one dedicated for dual-band WIPS & spectrum analysis
• Concurrent operations of all three radios
• Max data rate 1.75 Gbit/s

802.11n Capabilities

• 3 x 3 multiple input, multiple output (MIMO) with three spatial streams
• Maximal ratio combining (MRC)
• Beamforming
• Packet aggregation
• 20 and 40 MHz channels

Power

• Power over Ethernet: 37 - 57 V (802.3at compatible, with functionality-restricted 802.3af mode supported)
• 12 V DC
• Power consumption: 18W max (802.3at), 13.87W max (802.3af)

Mounting

• All standard mounting hardware included
• Desktop and wall mount
• Ceiling tile rail (9/16, 15/16 or 1 ½” flush or recessed rails), assorted cable junction boxes
• Bubble level on mounting cradle for accurate horizontal wall mounting

Physical Security

• Security screw included
• Kensington lock hard point, Anti-tamper cable bay
• Concealed mount plate

Environment

• Operating temperature: 32 °F to 104 °F (0 °C to 40 °C)
• Humidity: 5 to 95% non-condensing

Physical Dimensions

• 10.0” x 6.1” x 1.5” (253.4 mm x 155.8 mm x 37.1 mm), not including deskmount feet or mount plate
• Weight: 25 oz (0.7kg)

Antenna

• Integrated omni-directional antennas

Interfaces

• 1x 100/1000Base-T Ethernet (RJ45)
• 1x DC power connector (5 mm x 2.1 mm, center positive)

Security

• Integrated policy firewall (Identity Policy Manager)
• Mobile device policies
• Air Marshal: Real-time WIPS (wireless intrusion prevention system) with alarms
• Rogue containment policies
• Guest isolation
• Teleworker VPN with IPsec
• PCI compliance reporting
• WEP, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X
• TKIP and AES encryption
• VLAN tagging (802.1q)

Quality of Service

• Wireless Quality of Service (WMM/802.11e)
• Advanced Power Save (U-APSD)
• DSCP (802.1p)
• Layer 7 application traffic shaping and firewall

Mobility

• PMK and OKC credential support for fast Layer 2 roaming
• 802.11r and 802.11k
• L3 roaming

LED Indicators

• 2 Ethernet status
• 1 power/booting/firmware upgrade status
