CPAK-100GE-LR4 Cisco CPAK 100GBASE-LR4 Module with LC connector
- Danh mục sản phẩm Module Quang Cisco
- Fiber Type
-
Form Factor
- CPAK
-
Data Tranfer
- 100 GbE
-
Distance
- 10 Km
-
Wave Length
- 1310nm
- Connecter

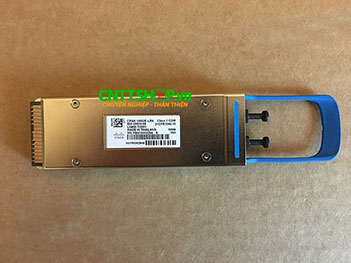

Cisco CPAK 100GBASE-LR4 Module CPAK-100GE-LR4 with LC connector
Cisco Part Number : CPAK-100GE-LR4
List Price : $42000
Giá bán : Liên hệ
Bảo hành : 12 tháng
Made In : China
Stock : Liên hệ
Module quang CPAK-100GE-LR4 hỗ trợ các liên kết quang 100Gbps, Single-mode với đầu kết nối LC
| View Datasheet CPAK-100GE-LR4 |
CPAK-100GE-LR4 tương thích với chuẩn IEEE 802.3ba và hỗ trợ độ dài liên kết lên tới 10 km vượt qua cả tiêu chuẩn SMF, G.652. Module CPAK-100GE-LR4 cung cấp tín hiệu dữ liệu tổng hợp 100 Gbps, được truyền qua bốn bước sóng LAN Wavelength-Division Multiplexing (WDM) hoạt động ở tốc độ 25 Gbps trên mỗi làn. Ghép kênh quang và phân kênh của bốn bước sóng được quản lý trong module.
CPAK-100GE-LR4 Module Features and Benefits
|
Requirement |
Cisco CPAK Module Supporting Feature |
|
Accommodate ever-growing bandwidth requirements |
Up to 10 100-Gigabit Ethernet connections deliver as much as 1 Tbps of front-panel bandwidth |
|
Control costs |
Form factor consumes 40% less power than CFP2 and 70% less power than CFP form factors |
|
Real estate conservation |
Minimal footprint allows 20% greater port density and bandwidth than competing products |
|
High availability for business continuity |
Hot-swappable input/output device plugs into a Cisco CPAK-module-based switch, router, or optical platform port |
|
Accommodate a variety of distance and fiber type requirements |
Flexible interface choices |
|
Investment protection, affordable migration to higher bandwidth |
- Support for a “pay-as-you-grow” model - Can plug any Cisco 100-Gbps, 40-Gbps, and 10-Gbps line cards into Cisco CPAK modules (supports the Cisco AnyPort solution) |
|
Manage performance |
Digital optical monitoring (DOM) support |
|
Standards compliance for equipment flexibility and choice |
Interoperability with any IEEE-compliant: 100GBASE-SR4, 100GBASE-LR4, 100GBASE-SR10, 40GBASE-SR4, 10GBASE-SR, 10GBASE-LR |
|
MSA compliant to: 100GBASE CWDM4 |
|
|
Proper functioning and high performance with all Cisco platforms |
Cisco quality identification (ID) feature enables a Cisco platform to identify whether the module is certified and tested by Cisco |
CPAK-100GE-LR4 Specifications
|
Cisco CPAK Module |
Wavelength (nm) |
Cable Type |
Core Size (Microns) |
Modal Bandwidth (MHz*km)a |
Cable Distanceb |
|
CPAK-100GE-LR4 |
1310 |
SMF Duplex |
9-micron core |
- |
10 km |
CPAK-100GE-LR4 có thể sử dụng cho
- ASR 9000 Series Router
- CRS-X Carrier Routing System
- NCS 2000, 4000, and 6000 Series Routers
- Nexus 7000 and 7700 Series Switches
- Cisco ONS Transport Platform
