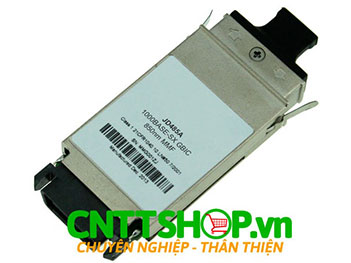

Module quang HP JD485A X120 1G GBIC SC 850nm 550m MMF Transceiver
HPE Part Number |
:
|
List Price |
: $
|
Giá bán |
:
|
Bảo hành |
:
|
Made In |
:
|
Stock |
:
|
Module quang HPE JD485A là module quang cho môi trường truyền dẫn Multi Mode với bước sóng là 850 nm, khoảng cách truyền dẫn tối đa là 550m, sử dụng đầu kết nối SC/SC (2 đầu to). Transceiver JD485A là module quang Multi Mode do vậy để đảm bảo SFP hoạt động được thì mọi thứ phải đồng bộ, tức là cáp quang truyền dẫn, dây nhẩy, dây đuôi chuột (Pigtail) phải là Multi Mode.

Thông số kỹ thuật của module quang HP JD485A
HP X120 SC SX GBIC Transceiver (JD485A)
An SX Gigabit Interface Converter that provides a
full-duplex Gigabit solution for up to 550m over multimode fiber.
|
Ports |
1 SC 1000BASE-SX port |
Connectivity |
Connector type: SC
Wavelength: 850 nm
|
Environment |
Operating temperature: 32°F to 158°F (0°C to 70°C)
Operating relative humidity: 0% to 95%, noncondensing
Nonoperating/Storage temperature: -40°F to 185°F (-40°C to 85°C)
Nonoperating/Storage relative humidity: 0% to 95%, noncondensing
Altitude:up to 10,000 ft. (3 km)
|
Electrical characteristics |
Power consumption typical: 1.1 W
Power consumption maximum: 1.6 W
|
Cabling |
Maximum distance:
• 160MHz*km OM1 = 220m
• 200MHz*km OM2 = 275m
• 500MHz*km OM3 = 550m
Cable length: Up to 550m
Fiber type: Multi Mode
|
Notes |
Conditioning patch cord cables are not supported
For fiber patch cords, use Ultra Physical Contact (UPC) surface termination/polish. Angled Physical Contact (APC) is not recommended |
Services |
Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office. |
