HPE J9152A X132 10GBASE-LRM SFP+ LC 1310nm 300m SMF và MMF Transceiver

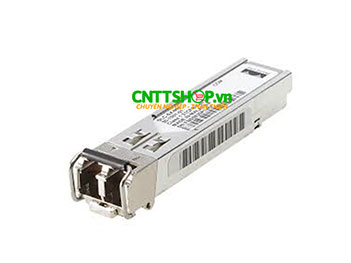

HPE X132 10G SFP+ LC LRM Transceiver (J9152A)

A 10-Gigabit transceiver in SFP+ form-factor that supports the 10-Gigabit LRM standard, for 10-Gigabit connectivity up to 220 m on legacy multimode fiber.

Ports

1 LC 10-GbE port (IEEE 802.3aq Type 10Gbase-LRM); Duplex: full only

Connectivity

Connector type

LC

Wavelength

1310 nm

Physical characteristics

Dimensions

2.19(d) x 0.54(w) x 0.47(h) in. (5.57 x 1.38 x 1.19 cm)

Weight

0.04 lb. (.02 kg)

Transceiver form factor

SFP+

Environment

Operating temperature

32°F to 158°F (0°C to 70°C)

Operating relative humidity

0% to 85%, noncondensing

Nonoperating/Storage temperature

-40°F to 185°F (-40°C to 85°C)

Altitude

up to 10,000 ft. (3 km)

Electrical characteristics

Power consumption typical

0.7 W

Power consumption maximum

1 W

Cabling

Cable type:
62.5/125 µm or 50/125 µm (core/cladding) diameter, graded-index, low metal content, multimode fiber optic, complying with ITU-T G.651 and ISO/IEC 793-2
Type A1b or A1a, respectively (a mode conditioning patch cord may be needed in some multimode fiber installations);
Maximum distance:

• 0.5-220m with 62.5 µm multimode cable @ 160/500 MHz*km
• 0.5-220m with 62.5 µm multimode cable @ 200/500 MHz*km
• 0.5-100m with 50 µm multimode cable @ 400/400 MHz*km
• 0.5-220m with 50 µm multimode cable @ 500/500 MHz*km
• 0.5-220m with 50 µm multimode cable @ 1500/500 MHz*km

Cable length

0.5m to 220m

Fiber type

Multi Mode

NOTES

For OM3 cable (50 µm multimode @ 1500/500 MHz*km), a mode-conditioning patch cord is not required. Other multimode cables may require mode-conditioning patch cords to achieve the maximum distances listed above.
For fiber patch cords, use Ultra Physical Contact (UPC) surface termination/polish. Angled Physical Contact (APC) is not recommended.

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office

• HP SFP+ Transceivers (SR, LRM, LR, and ER)
• Aruba 2920 Switch Series
• Aruba 3800 Switch Series
• HPE OfficeConnect 1850 Switch Series
• HPE OfficeConnect 1950 Switch Series
• Aruba 2530 Switch Series
• Aruba 2620 Switch Series
• Aruba 2930M Switch Series
• Aruba 3810 Switch Series
• Aruba 5400 zl Switch Series
• Aruba 5400R zl2 Switch Series
• Aruba 8400 Switch Series
• HPE Virtual Connect FlexFabric 10Gb/24-Port Module

• HPE Virtual Connect Flex-10/10D Module for c-Class BladeSystem
• HPE Virtual Connect FlexFabric-20/40 F8 Module
• HPE 6120XG Blade Switch
• HPE Ethernet 25Gb 2-port 640FLR-SFP28 Adapter
• HPE Ethernet 25Gb 2-port 640SFP28 Adapter
• HPE MSA P2000 G3 Modular Smart Array Systems
• HPE 3500 and 3500 yl Switch Series
• HP 6600 Switch Series
• HPE 8200 zl Switch Series
• HP TippingPoint Next-Generation Firewall
• HP 2910 al Switch Series
• HP X5000 G2 Network Storage System
• HP StoreEasy 5000 Storage
