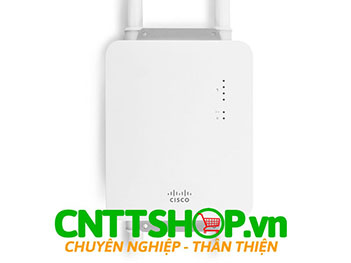

Meraki MR66-HW Cloud-Managed Dual-Radio 802.11n Ruggedized Access Point

WI-FI

Radios

• One 802.11b/g/n and one 802.11a/n radio
• Dual concurrent operation in 2.4 and 5 GHz bands
• Max throughput rate 600 Mbit/s
• 2.4 GHz 26 dBm peak transmission power
• 5 GHz 24 dBm peak transmission power
• Max transmission power is decreased for certain geographies to comply with local regulatory requirements

802.11n Capabilities

• 2 x 2 multiple input, multiple output (MIMO) with two spatial streams
• Maximal ratio combining (MRC)
• Beamforming
• Packet aggregation
• Cyclic shift diversity (CSD) support

Power

• Power over Ethernet: 24 - 57 V (802.3af compatible)
• Power consumption: 10.5 W max
• Power over Ethernet injector sold separately

Mounting

• Mounts to walls and horizontal and vertical poles
• Mounting hardware included

Physical Security

• Security screw included

Environment

• Operating temperature: -4°F to 122°F (-20°C to 50°C)
• IP67 environmental rating

Physical Dimensions

• 10.5” x 7.6” x 2.2” (267mm x 192mm x 57mm)
• Weight: 1.9 lb (862g)

Interfaces

• 1x 100/1000 Base-T Ethernet (RJ45) with 48V DC 802.3af PoE
• Two external N-type antenna connectors

Security

• Integrated policy firewall (Identity Policy Manager)
• Mobile device policies
• Air Marshal: Real-time WIPS (wireless intrusion prevention system) with alarms
• Rogue AP containment
• Teleworker VPN with IPsec
• Guest isolation
• PCI compliance reporting
• WEP, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X
• TKIP and AES encryption
• VLAN tagging (802.1q)

Quality of Service

• Wireless Quality of Service (WMM/802.11e)
• DSCP (802.1p)
• Layer 7 application traffic shaping and firewall

Mobility

• PMK and OKC credential support for fast Layer 2 roaming
• L3 roaming

LED Indicators

• 4 signal strength
• 1 Ethernet connectivity
• 1 power/booting/firmware upgrade status
