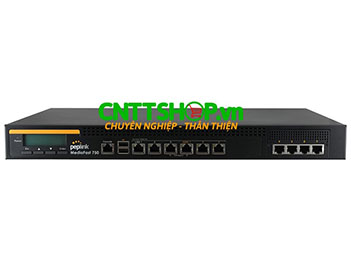

Thiết bị cân bằng tải Load Balancing Peplink Balance with MediaFast 750 MFA-750-B

Model

Balance with MediaFast 750

Product Code

MFA-750-B

Recommended Users

500-2000

Capacity

Disk Drive

1TB SSD

Cache Throughput

2.5Gbps

Router Throughput

1.5Gbps

Ethernet WAN Ports

7

Ethernet LAN Ports

3 (GE)

Wi-Fi Interface

No

USB WAN Modem Port

1

Wi-Fi Data Rates

No

Core Functionality

Load Balancing & Failover

Load Balancing Algorithms

7

Inbound Load Balancing

Video Caching

Content Caching

InControl Cloud Management

Docker Container Support

Drop-In Mode

IPsec VPN (Network-to-Network)

Number of IPsec Tunnels

150

L2TP VPN Server

PPTP VPN Server

Recommended PPTP VPN Users

200

Manage Pepwave AP Series

Maximum Number of AP Supported

250

Manage Remote AP & Multiple Config Profiles

PepVPN

SpeedFusion Hot Failover

Yes

SpeedFusion WAN Smoothing

Yes

SpeedFusion Bandwidth Bonding

Yes

Number of PepVPN/SpeedFusion Peers

300

PepVPN/SpeedFusion Throughput

400Mbps

Advanced QoS Functionality

Bandwidth Usage Monitor

QoS for VoIP and E-Commerce

User Groups Bandwidth Control

Web Blocking

Web Filtering Blacklist

Full

Hardware

Operating Temperature

32° – 104°F
0° – 40°C

Power Consumption

70W

1U Rackmount

High Availability

LAN Bypass

• Peplink MediaFast Firmware
• Docker Containers Support

• Support for PPPoE, Static IP, DHCP
• WAN Link Health Check
  • PING
  • DNS Lookup
  • HTTP
• Bandwidth Allowance Monitor
• IPv6 Support
• USB 4G/3G Modem Support

• DHCP Server for LAN Clients
• Extended DHCP Option
• DHCP Reservation
• Support for Dynamic DNS services
  • changeip.com
  • dyndns.org
  • no-ip.org
  • tzo.com
  • DNS-O-Matic
• DNS Proxy for LAN Clients

• Video Caching
  • ted.com
  • iTunes
  • iTunes U
• Content Caching
  • HTML
  • JavaScript
  • Image
• Flash Application

• Intelligent Failover
• Session Persistence
• Per-Service Load Distribution
• Multiple Algorithms
  • Weighted
  • Enforced
  • Persistence
  • Priority
  • Overflow
  • Least Used
  • Lowest Latency

• DoS Prevention
• Stateful Firewall
• Web Blocking

• SpeedFusion Bandwidth Bonding
  • Site-to-Site VPN
  • Bandwidth Aggregation
  • Intelligent Failover
  • 256-bit AES Encryption
  • Pre-shared Key Authentication
  • Dynamic Routing
  • X.509 certificate support
• PPTP VPN Server
• RADIUS, LDAP Authentication
• IPsec VPN (Network-to-Network)
  • X.509 certificate support

• User Groups
  • Bandwidth Reservation
  • Individual Bandwidth Limit
• Application Prioritization
  • By User Groups
  • SIP, HTTPS, VPN QoS
  • Custom Application QoS

• NAT and IP Forwarding
• Static Routes
• Port Forwarding
• Many to One, One to One NAT
• NAT Pool
• SIP ALG, H.323 ALG
• UPnP, NAT-PMP
• WINS Server
• BGP, OSPFv2 and RIPv2 Support

• Support for Pepwave AP Series
• Auto AP Discovery
• Auto AP Firmware Management
• AP Profile Configuration
• Wi-Fi Usage Statistics

Captive Portal

• Support for Wired and Wireless LAN Clients
• Support RADIUS Authentication
• Support LDAP Authentication
• Time and Usage Quotas on Open Access Mode
• Built-in Customizable Splash Page

Device Management

• Web Administrative Interface
• Command Line Interface
• InControl Cloud Management
• Email Notification
• Active Client & Session Lists
• Bandwidth Usage Statistics
• Syslog Service
• SNMP v1, v2c and v3

DNS

• Support for A, CNAME, NS, MX, PTR, SOA, SRV, TXT records
