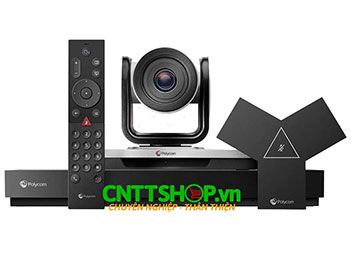

PACKAGE INCLUDES
|
+ G7500 codec
+ EagleEye IV camera or EagleEye Cube USB
+ Poly IP Microphone
+ Bluetooth® remote control
+ Cable bundle |
| VIDEO STANDARDS AND PROTOCOLS |
+ H.264 AVC, H.264 High Profile, H.265
+ H.239
+ H.264 video error concealment |
| VIDEO INPUT |
+ 1x HDCI
+ 1x HDMI
+ 1x USB |
| VIDEO OUT |
+ 2x HDMI
+ Touch display compatible |
| PEOPLE VIDEO RESOLUTION |
+ 4K, 30 fps (TX and RX) from 2048 Kbps
+ 1080p, 60 fps from 1740 Kbps
+ 1080p, 30 fps from 1024 Kbps
+ 720p, 60 fps from 832 Kbps
+ 720p, 30 fps from 512 Kbps
+ 4SIF/4CIF, 60 fps from 512 Kbps
+ 4SIF/4CIF, 30 fps from 128 Kbps
+ SIF (352 x 240), CIF (352 x 288)
+ From 64 kbps
+ QCIF (176 x 144) from 64 kbps
+ w288p from 128 Kbps
+ w448 from 384 Kbps
+ w576p from 512 Kbps |
| CONTENT VIDEO RESOLUTION |
+ Input
- UHD (3840 x 2160)
- HD (1920 x 1080p)
- WSXGA+ (1680 x 1050)
- UXGA (1600 x 1200)
- SXGA (1280 x 1024)
- WXGA (1280 x 768)
- HD (1280 x 720p)
- XGA (1024 x 768)
- SVGA (800 x 600)
+ Output
- UHD (3840 x 2160)
- WUXGA (1920 x 1200)
- HD (1920 x 1080)
- WSXGA+ (1680 x 1050)
- SXGA+ (1400 x 1050)
- SXGA (1280 x 1024)
- HD (1280 x 720)
- XGA (1024 x 768)
+ Content frame rate
- 5–60 fps (up to 4K resolution at 15 fps in call) |
| CONTENT SHARING |
+ Poly Content App support
+ Apple AirPlay
+ Miracast
+ 1x HDMI input |
| AUDIO INPUT |
+ Up to three 1x IP microphone arrays (20 ft pickup range each)
+ Up to 4x Clink2 Microphones or SoundStructure (using Poly Microphone IP Adapter)
+ 1x HDMI
+ 1x 3.5 mm stereo line-in
+ USB support for SHURE microphones |
| AUDIO OUTPUT |
+ 1x HDMI
+ 1x 3.5 mm stereo line-out |
| OTHER INTERFACES |
+ 3x USB 3.0
+ 1x USB-C1
+ 1x RS-232, 8-pin mini-DIN
+ Bluetooth 5.0
+ WiFi 802.11a/b/g/n/ac (MIMO) Multichannel Concurrency |
| AUDIO STANDARDS AND PROTOCOLS |
+ 22 kHz bandwidth with Polycom Siren 22 technology
+ 20 kHz bandwidth with G.719 (M- Mode) and Polycom Siren 22 technology
+ 14 kHz bandwidth with Polycom Siren 14 technology, G.722.1 Annex C
+ 7 kHz bandwidth with G.722, G.722.1
+ 3.4 kHz bandwidth with G.711, G.728, G.729A |
| NETWORK |
+ IPv4
+ IPv6
+ 1x 10/100/1G Ethernet
+ Auto-MDIX
+ 3x 10/100/1G LLN supporting POE+/PSE
+ H.323 and/or SIP up to 6 Mbps
+ Polycom Lost Packet Recovery (LPR) technology
+ Dynamic bandwidth allocation
+ Reconfigurable MTU size
+ RS232 with REST and CLI API support
+ Web Proxy support—Basic, Digest and NTLM
+ Simple Certificate Enrollment Protocol (SCEP) |
| PHYSICAL CHARACTERISTICS |
+ G7500 base box
- 13.75" L x 1.5" H x 5.5" D
- 2.1 lbs |
| ENVIRONMENTAL SPECIFICATION |
+ Operating temperature: 0 to 40 °C
+ Operating humidity: 15 to 80%
+ Non-operating temperature: -40 to 70 °C
+ Non-operating humidity (non-condensing): 5 to 95%
+ Maximum altitude: 10,000 ft |
