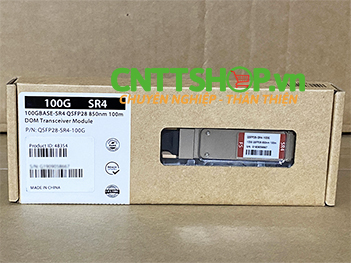

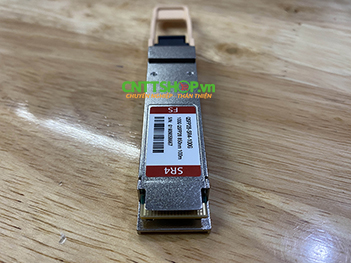

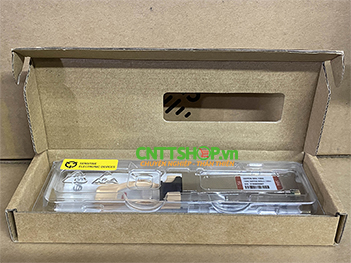

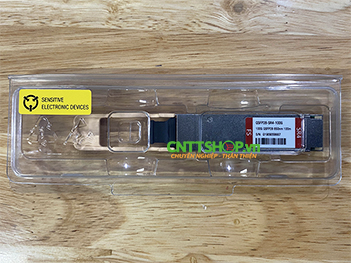

Module quang QSFP28-SR4-100G
| Part Number |
:
|
| List Price |
: $
|
| Giá bán |
:
|
| Bảo hành |
:
|
| Made In |
:
|
| Stock |
:
|
Thông số kỹ thuật QSFP28-SR4-100G:
| Part Number | QSFP28-SR4-100G |
| Form Factor | QSFP28 |
| Wavelength | 850nm |
| Connector | MTP/MPO-12 |
| Transmitter Type | VCSEL 850nm |
| TX Power | -8.4~2.4dBm |
| Powerbudget | 1.9dB |
| Typical Power Consumption | ≤1.8W |
| DDM/DOM | Supported |
| CDR (Clock and Data Recovery) | TX & RX Built-in CDR |
| Protocols | IEEE 802.3bm, QSFP28 MSA, SFF-8665, SFF-8636, RoHS, CPRI, eCPRI |
| Vendor Name | FS |
| Max Data Rate | 103.125Gbps (4x 25.78Gbps) |
| Max Cable Distance | 70m@OM3/100m@OM4 |
| Media | MMF |
| Receiver Type | PIN |
| Receiver Sensitivity | <-10.3dBm |
| Receiver Overload | 2.4dBm |
| Extinction Ratio | ＞3dB |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| FEC Function | Supported |
| Warranty | 5 Years |
Bạn đang cần tư vấn về sản phẩm: QSFP28-SR4-100G ?
