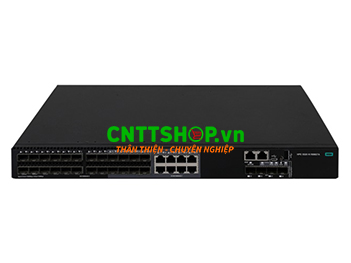

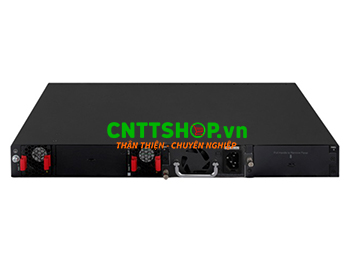

Thiết bị chuyển mạch HPE FlexNetwork 5520HI R8M27A

Specifications

I/O ports and slots

(16) SFP 100/1000 Mbps ports (8) SFP dual-personality ports - 10/100/1000BASE-T RJ-45 or 100/1000BASE-X Combo Ports. Ports 17-24 support MACsec

4 SFP+ 1/10GbE ports

1 port expansion module slot

Additional ports and slots

1 dual-personality (RJ-45 or mini USB) serial console port

1 RJ-45 out-of-band management port

1 USB 2.0

Power supplies

2 power supply slots

1 minimum power supply required (ordered separately)

Fan tray

Airflow direction is Side to Back and Back to Side

Dimensions

17.32(w) x 14.17(d) x 1.72(h) in (43.99 x 36 x 4.37 cm) (1U height)

≤6.6kg shipping weight

Memory and processor

2 GB SDRAM; Packet buffer size: 4 MB, 512 MB flash

Mounting and enclosure

Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included)

Performance

IPv6 Ready Certified

1000 Mb Latency

< 5 μs

10 Gbps Latency

< 3 μs

Throughput

up to 180 Mpps

Routing/Switching capacity

288 Gbps

Routing table size

32768 entries (IPv4), 16384 entries (IPv6)

MAC address table size

up to 64K, recommended 32K

Operating temperature

23°F to 113°F (-5°C to 45°C)

5% to 95%, noncondensing

-40°F to 158°F (-40°C to 70°C)

5% to 95%, noncondensing

Low-speed fan: 53 dB, High-speed fan: 68.9 dB; ISO 7779

Frequency

50/60 Hz

Ranges from 81 BTU/hr to 416 BTU/hr depending on power supply configuration

90 VAC to 264 VAC

-36 VDC to -72 VDC

Current

Maximum power rating

2A

150 W

24W

UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1; FDA 21 CFR

Subchapter J; ROHS Compliance; AS/NZS 60950-1; GB 4943; EAC (EurAsian Conformity Certification)

EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A; EN 61000-4-11:2004; ANSI C63.4-2009; EN 61000-3-3:2008; VCCI V-3/2012.04; EN 61000-3- 2:2006+A1:2009+A2:2009 ; EN 61000-4-3:2006; EN 61000-4-4:2012; EN 61000-4-5:2006;
