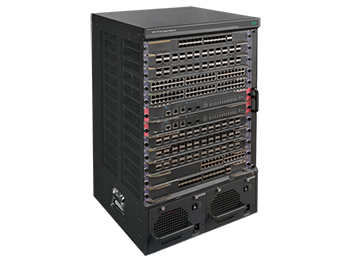

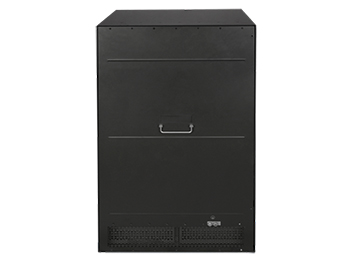

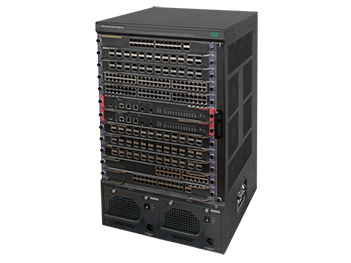

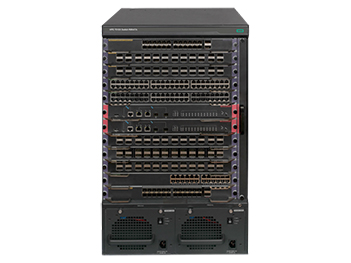

| Datasheet HPE FlexNetwork 7510X PoE Ethernet Switch Chassis (R8N47A) |
| Specifications |
| Included accessories |
1x HPE 7510X Fan Tray Assembly (JD216A) |
| I/O ports and slots |
10x I/O module slots
Supports a maximum of 40x 100 GbE ports or 240x 40GbE ports or 480x 10GbE ports or 480x 1GbE ports or 480 Fiber Ethernet ports, or a combination |
| Additional ports and slots |
2x switch fabric slots |
| Power supplies |
2x power supply slots
1x minimum power supply required (ordered separately) |
| Fan tray |
includes: 1 x JD216A
1 fan tray slot |
| Physical characteristics |
| Dimensions |
17.17 (w) x 16.54 (d) x 27.87 (h) in
43.6 (w) X 42 (d) X 70.8 (h) cm (16 RU height) |
| Weight |
< 95 kg shipping weight |
| Mounting and enclosure |
Mounts in an EIA-standard 19 in. rack or other equipment cabinet (hardware included); Horizontal surface mounting only |
| Reliability |
Availability: 99.999% |
| Environment |
| Operating temperature |
32°F to 113°F (0°C to 45°C) |
| Operating relative humidity |
10% to 95%, noncondensing |
| Non-operating/Storage temperature |
-40°F to 158°F (-40°C to 70°C) |
| Non-operating/Storage relative humidity |
5% to 95%, noncondensing |
| Acoustic |
Low-speed fan: 53.5 dB, High-speed fan: 56.7 dB |
| Electrical characteristics |
| Frequency |
50/60 Hz |
| Voltage |
100 - 120 / 200 - 240 VAC
rated -48 to -60 VDC, rated (depending on power supply chosen) |
| Current |
16/117A |
| Power output |
1400 W |
| Safety |
UL 62368-1; IEC 62368-1; CAN/CSA-C22.2 No. 62368-1; EN 62368-1/A11 |
| Emissions |
VCCI Class A; FCC Part 15 Subpart B, Class A, ICES-003 Class A; EN 55032 CLASS A, CISPR 32 CLASS A; AS/NZS CISPR 32 Class A; EN 61000-3-2, EN 61000-3-3 |
| Management |
IMC - Intelligent Management Center; Command-line interface; Web browser; Out-of-band management (serial RS-232c); SNMP manager; Telnet; Terminal interface (serial RS-232c); Modem interface; IEEE 802.3 Ethernet mib; Ethernet interface mib. Supported IMC versions are: iMC BIMS 7.3 (E0501) iMC EAD 7.3 (E0502). iMC EIA 7.3 (E0503), iMC MVM 7.3 (E0501). iMC NTA 7.3(E0502, iMC PLAT 7.3 (E0705), iMC QoSM 7.3 (E0502), iMC SHM 7.3 (E0502P04), iMC UBA 7.3(E0502) |
