| Datasheet Aruba R8Q71A |
| SPECIFICATIONS |

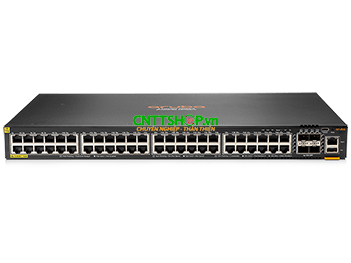

Aruba 6200M 36G 12SR5 Class6 PoE 4SFP+ Switch (R8Q71A) |
| Description |
36x ports 10/100/1000BASE-T Class 6 PoE Ports,
supporting up to 60W per port
12x ports SmartRate 100M/1G/2.5G/5G BaseT
Class 6 PoE ports supporting up to 60W per port
4x 1G/10G SFP ports (2x LRM; 2x LRM/MACSec
256)
Supports PoE Standards IEEE 802.3af, 802.3at,
802.3bt (up to 60W)
1x RJ-45 Console Port
1x USB-C Console Port
1x OOBM
1x USB Type-A Host port |
| Power supplies |
2 field-replaceable, hotswappable power supply slots
1 minimum power supply required (ordered
separately)
Supported PSUs
JL086A
JL087A
Max PoE Power: 1440W |
| Fans |
Switch has two fan tray slots; Switch includes one
fan trays.
- Min 1 fan tray required. Optional second fan tray
ordered separately.
- Fan trays are field replaceable and
hotswappable.
- Each fan tray contains two fans. |
| Physical characteristics |
| Dimensions |
(H) 4.4 cm x
(W) 44.2 cm x
(D) 38.5 cm
(1.73” x 17.4” x 15.2”) |
| Configuration Weight |
6.31 kg (13.91 lbs) |
| Additional Specifications |
| CPU |
Quad Core ARM Cortex™ A72 @ 1.8GHz |
| Memory and Flash |
8 GB DDR4
16 GB eMMC |
| Packet Buffer |
8 MB Packet Buffer Memory |
| Performance |
| Model Switching Capacity |
272 Gbps |
| Model Throughput Capacity |
Up to 130.9Mpps |
Average Latency
(LIFO-64-bytes packets) |
1Gbps: 2.28μSec
10Gbps: 1.46μSec |
| Stack Size |
8 members (with other 24/48p 6200F and 6200M
switches only |
| Max. Stacking Distance |
Up to 10 kms with long range transceivers |
| Stacking Bandwidth |
40 Gbps |
Switched Virtual Interfaces (dual
stack) |
128 |
| IPv4 Host Table (ARP) |
8,000 |
| IPv6 Host Table (ND) |
8,000 |
| IPv4 Unicast Routes |
2,000 |
| IPv6 Unicast Routes |
2,000 |
| MAC Table Capacity |
32,000 |
| IGMP Groups |
1,000 |
| MLD Groups |
1,000 |
| IPv4/IPv6/MAC ACL Entries (ingress) |
1,000/1,000/1,000 |
| IPv4/IPv6/MAC ACL Entries (egress) |
512/256/512 |
| Environment |
| Operating Temperature |
32°F to 113°F (0°C to 45°C) up to 5,000 ft derate
-1°C for every 1000 ft from 5,000 ft to 10,000 ft.
Can support excursion to 131°F (55°C) for short
periods of time. |
| Operating Relative Humidity |
5% to 95% @ 104°F (40°C) non-condensing |
| Non-Operating |
-40°F to 158°F (-40°C to 70°C) up to 15000 ft |
Non-Operating Storage Relative
Humidity |
5% to 90% @ 149°F (65°C) non-condensing |
| Max Operating Altitude |
10,000 feet (3.048 km) Max |
| Max Non-Operating Altitude |
15,000 feet (4.6 km) Max |
| Acoustic |
Sound Power, LWAd = 5.3 Bel
Sound Pressure, LpAm (Bystander) = 37.1 dB |
| Primary Airflow |
Front and side to back |
| Electrical Characteristics |
| Frequency |
50Hz/60Hz |
| AC Voltage |
JL086A PSU: 100V-240V
JL087A PSU: 110V-240V |
| Current |
JL086A PSU: 8A/3.5A
JL087A PSU: 12A/5A |
| 80plus.org Certification |
JL086A PSU: Gold
JL087A PSU: Platinum |
Maximum heat dissipation BTU/hr
and kj/hr info needed |
260 BTU/hr
274 kJ/hr |
| Power Consumption (230 VAC) |
With JL086A PSU:
Idle: 60W
100% Traffic Rate: 76W
With JL087A PSU:
Idle: 59W
100% Traffic Rate: 74W |
