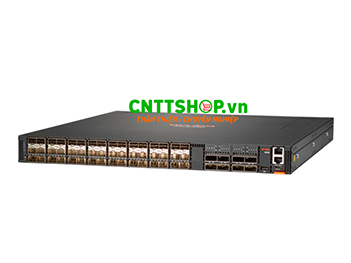

Switch Aruba R9F65A 8325-48Y8C back-to-front
| Part Number |
:
|
| List Price |
: $
|
| Giá bán |
:
|
| Bảo hành |
:
|
| Made In |
:
|
| Stock |
:
|
Thông số kỹ thuật
| Datasheet R9F65A | |
| Specifications | |
| Product Differentiator (long) | 48-port SFP28 (1/10/25 GbE) and 8-port QSFP28 (40/100 GbE) switch with six back-to-front fans and two back-to-front power supplies. |
| Power Consumption Description | Max: 550W |
| Input Voltage | 100-240VAC |
| External I/O Ports | (48) 25G SFP28 ports and (8) 100G QSFP28 ports |
| Routing/switching Capacity | 6.4 Tbs, maximum |
| Switch Fabric Speed | 6.4 Tbps |
| Switching Capacity | High-speed fully distributed architecture Provides 6.4Tbps for switching and 2,000 Mpps for forwarding. All switching and routing are wire-speed to meet the demands of bandwidth-intensive applications today and in the future. |
| Stacking Capabilities | These switches serve the needs of the next generation core and aggregation layer, as well as emerging data center requirements at the Top of Rack (ToR) and End of Row (EoR) |
| Throughput | 1,905 Mpps, maximum |
| Memory and Processor | CPU 2.2GHz Memory, Drive and Flash 16GB RAM, 64GB SSD, 8GB Flash Packet Buffer 32MB |
| Power Supply Name | Field-replaceable, hot-swappable, and up to 2 power supplies. |
| Management Features | Industry-standard CLI with hierarchical structure, SNMP v2c/v3, sFlow (RFC 3176), remote monitoring (RMON) |
| Detailed Product Description | 1 x JL635A base 8325- 48Y8C switch 6 x JL629A Back-to-Front Fan 2 x JL633A Back-to-Front 650W 100-240VAC Power Supply |
| Weight (imperial) | 22.1 lbs |
| Weight (metric) | 10.0 kg |
| Product Dimensions (imperial) | 1.70 x 17.26 x 21.10 in |
| Product Dimensions (metric) | 43.2 x 438.4 x 535.9 mm |
