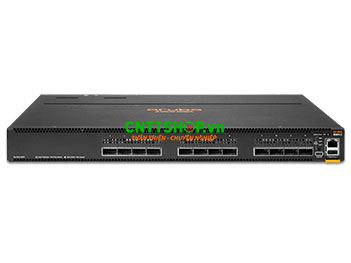

Thiết bị chuyển mạch Aruba R9G15A
Aruba R9G15A là mã switch mới và được hãng Aruba thiết kế chuyên dùng cho data center hoặc lớp core của mạng doanh nghiệp. Với 12 cổng 40GbE/100GbE (QSFP+/ QSFP28), switch cho tốc độ chuyển mạch lên đến 2.4Tbps.
Thông số kỹ thuật Aruba R9G15A
| Datasheet R9G15A | |
| Specifications | |
| I/O ports and slots | 12 ports of 40GbE/100GbE (QSFP+/ QSFP28) (optional 4x10G/25G breakout cables supported) |
| Additional ports and slots | |
| Power Supplies | 2 field-replaceable and hot-swappable power supplies |
| Fans | 5 field-replaceable and hot-swappable fans |
| Management | RJ-45 serial and USB-C console; RJ-45 Ethernet port; USB-Type A |
| Physical characteristics | |
| Physical Dimensions (HxWxD) | 1.73in x 17.4in x 22.0in 44.0mm x 442.5mm x 558.8 |
| Weight | 17.65 lb 8.01 kg |
| Memory and Processor | |
| CPU | 1.8 GHz 4-core 64-bit |
| Memory, Drive and Flash | 16GB RAM, 32GB Flash/Storage |
| Packet Buffer | 32MB |
| Performance | |
| Switching Capacity | 2.4Tbps |
| MAC Address Table Size | 212,992 |
| IPv4 Host Table | 145,780 |
| IPv6 Host Table | 145,780 |
| IPv4 Unicast Routes | 606,977 |
| IPv6 Unicast Routes | 630,784 |
| Maximum Number of ACL Entries Ingress |
IPv4 65,536, IPv6 16,384, MAC 65,536 IPv4 8,192, IPv6 2,048, MAC 8,192 |
| Maximum VLANs | 4,094 |
| IGMP Groups | 7,000 |
| MLD Groups | 7,000 |
| IPv4 Multicast Routes | 7,000 |
| IPv6 Multicast Routes | 7,000 |
| Environment | |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) up to 5000 ft |
| Primary Airflow | Power-to-Port (PwrToPrt) |
| BTU/hr | 1,280 |
| Electrical Characteristics | |
| Frequency | 47-63 Hz |
| AC Voltage Current | 7.1A for 100-127VAC 3.4A for 200-240VAC |
| Power Consumption | Max: 375W Idle: 120W |
