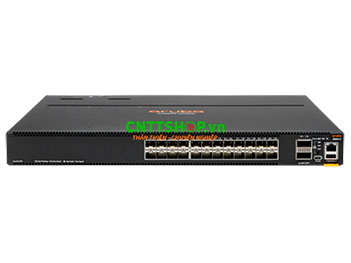

Switch Aruba CX 8360 v2 R9G17A
| Part Number |
:
|
| List Price |
: $
|
| Giá bán |
:
|
| Bảo hành |
:
|
| Made In |
:
|
| Stock |
:
|
Thông số kỹ thuật Aruba R9G17A
| Datasheet R9G17A | |
| Specifications | |
| I/O ports and slots |
24 ports of 1GbE/10GbE (SFP/SFP+) 2 ports of 40GbE/100GbE (QSFP+/ QSFP28) (optional 1GBASE-T SFP and 10GBASE-T SFP+ transceivers and 4x10G/25G breakout cables supported) |
| Additional ports and slots | |
| Power Supplies | 2 field-replaceable and hot-swappable power supplies |
| Fans | 5 field-replaceable and hot-swappable fans |
| Management | RJ-45 serial and USB-C console; RJ-45 Ethernet port; USB-Type A |
| Physical characteristics | |
| Physical Dimensions (HxWxD) | 1.73in x 17.4in x 22.0in 44.0mm x 442.5mm x 558.8 |
| Weight | 17.8 lb 8.07 kg |
| Memory and Processor | |
| CPU | 1.8 GHz 4-core 64-bit |
| Memory, Drive and Flash | 16GB RAM, 32GB Flash/Storage |
| Packet Buffer | 32MB |
| Performance | |
| Switching Capacity | 880Gbps |
| MAC Address Table Size | 212,992 |
| IPv4 Host Table | 145,780 |
| IPv6 Host Table | 145,780 |
| IPv4 Unicast Routes | 606,977 |
| IPv6 Unicast Routes | 630,784 |
| Maximum Number of ACL Entries Ingress |
IPv4 65,536, IPv6 16,384, MAC 65,536 IPv4 8,192, IPv6 2,048, MAC 8,192 |
| Maximum VLANs | 4,094 |
| IGMP Groups | 7,000 |
| MLD Groups | 7,000 |
| IPv4 Multicast Routes | 7,000 |
| IPv6 Multicast Routes | 7,000 |
| Environment | |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) up to 5000 ft |
| Primary Airflow | Power-to-Port (PwrToPrt) |
| BTU/hr | 1,280 |
| Electrical Characteristics | |
| Frequency | 47-63 Hz |
| AC Voltage Current | 7.1A for 100-127VAC 3.4A for 200-240VAC |
| Power Consumption | Max: 375W Idle: 120W |
