| Datasheet switch Aruba R9W87A |
| SPECIFICATIONS |
| |

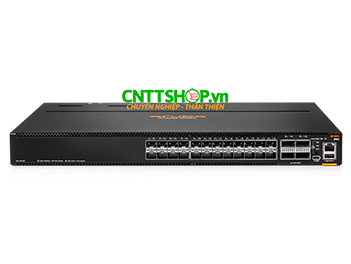

Aruba 8100 24XF4C 3
Fans, 2 AC Power Supplies [R9W87A (Back to Front)] |
| I/O ports and slots |
|
| |
24 ports of 1GbE/10GbE (SFP/SFP+)
4 ports of 40GbE/100GbE (QSFP+/QSFP28) |
| Additional ports and slots |
| Power Supplies |
2 field-replaceable and hot-swappable power supplies1 |
| Fans |
3 field-replaceable and hot-swappable fans2 |
| Management |
RJ-45 serial and USB-C console; RJ-45 Ethernet port; USB-Type A |
| Physical characteristics |
| Physical Dimensions (HxWxD) |
1.73in x 17.4in x 16.0in (44.0mm x 442.5mm x 406.4mm) |
| Full configuration weight |
18.0 lbs (8.16 kg) |
| Memory and Processor |
| CPU |
1.8 GHz 4-core 64-bit |
| Memory and Flash |
16GB RAM, 32GB Flash/Storage |
| Packet Buffer |
32MB |
| Performance |
| Switching Capacity |
1.28 Tbps/952 Mpps |
| MAC Address Table Size |
147,456 |
| IPv4 Host Table |
65,636 |
| IPv6 Host Table |
65,636 |
| IPv4 Unicast Routes |
24,576 |
| IPv6 Unicast Routes |
12,288 |
| Maximum Number of Access Control List (ACL) Entries Ingress |
IPv4 16,384, IPv6 4,096 , MAC 16,384 |
| Maximum Number of Access Control List (ACL) Entries Egress |
IPv4 2,048 , IPv6 512, MAC 2,048 |
| Maximum VLANs |
1,024 |
| IGMP Groups |
4,096 |
| MLD Groups |
4,096 |
| IPv4 Multicast Routes |
4,096 |
| IPv6 Multicast Routes |
4,096 |
| Environment |
| Operating Temperature3 |
32°F to 104°F
(0°C to 40°C) up to 5000 ft |
| Operating Relative Humidity |
15% to 95%, relative humidity at 104°F (40°C), non-condensing |
Non-Operating Temperature
1 Bundles include the 2 power sup |
-40°C to 70°C (-40°F to 158°F) up to 4.6km (15,000 ft.)
plies (2xJL712A in R9W87A, R9W89A, R9W91A, & R9W93A) |
| Non-Operating Storage Relative Humidity |
15% to 95% at 149°F (65°C) non-condensing |
| Max Operating Altitude |
Up to 10,000ft (3.048Km) |
| Max Non-Operating Altitude |
Up to 15,000ft (4.6Km) |
| Primary Airflow |
Back to Front |
| BTU/hr# |
1275 |
| Acoustic4 |
LWAd = 5.9 Bel
LpAm (Bystander) = 41.2 dB |
| Electrical Characteristics |
| Frequency |
47-63 Hz |
| AC Voltage Current |
100-127V – 7.1 A for 100-127VAC
200-240V – 3.4A for 200-240VAC |
| Power Consumption (230 VAC) |
120W Idle Power / 375W Max Power |
