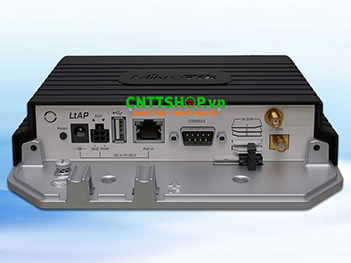

MikroTik LtAP LR8 LTE Kit IoT RBLtAP-2HnD&R11e-LTE&LR8
| Part Number |
:
|
| List Price |
: $
|
| Giá bán |
:
|
| Bảo hành |
:
|
| Made In |
:
|
| Stock |
:
|
Thông số kỹ thuật MikroTik LtAP LR8 LTE Kit
| Datasheet LtAP LR8 LTE Kit | |
| Specification | |
| Architecture |
MMIPS |
| CPU | MT7621A |
| CPU core count |
2 |
| CPU Threads count | 4 |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 128 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Suggested price | $269.00 |
| Power | |
| Number of DC inputs | 3 (PoE-IN, DC jack, MicroUSB) |
| DC jack input Voltage | 12-30 V |
| Automotive input Voltage | 12-30 V |
| Max power consumption | 24 W |
| Max power consumption without attachments | 9 W |
| FAN count | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 12-30 V |
| Mobile | |
| 2G Category | Class12 |
| 2G bands | 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz) |
| 3G Category | R7 (21Mbps Downlinks, 5.76Mbps Uplink) |
| 3G bands | 1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz) |
| LTE Category | 4 (150Mbps Downlink, 50Mbps Uplink) |
| LTE FDD bands | 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) |
| LTE TDD bands | 38 (2600MHz) / 40 (2300MHz) |
| Wireless specifications | |
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 2.5 |
| Wireless 2.4 GHz chip model | AR9382 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
| Port | |
| 10/100 Ethernet ports | 1 Ports |
| Peripherals | |
| Serial console port | RS232 |
| Number of USB ports | 1 Port |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
| Physical parameters | |
| Tested ambient temperature | -40°C to 70°C |
| Other | |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| GNSS standards | GPS |
| Certification & Approvals | |
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP54 |
Bạn đang cần tư vấn về sản phẩm: RBLtAP-2HnD&R11e-LTE&LR8 ?
