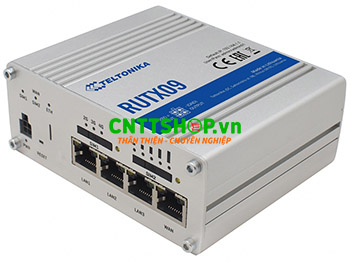

Router Industrial Cellular Teltonika RUTX09
| Part Number |
:
|
| List Price |
: $
|
| Giá bán |
:
|
| Bảo hành |
:
|
| Made In |
:
|
| Stock |
:
|
Teltonika RUTX09 thuộc dòng router công nghiệp có thiết kế rất nhỏ gọn với trọng lượng chỉ 455g, đi kèm với vỏ nhôm nguyên khối chắc chắn. Router có 4 cổng gigabit ethernet, trong đó bao gồm có 1 cổng WAN 10/100/1000 Mbps, 3 cổng LAN 10/100/1000 Mbps. Cùng với thông số phần cứng bao gồm: CPU quad-core ARM cortex A7 717 MHz, RAM 256 MB, Flash storage 256 MB.
Những điểm nổi bật Teltonika RUTX09:
RUTX09 là bộ định tuyến IoT di động LTE-A Cat 6 với giao diện 2 SIM, cho khả năng kết nối internet đa dụng, với tùy chọn kết nối mạng dây hoặc mạng 4G (LTE) cho tốc độ di động lên đến 300 Mbps. Đảm bảo dự phòng mạng, nơi ở xa nguồn internet và cần thông lượng dữ liệu cao.
Có sẵn nhiều tính năng bảo mật như: Firewall, VPN, IPsec, SNMP, PPTP, L2TP, DMVPN, Lọc nội dung để đảm bảo an toàn tối đa. Nó có nhiều khả năng xử lý cho các ứng dụng tùy chỉnh trên hệ thống RutOS dựa trên OpenWrt.
Thông số kỹ thuật router Teltonika RUTX09
| Datasheet Teltonika RUTX09 |
| Specifications |
| Mobile module |
4G (LTE) – Cat 6 up to 300 Mbps, 3G – Up to 42 Mbps |
| SIM switch |
2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail |
| Status |
Signal strength, SINR, RSRP, RSRQ, Bytes sent/received, connected band, carrier aggregation, IMSI, ICCID |
| SMS |
SMS status, SMS configuration, send/read SMS via HTTP POST/GET, Email to SMS, SMS to Email, SMS to HTTP, SMS to SMS, SMS auto reply |
| USSD |
Supports sending and reading Unstructured Supplementary Service Data messages |
| Black/White list |
Operator black/white list |
| Multiple PDN |
Possibility to use different PDNs for multiple network access and services |
| Band management |
Band lock, Used band status display |
| APN |
Auto APN |
| Bridge mode |
Direct connection (bridge) between mobile ISP and device on LAN |
| ETHERNET |
| WAN |
1 x WAN port (can be configured as LAN) 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| LAN |
3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| NETWORK |
| Routing |
Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP) |
| Network protocols |
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet client, SNMP, MQTT, Wake on LAN (WOL) |
| VoIP passthrough support |
H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
| Connection monitoring |
Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Firewall |
Port forwards, traffic rules, custom rules |
| DHCP |
Static and dynamic IP allocation, DHCP Relay, Relayd |
| QoS / Smart Queue Management (SQM) |
Traffic priority queuing by source/destination, service, protocol or port |
| DDNS |
Supported >25 service providers, others can be configured manually |
| Network backup |
VRRP, Mobile and Wired WAN options, each of which can be used as an automatic Failover |
| Load balancing |
Balance Internet traffic over multiple WAN connections |
| Hospot |
Internal/external Radius server, captive portal, built in customizable landing page |
| SSHFS |
Possibility to mount remote file system via SSH protocol |
| SECURITY |
| Authentication |
Pre-shared key, digital certificates, X.509 certificates |
| Firewall |
Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T |
| Attack prevention |
DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
| VLAN |
Port and tag based VLAN separation |
| Mobile quota control |
Custom data limits for both SIM cards |
| WEB filter |
Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only |
| Access control |
Flexible access control of TCP, UDP, ICMP packets, MAC address filter |
| VPN |
| OpenVPN |
Multiple clients and a server can run simultaneously, 12 encryption methods |
| OpenVPN Encryption |
DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC |
| IPsec |
IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256) |
| GRE |
GRE tunnel |
| PPTP, L2TP |
Client/Server instances can run simultaneously, L2TPv3 support |
| Stunnel |
Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code |
| DMVPN |
Method of building scalable IPsec VPNs |
| SSTP |
SSTP client instance support |
| ZeroTier |
ZeroTier VPN client support |
| WireGuard |
WireGuard VPN client and server support |
| MODBUS TCP SLAVE |
| ID filtering |
Respond to one ID in range [1;255] or any |
| Allow remote access |
Allow access through WAN |
| Custom registers |
MODBUS TCP custom register block, which allows to read/write to a file inside the router, and can be used to extend MODBUS TCP slave functionality |
| MODBUS TCP MASTER |
| Supported functions |
01, 02, 03, 04, 05, 06, 15, 16 |
| Supported data formats |
8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII |
| MQTT GATEWAY |
| Gateway |
Allows sending commands and receiving data from MODBUS Master through the MQTT broker |
| DNP3 |
| Supported modes |
TCP Master, DNP3 Outstation |
| DATA TO SERVER |
| Protocols |
HTTP(S), MQTT, Azure MQTT, Kinesis |
| MONITORING & MANAGEMENT |
| WEB UI |
HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log |
| FOTA |
Firmware update from server, automatic notification |
| SSH |
SSH (v1, v2) |
| SMS |
SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to Email, SMS to HTTP, SMS to SMS, SMS autoreply |
| Call |
Reboot, Status, Mobile data on/off, Output on/off |
| TR-069 |
OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem |
| MQTT |
MQTT Broker, MQTT publisher |
| SNMP |
SNMP (v1, v2, v3), SNMP trap |
| JSON-RPC |
Management API over HTTP/HTTPS |
| MODBUS |
MODBUS TCP status/control |
| RMS |
Teltonika Remote Management System (RMS) |
| SYSTEM CHARACTERISTICS |
| CPU |
Quad-core ARM Cortex A7, 717 MHz |
| RAM |
256 MB, DDR3 |
| FLASH storage |
256 MB, SPI Flash |
| FIRMWARE / CONFIGURATION |
| WEB UI |
Update FW from file, check FW on server, configuration profiles, configuration backup |
| FOTA |
Update FW/configuration from server |
| RMS |
Update FW/configuration for multiple devices at once |
| Keep settings |
Update FW without losing current configuration |
| FIRMWARE CUSTOMIZATION |
| Operating system |
RutOS (OpenWrt based Linux OS) |
| Supported languages |
Busybox shell, Lua, C, C++ |
| Development tools |
SDK package with build environment provided |
| LOCATION TRACKING |
| GNSS |
GPS, GLONASS, BeiDou, Galileo and QZSS |
| Coordinates |
GNSS coordinates via WebUI, SMS, TAVL, RMS |
| NMEA |
NMEA 0183 |
| Server software |
Supported server software: TAVL, RMS |
| Geofencing |
Configurable multiple geofence zones |
| USB |
| Data rate |
USB 2.0 |
| Applications |
Samba share, USB-to-serial |
| External devices |
Possibility to connect external HDD, flash drive, additional modem, printer |
| Storage formats |
FAT, FAT32, NTFS |
| INPUT/OUTPUT |
| Input |
1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high |
| Output |
1 x Digital Output, Open collector output, max output 30 V, 300 mA |
| Events |
SMS, Email, RMS |
| I/O juggler |
Allows to set certain I/O conditions to initiate event |
| POWER |
| Connector |
4 pin industrial DC power socket |
| Input voltage range |
9 – 50 VDC, reverse polarity protection, voltage surge/transient protection |
| PoE (passive) |
Passive PoE. Possibility to power up through LAN port, not compatible with IEEE 802.3af, 802.3at and 802.3bt standards |
| Power consumption |
9 W Max |
| PHYSICAL INTERFACES |
| Ethernet |
4 x RJ45 ports, 10/100/1000 Mbps |
| I/Os |
1 x Digital Input, 1 x Digital Output on 4 pin power connector |
| Status LEDs |
3 x WAN type, 2 x Mobile connection type, 5 x Mobile connection strength, 8 x LAN status, 3 x WAN status, 1x Power |
| SIM |
2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders |
| Power |
1 x 4 pin DC connector |
| Antennas |
2 x SMA for LTE, 1 x SMA for GNNS |
| USB |
1 x USB A port for external devices |
| Reset |
Reboot/User default reset/Factory reset button |
| Other |
1 x Grounding screw |
| PHYSICAL SPECIFICATION |
| Casing material |
Aluminium housing with DIN rail mounting option |
| Dimensions (W x H x D) |
115 x 44.2 x 95.1 mm |
| Weight |
455 g |
| Mounting options |
DIN rail, flat surface placement |
| OPERATING ENVIRONMENT |
| Operating temperature |
-40 C to 75 C |
| Operating humidity |
10 % to 90 % non-condensing |
| Ingress Protection Rating |
IP30 |
