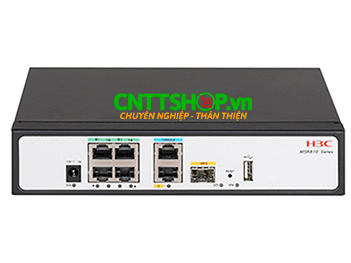

| Datasheet Router H3C RT-MSR610 |
| Item |
MSR610 |
| Forwarding Performance In Service (IMIX) |
200 Mbps |
| CPU |
800MHz |
| Memory |
1 GB |
| Internal Flash |
256 MB |
| External Flash |
NA |
| USB ports |
1 |
| Console ports |
1 |
| WAN ports |
1 × SFP port
1 × GE copper port |
| LAN port |
4 × GE ports (can be configured as WAN interfaces) |
| Max power consumption |
24W |
| Power voltage(adapter) |
External power adapter: 100 VAC to 240 VAC @ 50 Hz/60 Hz |
| Power voltage(device) |
DC 12V 2A |
| Dimensions (W × D × H) |
Dimensions (W × D × H) |
| Operating temperature |
0°C to 40°C (32°F to 104°F) |
| Operating humidity |
- 5% RH to 95% RH, non-condensing
|
| Item |
Specification |
| Specification |
Ethernet, Ethernet II, VLAN (port-based VLAN, guest VLAN), 802.3x, 802.1p, 802.1Q, 802.1X, STP (802.1D), RSTP (802.1w), MSTP (802.1s), PPP, PPPoE client, PPPoE server, and DDR |
| IP services |
Unicast/multicast, TCP, UDP, IP option, IP unnumbered, policy-based routing, NetStream, and sFlow |
| IP application |
Ping, Tracert, ICMP, DHCP server, DHCP relay, DHCP client, DNS client, DNS proxy, DDNS, NTP, and SNTP
Static routing
Dynamic routing: RIPv1/v2, OSPFv2, BGP, IS-IS
Route iteration |
| IPv4 routing |
Policy routing
Equal-cost multi-path routing (ECMP)
Multicast routing: IGMPv1/v2/v3, PIM-DM, PIM-SM, MBGP, MSDP
LR, port-based mirroring, Port Trust Mode, and port priority
Committed access rate (CAR) |
| QoS |
FIFO, WFQ, CBQ
Generic Traffic Shaping (GTS)
Traffic classification |
| Security |
PPPoE client & server, portal, 802.1X
Local authentication, RBAC, RADIUS, TACACS+ Basic Firewall Function, ASPF, ACL, filter, connection limit IKE, IPsec L2TP, NAT/NAPT, PKI, RSA, SSH v1.5/2.0, URPF, mGRE, GRE
ARP attack prevention
SL VPN, GDVPN AES, DES, 3DES, MD5, SHA1
VRRP, VRRPv3
Bandwidth-based load balancing and backup |
| High availability |
Bandwidth-based load balancing and backup
IP address-based load balancing and backup
NQA collaboration with routing, VRRP or interface backup
Couldnet APP management
SNMP v1/v2c/v3, MIB, SYSLOG, RMON |
| Management and maintenance |
BiMS remote management, booting from USB drive
LI, file system, and dual image
HCP, FTP, HTTP, ICMP, UDP public, UDP private, TCP public, TCP private, and SNMP
Console port login, Telnet (VTY) login, SSH login, and FTP login |
