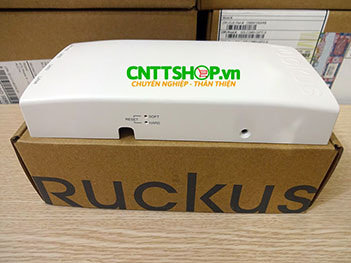

Ruckus 901-H500-WW00 ZoneFlex H500 802.11ac Wireless Wall Switch

WI-FI

Standards

IEEE 802.11a/b/g/n/ac

MIMO Configuration

2 x 2 : 2

Supported Data Rates

802.11n/ac: 6.5Mbps – 173.4Mbps (20MHz)

13.5Mbps – 400Mbps (40MHz)

29.3Mbps – 867Mbps (80MHz)

802.11a: 54, 48, 36, 24, 18, 12, 9 and 6Mbps

802.11b: 11, 5.5, 2 and 1 Mbps

802.11g: 54, 48, 36, 24, 18, 12, 9 and 6 Mbps

RF Power Output*

(Aggregate)

2.4 GHz: 19 dBm

5.0 GHz: 22 dBm

Channelization

20MHz, 40MHz, 80MHz

Frequency Band

IEEE 802.11 b/g/n: 2.4 – 2.484 GHz

IEEE 802.11a/ac: 5.15 – 5.25 GHz; 5.25 – 5.35 GHz;

5.47 – 5.725 GHz; 5.725 – 5.85 GHz

Operating Channels

US/Canada: 1-11

EU (ETSI X30): 1-13

Channel availability is country dependent according to the local regulations

5 GHz Channels - country dependent

5GHz UNII-1 (2014)

BSSID

8 BSSIDs per radio

Power Save

Supported

Wireless Security

WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i

Authentication via 802.1X with ZoneDirector, local authentication database, support for RADIUS, LDAP, and Active Directory

RF

Minimum RX Sensitivity

-99dBm

Beamflex* SINR TX Gain

2dB

Beamflex* SINR RX Gain

3-5dB (PD-MRC)

Interference Mitigation

Up to 5dB

PERFORMANCE AND CAPACITY

Concurrent users

100

Voice Calls

30

MANAGEMENT

Deployment Options

Standalone (individually managed)

Managed by ZoneDirector 1200, 3000, and 5000 (9.10 & above)

Managed by vSCG and SmartZone 100 (3.0.3 & above)

Managed by FlexMaster

Configuration

Web User Interface (HTTP/S)

CLI (Telnet/SSH), SNMP v1, 2, 3

PHYSICAL CHARACTERISTICS

Power

POE 802.3af/802.3at

48VDC input

Physical Size

90 mm x 171 mm, 29 mm

Weight

210 g (.46 Lbs.)

282 g (.62 Lbs.) with bracket

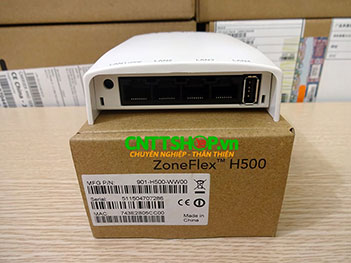

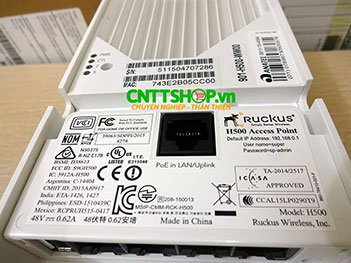

Data Ports

4 10/100 Mbps Base-T 802.3, 802.3u, RJ-45

Ethernet access ports.

1 10/100/1000Mpbs Base-T 802.3, 802.3u, 802.3ab,

802.3af (802.3at class 4) PoE input, RJ-45

USB 2.0 (max power 0.5 w)

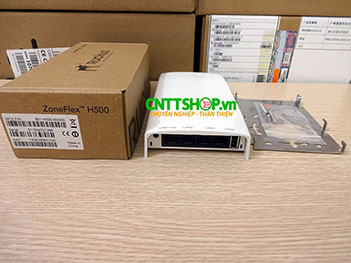

Mounting Options

Electrical wallbox; Standard US and EU single gang wall jack

Optional bracket for offset & wall mount

Environmental Conditions

Operating Temperature: 32°F (0°C) - 104°F (40°C)

Operating Humidity: 15% - 95% non-condensing

Power Draw

Idle: 5W

Typical: 6.5W

Peak: 9.5W

NETWORK ARCHITECTURE

IP

IPv4, IPv6, dual-stack

VLANs

802.1Q (1 per BSSID or dynamic, per user based on RADIUS)

Port-based

802.1X For Ethernet Ports

Authenticator

Supplicant

Tunneling

L2TP, PPPoE
