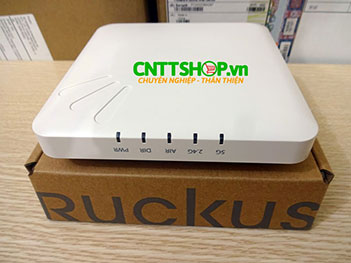

Ruckus 901-R300-WW02 ZoneFlex R300 Indoor dual-band 802.11n Wi-Fi Access Point.

WI-FI

Wi-Fi Standards

· IEEE 802.11a/b/g/n/ac Wave 2

Supported Rates

· 802.11ac: 6.5 to 867Mbps (MCS0 to MCS9,

NSS = 1 to 2 for VHT20/40/80)

· 802.11n: 6.5 Mbps to 300Mbps (MCS0 to MCS15)

· 802.11a/g: 54, 48, 36, 24, 18, 12, 9, 6Mbps

· 802.11b: 11, 5.5, 2 and 1 Mbps

Supported Channels

· 2.4GHz: 1-13

· 5GHz: 36-64, 100-144, 149-165

MIMO

· 2x2 SU-MIMO

Spatial Streams

· 2 SU-MIMO

Channelization

· 20, 40MHz

Security

· WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i, Dynamic PSK

· WIPS/WIDS

Other Wi-Fi Features

· WMM, Power Save, Tx Beamforming, LDPC, STBC, 802.11r/k/v

· Hotspot

· Hotspot 2.0

· Captive Portal

· WISPr

RF

Antenna Type

· BeamFlex adaptive antennas with polarization diversity

· Adaptive antenna that provides up to 64 unique antenna patterns per band

Antenna Gain (max)

· 3dBi for both 2.4GHz & 5GHz

Peak Transmit Power (aggregate across MIMO chains)

· 2.4GHz: 26dBm

· 5GHz: 24dBm

Minimum Receive Sensitivity1

· -101dBm

Frequency Bands

· ISM 2.4-2.484GHz

· U-NII-1 5.15-5.25GHz

· U-NII-2A 5.25-5.35GHz

· U-NII-2C 5.47-5.725GHz

· U-NII-3 5.725-5.85GHz

PERFORMANCE AND CAPACITY

Peak PHY Rates

· 2.4GHz: 300Mbps

· 5GHz: 300Mbps

Client Capacity

· Up to 256 clients per AP

SSID

· Up to 16 per AP

NETWORKING

Controller Platform Support

· SmartZone

· ZoneDirector

· Standalone

IP

· IPv4, IPv6

VLAN

· 802.1Q (1 per BSSID or dynamic per use based on RADIUS)

· VLAN Pooling

· Port-based

802.1x

· Authenticator & Supplicant

Tunnel

· L2TP, GRE, Soft-GRE

Gateway and Routing

· NAT/DHCP

Policy Management Tools

· Access Control Lists

· Device Fingerprinting

· Rate Limiting

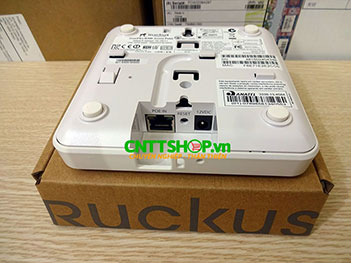

PHYSICAL INTERFACES

Ethernet

· 1 x 2GbE port with PoE

PHYSICAL CHARACTERISTICS

Physical Size

· 13(L) x 13(W) x 2.8(H) cm

· 5.1(L) x 5.1(W) x 1.1(H) in

Weight

· 215g

· 7.58oz

Mounting

· Wall, Drop ceiling, Desk

· Secure bracket (sold separately)

Physical Security

· Hidden latching mechanism

· Kensington lock

· T-bar Torx

Operating Temperature

· 0ºC (32ºF) to 40ºC (104ºF)

Operating Humidity

· Up to 95%, non-condensing

CERTIFICATIONS AND COMPLIANCE

Wi-Fi Alliance3

· Wi-Fi CERTIFIED™ a, b, g, n, ac

· Passpoint®, Vantage

Standards Compliance4

· EN 60950-1 Safety

· EN 60601-1-2 Medical

· EN 61000-4-2/3/5 Immunity

· EN 50121-1 Railway EMC

· EN 50121-4 Railway Immunity

· IEC 61373 Railway Shock & Vibration

· UL 2043 Plenum

· EN 62311 Human Safety/RF Exposure

· WEEE & RoHS

· ISTA 2A Transportation

Power Supply

Maximum Power Consumption

802.3af

· 9.7W

DC input 12 VDC 10A

· 8.4W

SKU

Description

902-0118-0000

· Secure Mounting Bracket for ZoneFlex R300. Mounts to hard wall/ceiling, pole, and truss. Includes security screws (Torx & Phillips)
