| WI-FI |
| Wi-Fi Standards |
IEEE 802.11a/b/g/n/ac |
| Supported Rates |
• 802.11ac: 6.5 to 867Mbps (MCS0 to MCS9, NSS = 1 to 2 for VHT20/40/80)
• 802.11n: 6.5 Mbps to 300Mbps (MCS0 to MCS15)
• 802.11a/g: 54, 48, 36, 24, 18, 12, 9 , 6Mbps
• 802.11b: 11, 5.5, 2 and 1 Mbps |
| Supported Channels |
• 2.4GHz: 1-13
• 5GHz: 36-64, 100-144, 149-165 |
| MIMO |
2x2 SU-MIMO |
| Spatial Streams |
2 SU-MIMO |
| Channelization |
20, 40, 80MHz |
| Security |
• WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i, Dynamic PSK
• WIPS/WIDS |
| Other Wi-Fi Features |
• WMM, Power Save, TxBF, LDPC, STBC, 802.11r/k/v
• Hotspot
• Hotspot 2.0
• Captive Portal
• WISPr |
| RF |
| Antenna Type |
• BeamFlex+ adaptive antennas with polarization diversity
• Adaptive antenna that provides up 512 unique antenna patterns per band |
| Antenna Gain (max) |
• 2.4GHz: 4dBi
• 5GHz: 4dBi |
| Peak Transmit Power (aggregate across MIMO chains) |
• 2.4GHz: 22dBm
• 5GHz: 22dBm |
| Minimum Receive Sensitivity |
-100dBm |
| Frequency Bands |
• ISM 2.4-2.484GHz
• U-NII-1 5.15-5.25GHz
• U-NII-2A 5.25-5.35GHz
• U-NII-2C 5.47-5.725GHz
• U-NII-3 5.725-5.85GHz |
| PERFORMANCE AND CAPACITY |
| Peak PHY Rates |
• 2.4GHz: 300Mbps
• 5GHz: 867Mbps |
| Client Capacity |
Up to 512 clients per AP |
| SSID |
Up to 43 per AP |
| RUCKUS RADIO MANAGEMENT |
| Antenna Optimization |
• BeamFlex+
• Polarization Diversity with Maximal Ratio Combining (PD-MRC) |
| Wi-Fi Channel Management |
• ChannelFly
• Background Scan Based |
| Client Density Management |
• Adaptive Band Balancing
• Client Load Balancing
• Airtime Fairness
• Airtime-based WLAN Prioritization |
| SmartCast Quality of Service |
• QoS-based scheduling
• Directed Multicast
• L2/L3/L4 ACLs |
| Mobility |
SmartRoam |
| Diagnostic Tools |
• Spectrum Analysis
• SpeedFlex |
| NETWORKING |
| Controller Platform Support |
• SmartZone
• ZoneDirector
• Cloud Wi-Fi
• Unleashed
• Standalone |
| Mesh |
SmartMesh™ wireless meshing technology, Self-healing Mesh |
| IP |
IPv4, IPv6 |
| VLAN |
• 802.1Q (1 per BSSID or dynamic per use based on RADIUS)
• VLAN Pooling
• Port-based |
| 802.1x |
Authenticator & Supplicant |
| Tunnel |
L2TP, GRE, Soft-GRE |
| Gateway |
NAT/DHCP |
| Policy Management Tools |
• Application Recognition and Control
• Access Control Lists
• Device Fingerprinting
• Rate Limiting |

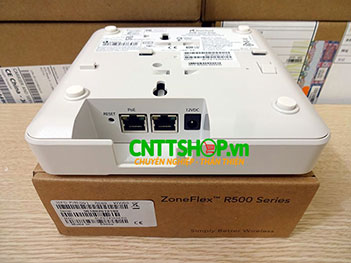

| PHYSICAL INTERFACES |
| Ethernet |
2 x 1GbE ports, RJ-45 |
| USB |
1 USB 2.0 port, Type A |
| PHYSICAL CHARACTERISTICS |
| Physical Size |
• 15.8(L) x 15.8(W) x 4(H) cm
• 6.2(L) x 6.2(W) x 1.57(H) in |
| Weight |
350g (0.77oz) |
| Mounting |
• Wall, Acoustic ceiling, Desk
• Secure Bracket (sold separately) |
| Physical Security |
• Hidden latching mechanism
• Kensington lock
• T-bar Torx
• Bracket (902-0108-0000) Torx screw & padlock (sold separately) |
| Operating Temperature |
0ºC (32ºF) to 50ºC (122ºF) |
| Operating Humidity |
Up to 95%, non-condensing |
| CERTIFICATIONS AND COMPLIANCE |
| Wi-Fi Alliance |
• Wi-Fi CERTIFIED™ a, b, g, n, ac
• Passpoint®
• Vantage |
| Standards Compliance |
• EN 60950-1 Safety
• EN 60601-1-2 Medical
• EN 61000-4-2/3/5 Immunity
• EN 50121-1 Railway EMC
• EN 50121-4 Railway Immunity
• IEC 61373 Railway Shock & Vibration
• EN 62311 Human Safety/RF Exposure
• UL 2043 Plenum
• WEEE & RoHS
• ISTA 2A Transportation |
