Router công nghiệp 4G di động Teltonika RUTXR1
| Part Number |
:
|
| List Price |
: $
|
| Giá bán |
:
|
| Bảo hành |
:
|
| Made In |
:
|
| Stock |
:
|
Router công nghiệp 4G Teltonika RUTXR1 có 1 cổng WAN 1GE, 4 cổng LAN 1GE, 1 cổng WAN SFP/GE Combo. Ngoài ra, router còn có 2 khe Sim 4G (LTE) Cat 6 up to 300 Mbps. Điều làm cho sản phẩm này nổi bật so với các sản phẩm còn lại của Teltonika Networks là SFP WAN và các cổng giao diện điều khiển chuyên dụng.
RUTXR1 là bộ định tuyến hỗ trợ mạng LTE Cat6 với nguồn điện dự phòng và nhiều giao diện WAN, có thể đặt thuận tiện trong tủ máy chủ. Router được trang bị SIM kép, USB và WIFI băng tần kép Wave-2 802.11ac tốc độ lên đến 867 Mbps với 150 thiết bị kết nối đồng thời. Nhưng điều làm cho sản phẩm này nổi bật so với các sản phẩm khác của Teltonika là nó trang bị cổng SFP WAN cho các kết nối tốc độ cao và đi xa.
Với ưu điểm của Router RUTXR1 là có thể sử dụng nhiều loại kết nối như: kết nối có dây Ethernet hoặc cáp quang, cùng với Internet di động 4G với SIM kép để dự phòng. Kết hợp các tùy chọn này cho phép sử dụng 3 nhà cung cấp internet khác nhau và giảm thiểu đáng kể các sự cố mạng đến từ các nhà mạng.
RUTXR1 có thể được sử dụng để kết nối nhiều thiết bị khác nhau trong môi trường văn phòng, từ máy tính xách tay và máy tính để bàn đến máy in và thiết bị phòng họp (như công cụ gọi điện video và máy tính bảng). Router có nhiều cổng Gigabit Ethernet, nó có thể cung cấp internet cáp cho ít nhất 5 thiết bị khác nhau. Hơn nữa, nó hỗ trợ hơn 100 kết nối wifi đồng thời cùng lúc nên hoàn toàn có thể phục vụ cho văn phòng vừa và nhỏ.
Thông số kỹ thuật router Teltonika RUTXR1
| Datasheet router Teltonika RUTXR1 |
| Specifications |
| Mobile module |
4G (LTE) – Cat 6 up to 300 Mbps, 3G – up to 42 Mbps |
| SIM switch |
2 SIM cards, auto switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail |
| Status |
Signal strength, SINR, RSRP, RSRQ, Bytes sent/received, connected band, carrier aggregation, IMSI, ICCID |
| SMS |
SMS status, SMS configuration, send/read SMS via HTTP POST/GET, Email to SMS, SMS to Email, SMS to HTTP, SMS to SMS, SMS auto replay |
| USSD |
Supports sending and reading Unstructured Supplementary Service Data messages |
| Black/White list |
Operator black/white list |
| Multiple PDN |
Possibility to use different PDNs for multiple network access and services |
| Band management |
Band lock, Used band status display |
| APN |
Auto APN |
| Bridge mode |
Direct connection (bridge) between mobile ISP and device on LAN |
| WIRELESS |
| Wireless mode |
802.11b/g/n/ac Wave 2 (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA) |
| WiFi security |
WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation |
| ESSID |
ESSID stealth mode |
| WiFi users |
up to 150 simultaneous connections |
| Wireless Hotspot |
Captive portal (Hotspot), internal/external Radius server, built in customizable landing page |
| ETHERNET |
| WAN |
1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| Fiber |
1 x SFP port (cannot work simultaneously with Ethernet WAN port) |
| LAN |
4 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| CONSOLE |
| Console |
RS-232 (RJ45) console port for router configuration and debuging |
| NETWORK |
| Routing |
Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP) |
| Network protocols |
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, UPNP, SSH, DHCP, Telnet, SNMP, MQTT, Wake on LAN (WOL), DLNA |
| VoIP passthrough support |
H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
| Connection monitoring |
Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Firewall |
Port forwards, traffic rules, custom rules |
| DHCP |
Static and dynamic IP allocation, DHCP Relay, Relayd |
| QoS / Smart Queue Management (SQM) |
Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e |
| DDNS |
Supported >25 service providers, others can be configured manually |
| Network backup |
VRRP, Mobile, Wired, Fiber and WiFi WAN options, each of which can be used as an automatic Failover |
| Load balancing |
Balance Internet traffic over multiple WAN connections |
| SSHFS |
Possibility to mount remote file system via SSH protocol |
| SECURITY |
| Authentication |
Pre-shared key, digital certificates, X.509 certificates |
| Firewall |
Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T |
| Attack prevention |
DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
| VLAN |
Port and tag based VLAN separation |
| Mobile quota control |
Custom data limits for both SIM cards |
| WEB filter |
Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only |
| Access control |
Flexible access control of TCP, UDP, ICMP packets, MAC address filter |
| VPN |
| OpenVPN |
Multiple clients and a server can run simultaneously, 12 encryption methods |
| OpenVPN Encryption |
DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC |
| IPsec |
IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256) |
| GRE |
GRE tunnel |
| PPTP, L2TP |
Client/Server instances can run simultaneously, L2TPv3 support |
| Stunnel |
Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code |
| DMVPN |
Method of building scalable IPsec VPNs |
| SSTP |
SSTP client instance support |
| Zerotier |
Zerotier VPN client support |
| WireGuard |
WireGuard VPN client and server support |
| MODBUS |
| MODBUS TCP SLAVE |
| ID filtering |
Respond to one ID in range [1;255] or any |
| Allow remote access |
Allow access through WAN |
| Custom registers |
Modbus TCP custom register block, which allows to read/write to a file inside the router, and can be used to extend Modbus TCP slave functionality |
| MODBUS TCP MASTER |
| Supported functions |
01, 02, 03, 04, 05, 06, 15, 16 |
| Supported data formats |
8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC) |
| MODBUS RTU MASTER (RS232) |
| Supported baud rates |
From 300 to 115200 |
| Supported functions |
01, 02, 03, 04, 05 (only for alarms), 06 (only for alarms), 15 (only for alarms), 16 (only for alarms) |
| Number of data bits |
From 5 to 8 |
| Number of stop bits |
1 or 2 |
| Parity |
None, Even, Odd |
| Flow |
None, RTS/CTS, Xon/Xoff |
| MQTT GATEWAY |
| Gateway |
Allows sending commands and receiving data from MODBUS Master through the MQTT broker |
| DNP3 |
| Supported modes |
TCP Master, DNP3 Outstation |
| DATA TO SERVER |
| Protocols |
HTTP(S), MQTT, Azure MQTT, Kinesis |
| MONITORING & MANAGEMENT |
| WEB UI |
HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log |
| FOTA |
Firmware update from server, automatic notification |
| SSH |
SSH (v1, v2) |
| SMS |
SMS status, SMS configuration, send/read SMS via HTTP POST/GET |
| Call |
Reboot, Status, Mobile data on/off, Output on/off |
| TR-069 |
OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem |
| MQTT |
MQTT Broker, MQTT publisher |
| SNMP |
SNMP (v1, v2, v3), SNMP Trap |
| JSON-RPC |
Management API over HTTP/HTTPS |
| Modbus |
Modbus TCP status/control |
| RMS |
Teltonika Remote Management Systems (RMS) |
| IoT PLATFORMS |
| Clouds of things |
Allows monitoring of: Device data, Mobile data, Network info, Availability |
| ThingWorx |
Allows monitoring of: WAN Type, WAN IP Mobile Operator Name, Mobile Signal Strength, Mobile Network Type |
| Cumulocity |
Allows monitoring of: Device Model, Revision and Serial Number, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength, WAN Type and IP |
| Azure IoT Hub |
Can send device IP, Number of bytes send/received/ 3G connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, Sim State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type, Temperature, PIN count to Azure IoT Hub server |
| SYSTEM CHARACTERISTICS |
| CPU |
Quad-core ARM Cortex A7, 717 MHz |
| RAM |
256 MB, DDR3 |
| FLASH storage |
256 MB, SPI Flash |
| FIRMWARE/CONFIGURATION |
| WEB UI |
Update FW from file, check FW on server, configuration profiles, configuration backup |
| FOTA |
Update FW/configuration from server |
| RMS |
Update FW/configuration for multiple devices at once |
| Keep settings |
Update FW without losing current configuration |
| FIRMWARE CUSTOMIZATION |
| Operating system |
RutOS (OpenWrt based Linux OS) |
| Supported languages |
Busybox shell, Lua, C, C++ |
| Development tools |
SDK package with build environment provided |
| SERIAL |
| RS232 |
RJ45 connector, full RS232 (with RTS, CTS) |
| Serial functions |
Console (active by default), Modbus gateway, Modbus RTU master, Serial OverIP, Modem mode (Full or partial), Ntrip client |
| USB |
| Data rate |
USB 2.0 |
| Applications |
Samba share, USB-to-serial |
| External devices |
Possibility to connect external HDD, flash drive, additional modem, printer |
| Storage formats |
FAT, FAT32, NTFS |
| POWER |
| Connector |
2 x 4 pin industrial DC power sockets for main and redundancy power sources |
| Input voltage range |
9 – 50 VDC, reverse polarity protection, voltage surge/transient protection |
| Power consumption |
idle: <3W, max: 18W |

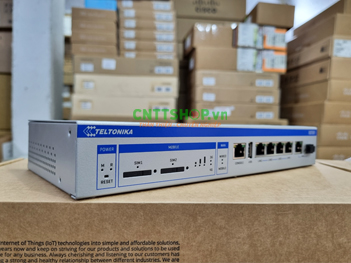

| PHYSICAL INTERFACES |
| Ethernet |
5 x RJ45 ports, 10/100/1000 Mbps |
| Console |
1 x RJ45, RS232 communication |
| Fiber |
1 x SFP port |
| Status LEDs |
2 x WAN type, 2 x Mobile connection type, 3 x Mobile signal strength, 2 x active SIM, 10 x Ethernet status, 2 x Console status, 2 x Power |

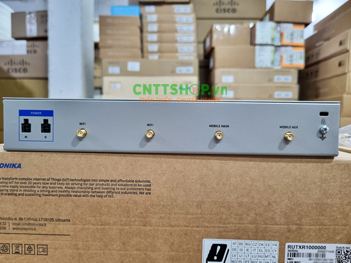

| SIM |
2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders |
| Power |
2 x 4 pin DC connector |
| Antennas |
2 x SMA for LTE, 2 x RP-SMA for WiFi |
| USB |
1 x USB A port for external devices |
| Reset |
Reboot/User default reset/Factory reset button |
| Other |
1 x Grounding screw, 1 x lock |
| PHYSICAL SPECIFICATION |
| Casing material |
Full steel housing |
| Dimensions (W x H x D) |
272 x 42.6 x 122.6 mm |
| Weight |
1050 g |
| Mounting options |
Rack mounting, flat surface placement |
| OPERATING ENVIRONMENT |
| Operating temperature |
-40°C to +75°C |
| Operating humidity |
10 % to 90 % non-condensing |
