| DS-6600B Series Switches |
| System Architecture |
Technical Specification |
| Fibre Channel Ports |

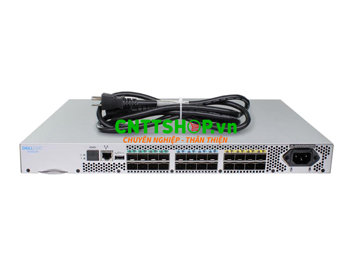

The DS-6610B-L base chassis models includes eight active 32Gb/s capable ports that are populated with eight
16Gb/s SFPs or eight 32Gb/s SFPs. The 8-port port-on-demand (PoD) models allow the switch to support an
additional 16 ports reaching a maximum of 24 ports. The DS-6610B Enterprise models come fully populated
with 24 16Gb/s or 32Gb/s SFPs and include the Enterprise Package. |
| Performance |
32Gb/s SFPs can operate at 32, 16 or 8Gb/s; 16Gb/s SFPs will operate at 16, 8 and 4Gb/s |
| Frame Buffers |
2K dynamically allocated |
| Aggregate Bandwidth |
768 Gb/s |
| Class of service |
Class 2, Class 3, Class F (Inter-switch Frames) |
| Port types |
DS-6610B – F_Port, E_Port, M_Port, D_Port (ClearLink Diagnostics Port) on 24 SFP+ ports; Access Gateway
mode: F_Port and NPIV-enabled N_Port |
| Fabric services |
BB Credit Recovery; Brocade Advanced Zoning (Default Zoning, Port/WWN Zoning, Peer Zoning);
Congestion Signaling; Dynamic Path Selection (DPS); Extended Fabrics; Fabric Performance Impact
Notification (FPIN); Fabric Vision; FDMI; FICON CUP (DS-6620B only); Flow Vision; F_Port Trunking; FSPF;
Integrated Routing; ISL Trunking; Management Server; Name Server; NPIV; NTP v3; Port
Decommission/Fencing; QoS; Registered State Change Notification (RSCN); Target-Driven Zoning; Traffic
Optimizer; Virtual Fabrics (Logical Switch and Logical Fabric; DS-6610B requires FOS 9.1.x and higher); VMID
and AppServer.
Note: Some fabric services do not apply or are unavailable in Access Gateway mode. |
| Hot swappable components |
DS-6610B-L – The DS-6610B-L has an embedded power supply / fan and it is non-replaceable. The entire
switch is a Field Replaceable Unit (FRU). The only FRU’s on the DS-6610B-L are the SFP’s. The DS-6610BL will support in-service firmware upgrades. |
| Installation options |
All models can be installed in a standard, customer-supplied, 19-inch Electronic Industries Alliance (EIA) rack |
| Scalability |
Refer to Dell E-Lab Navigator smart phone App downloadable from the Apple or Google Store or E-Lab
Navigator found at this link: https://www.delltechnologies.com/en-us/products/interoperability/elab.htm |
| Maximum frame size |
2,112-byte payload |
| Management |
Technical Specification |
Minimum Fabric Operating System
(FOS) |
FOS 9.0.1 or higher |
| Management |
Advanced Web Tools. SSH, Auditing, Syslog NTP v3, CLI, SMI-S compliant; REST API, HTTP, SNMP v1/v3
(FE MIB, FC Management MIB) |
| SANnav Management |
SANnav Management Portal and SANnav Global View empower IT administrators to be more efficient and
productive by providing comprehensive visibility into the SAN environment. SANnav only supports open
systems and requires FOS v7.4 or higher. |
| Management access |
10/100/1000 Mb/s Ethernet (RJ-45), In-band over Fibre Channel, Serial port (RJ-45), and one USB port |
| Firmware upgrades |
Non-disruptive download and activation |
| Security |
DH-CHAP (between switches and end devices), FCAP switch authentication; HTTPS, IPsec, IP filtering, LDAP
with IPv6, Open LDAR, Port Binding, RADIUS, TACACS+, user-defined Role-based Access Control (RBAC),
Secure Copy (SCP), Secure RPC, Secure Syslog, SSH v2, SSL, Switch Binding, Trusted Switch |
| Diagnostics |
ClearLink optics and cable diagnostics, including electrical/optical loopback, link traffic/latency/distance, flow
mirroring; built-in flow generator, POST and embedded online/offline diagnostics, including environmental
monitoring, FC ping and Pathinfo (FC traceroute), frame viewer, non-disruptive daemon restart, optics health
monitoring, power monitoring, RAS trace logging, and Rolling Reboot Detection (RRD) |
| Call home |
Call home integration with SANnav and Connectrix Manager Converged Network Edition |
| Optional license-key features |
Enterprise Package - includes Fabric Vision, Extended Fabric and ISL Trunking
Mainframe License - includes ISL Trunking, Fabric Vision and FICON Control Unit Port (CUP)
Integrated Routing – allows ports to be configured as EX-Ports supporting FC-FC routing
Note: “-EP” DS-6600B models include the Enterprise Package |
| Physical Specifications |
Technical Specification |
| Enclosure |

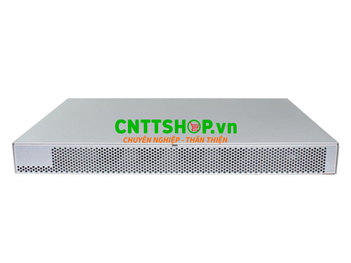

DS-6610B-L - chassis supports rear-to-front (RTF) airflow |
| Dimension and weight |
DS-6610B
Width: 428.80 mm (16.88 in.) Height: 42.90 mm (1.69 in.) Depth: 306.60 mm (12.07 in.)
Weight: 5.75 kg (12.67 lb.) |
| Power Requirements |
Technical Specification |
| Power supply |
DS-6610B-L - Switch chassis includes one fixed power supply. Note: Although the DS-6610B ships with a
single power supply, two power cords are Included. Only one power cord is required. |
| AC Input |
DS-6610B-L – 90 V to 264 V ~2.2A |
| Input line frequency |
47-63 Hz |
| Power consumption |
DS-6610B-L - 77 WATTS with all 24-ports populated |
| Environment |
Technical Specification |
| Operating environment |
Temperature: 0°C to 40°C/32°F to 104°F
Humidity: 10% to 85% (non-condensing) |
| Non-operating environment |
Temperature: −25°C to 70°C/−13°F to 158°F
Humidity: 10% to 90% (non-condensing) |
| Operating altitude |
Up to 3000m (9,842 ft) |
| Storage altitude |
Up to 12 km (39,370 ft) |
| Shock |
Operating: Up to 20G, 6 ms half-sine
Non-operating: Half sine, 33G 11 ms, 3G axis |
| Vibration |
Operating: 0.5g sine, 0.4 grms random, 5 Hz to 500 Hz
Non-operating: 2.0g sine, 1.1 grms random, 5 Hz to 500 Hz |
| Heat dissipation |
DS-6610B-L - 24 ports at 215 BTU/hr |
