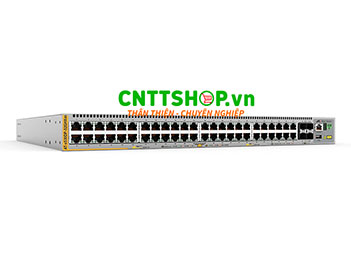

Thiết bị chuyển mạch Allied Telesis AT-x530DP-52GHXm
| Part Number |
:
|
| List Price |
: $
|
| Giá bán |
:
|
| Bảo hành |
:
|
| Made In |
:
|
| Stock |
:
|
Thông số kỹ thuật switch Allied Telesis AT-x530DP-52GHXm
| Description | Specification |
| Performance | |
| Maximum packet transfer capacity (entire device / 64Byte) | 179Mpps |
| Switching fabric | 240Gbps |
| Jumbo frames | 10KB L2 and 9KB L3 |
| Flash memory | 256MB NAND |
| Ram | 1GB DDR3 |
| Packet buffer memory | 1.5MB |
| MAC addresses | 16K |
| Configurable VLANs | 4,094 |
| Hardware | |
| Port | 40 x 10/100/1000T PoE++ 8 x 100M/1/2.5/5G PoE++ 2 x SFP+ 10G slots 1 x RS232 (RJ45 connector) 1 x USB 2.0 Type A |
| Power over Ethernet (PoE) | |
| Power Dedicated to PoE | 1480W |
| Number of Ports Support PoE | 48 x PoE++ ports |
| Power supply part | |
| Rated input voltage | 100 - 240VAC |
| Rated frequency | 50 / 60Hz |
| Max power consumption (w) | 150W |
| Max heat dissipation (btu/h) | 512 |
| Noise | 63 dBA |
| Environmental condition | |
| Width x Depth x Height | 441 x 421 x 44 mm (17.36 x 16.57 x 1.73 in) |
| Unpackaged Weight | 5.6 kg (12.26 lb) |
| Packaged Weight | 7.7 kg (17.02 lb) |
| Packaged Dimensions | 557 x 548 x 153 mm (21.93 x 21.57 x 6.02 in) |
| Operating temperature | 0 - 50 ℃ |
| Humidity during operation | 5 to 90% or less (no condensation) |
| Storage temperature | -25 - 70 ℃ |
| Humidity during storage | 5 to 95% or less (no condensation) |
| Operating altitude | Up to 3,048 m |
| Latency | |
| 10MBPS | 8.24µs |
| 100MBPS | 7.89µs |
| 1GBPS | 5.41µs |
| 2.5GBPS | 9.27µs |
| 5GBPS | 6.69µs |
| 10GBPS | 1.63µs |
| Safety | |
| Standards | UL60950-1, CSA-C22.2 No. 60950-1, EN60950-1, UL62368-1 |
| Certifications | cUL, cULus, TUV |
