| Datasheet Aruba 6200M R8Q69A |
| SPECIFICATIONS |

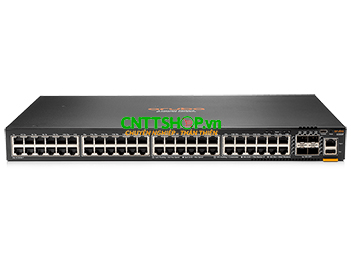

Aruba 6200M 48G 4SFP+ Switch
(R8Q69A) |
| Description |
48x ports 10/100/1000BASE-T Ports
4x 1G/10G SFP ports (2x LRM; 2x
LRM/MACSec 256)
1x RJ-45 Console Port
1x USB-C Console Port
1x OOBM
1x USB Type-A Host port |
| Power supplies |
2 field-replaceable, hotswappable
power supply slots
1 minimum power supply required
(ordered separately)
Supports JL085A PSU |
| Fans |
Switch has two fan tray slots; Switch
includes one fan tray.
- Min 1 fan tray required. Optional
second fan tray ordered separately.
- Fan trays are field replaceable and
hotswappable.
- Each fan tray contains two fans. |
| Physical characteristics |
| Dimensions |
(H) 4.4 cm x
(W) 44.2 cm x
(D) 38.5 cm
(1.73” x 17.4” x 15.2”) |
| Configuration Weight |
5.73 kg (12.63 lbs) |
| Additional Specifications |
| CPU |
Quad Core ARM Cortex™ A72 @
1.8GHz |
| Memory and Flash |
8 GB DDR4
16 GB eMMC |
| Packet Buffer |
8 MB Packet Buffer Memory |
| Performance |
| Model Switching Capacity |
176 Gbps |
Model Throughput
Capacity |
Up to 130.9Mpps |
Average Latency
(LIFO-64-bytes packets) |
1Gbps: 2.28μSec
10Gbps: 1.46μSec |
| Stack Size |
8 members (with other 24/48p
6200F and 6200M switches only |
| Max. Stacking Distance |
Up to 10 kms with long range
transceivers |
| Stacking Bandwidth |
40 Gbps |
Switched Virtual
Interfaces (dual stack) |
128 |
| IPv4 Host Table (ARP) |
8,000 |
| IPv6 Host Table (ND) |
8,000 |
| IPv4 Unicast Routes |
2,000 |
| IPv6 Unicast Routes |
2,000 |
| MAC Table Capacity |
32,000 |
| IGMP Groups |
1,000 |
| MLD Groups |
1,000 |
IPv4/IPv6/MAC ACL
Entries (ingress) |
1,000/1,000/1,000 |
IPv4/IPv6/MAC ACL
Entries (egress) |
512/256/512 |
| Environment |
| Operating Temperature |
32°F to 113°F (0°C to 45°C) up to
5,000 ft derate -1°C for every 1000
ft from 5,000 ft to 10,000 ft.
Can support excursion to 131°F
(55°C) for short periods of time. |
Operating Relative
Humidity |
5% to 95% @ 104°F (40°C) non
condensing |
| Non-Operating |
-40°F to 158°F (-40°C to 70°C) up
to 15000 ft |
Non-Operating Storage
Relative Humidity |
5% to 90% @ 149°F (65°C) non
condensing |
| Max Operating Altitude |
10,000 feet (3.048 km) Max |
Max Non-Operating
Altitude |
15,000 feet (4.6 km) Max |
| Acoustic |
Sound Power, LWAd = 4.9 Bel
Sound Pressure, LpAm (Bystander)
= 33.0 dB |
| Primary Airflow |
Front and side to back |
| Electrical Characteristics |
| Frequency |
50Hz/60Hz |
| AC Voltage |
JL085A PSU: 100V-240V |
| Current |
JL085A PSU: 3A/1.2A |
| 80plus.org Certification |
JL085A PSU: 80plus Gold |
Maximum heat
dissipation BTU/hr and kj/
hr info needed |
232 BTU/hr
245 kJ/hr |
Power Consumption (230
VAC) |
With JL085A PSU:
Idle: 56W
100% Traffic Rate: 75W |
