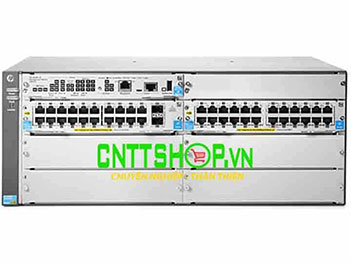

Switch Aruba J9823A 5406R-44G-PoE+/2SFP+ (No PSU) v2 zl2

Thiết bị chuyển mạch Aruba J9823A 5406R-44G-PoE+/2SFP+ (No PSU) v2 zl2 Switch thiết bị mạng switch aruba netwwork J9823A
Mã sản phẩm: J9823A
Tình trạng: Còn hàng
Check Giá List

Thiết bị chuyển mạch Aruba J9823A 5406R-44G-PoE+/2SFP+ (No PSU) v2 zl2 Switch

Aruba Part Number     : J9823A
Bảo hành                : 12 tháng
Made In                  : China
Stock                      : Hàng có sẵn

Mô tả sản phẩm

Thiết bị chuyển mạch Aruba J9823A được thiết kế để hoạt động phù hợp cả 3 lớp mạng (lớp truy nhập mạng đầu cuối) với chi phí đầu tư là thấp trong dòng Aruba 5400R Switch Series.

Thiết bị chuyển mạch Aruba J9823A được tăng cường bảo mật bằng cách sử dụng các công nghệ virtual LANs, link aggregation, hoặc IGMP Snooping boost uplink performance, và loop prevention enhances network reliability. Switch Aruba J9823A​ sử dụng điện AC 220V.

thiết bị chuyển mạch Aruba J9823A.

Switch Aruba J9823A cho phép dễ dàng quản lý ngay cả bởi người dùng không biết kỹ thuật thông qua giao diện Wed trực quan, hỗ trợ HTTP và HTTP Secure (HTTPS)

Thiết bị chuyển mạch Aruba J9823A 5406R-44G-PoE+/2SFP+ (No PSU) v2 zl2 Switch thiết bị mạng switch aruba  netwwork J9823A

Thông số kỹ thuật chi tiết của switch​ Aruba ​J9823A:

I/O ports and slots

44 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX,
IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Media Type: Auto MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
2 open 10GbE SFP+ transceiver slots
4 open module slots
Supports a maximum of 144 autosensing 10/100/1000 ports or 144 SFP ports or 48 SFP+ ports or 48 HPE Smart Rate Multi-Gigabit or 12 40GbE ports, or a combination

Power supplies

2 power supply slots
1 minimum power supply required (ordered separately)

Physical characteristics

Dimensions: 17.5(w) x 17.75(d) x 6.9(h) in (44.45 x 45.09 x 17.53 cm) (4U height)
Weight: 28.11 lb (12.75 kg)

Memory and processor

v3 Gigabit module; Dual ARM Coretex A9 @ 1 GHz; Packet buffer size: 13.5 MB internal
v2 Gigabit module: ARM 11 @ 450 MHz; Packet buffer size: 18 MB internalv3
10G module: Dual ARM Coretex A9 @ 1; Packet buffer size: 13.5 MB internal
v2 10G module: ARM11 @ 550 MHz; Packet buffer size: 18 MB internal
v3 40G module: Dual ARM Coretex A9 @ 1 GHz; Packet buffer size: 13.5 MB internal
Management Module: Freescale P2020 dual core @ 1.2 GHz, 16 MB flash, 1 GB SD Card, 4 GB DDR3 SODIMM

Mounting and enclosure Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); Horizontal surface mounting; Wall mounting
Performance

1000 Mb Latency < 2.8 µs (FIFO 64-byte packets)
10 Gb Latency < 1.8 µs (FIFO 64-byte packets)
40 Gbps Latency < 1.5 µs (FIFO 64-byte packets)
Throughut up to 1142.8 Mpps
Switching capacity: 1920 Gbps
MAC address table size: 64000 entries

Environment

Operating temperature: 32°F to 131°F (0°C to 55°C); 0°C to 40°C with J8706A or J8707A modules installed
Operating relative humidity: 5% to 95%, noncondensing
Nonoperating/Storage temperature:-40°F to 158°F (-40°C to 70°C)
Nonoperating/Storage relative humidity:15% to 95% @ 149°F (65°C), noncondensing
Altitude: up to 10,000 ft (3 km)
Acoustic: Power: 44 dB, Pressure: 31.7 dB ISO 7779, ISO 9296

Electrical characteristics Frequency: 50/60 Hz
Achieved Miercom Certified Green Award Description: Chassis ships without power supplies. Two power supply slots are available; three different power supplies are available. See power supply products for additional specifications.
Maximum heat dissipation: 2450 BTU/hr (2584.75 kJ/hr), (max. non-PoE); 3700 BTU/hr (3903 kJ/hr) (max. using PoE)
Voltage: 100 - 127 / 200 - 240 VAC, rated
Safety CSA 22.2 No. 60950; UL 60950; IEC 60950; EN 60950
Emissions

FCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A

Management HPE PCM+; HPE PCM (included); command-line interface; Web browser; configuration menu; out-of-band management (serial RS-232C)

Các loại module quang HP sử dụng cho switch HP J9823A:

J4858C HP X121 1G SFP LC SX Transceiver

J4859C HP X121 1G SFP LC LX Transceiver

J9142B HP X122 1G SFP LC BX-D Transceiver

J9143B HP X122 1G SFP LC BX-U Transceiver

J8177C HP X121 1G SFP RJ45 T Transceiver

J4860C HP X121 1G SFP LC LH Transceiver

J9150A HP X132 10G SFP+ LC SR Transceiver

J9151A HP X132 10G SFP+ LC LR Transceiver

J9152A HP X132 10G SFP+ LC LRM Transceiver

J9153A HP X132 10G SFP+ LC ER Transceiver

Các loại cable DAC HP sử dụng cho switch HP J9823A:

J9281B HP X242 10G SFP+ to SFP+ 1m Direct Attach Copper Cable

J9283B HP X242 10G SFP+ to SFP+ 3m Direct Attach Copper Cable

J9285B HP X242 10G SFP+ to SFP+ 7m Direct Attach Copper Cable

J9300A HP X244 10G XFP to SFP+ 1m Direct Attach Copper Cable

J9301A HP 10G X244 XFP to SFP+ 3m Direct Attach Copper Cable

J9302A HP 10G X244 XFP to SFP+ 5m Direct Attach Copper Cable

Các loại module HP sử dụng cho switch HP J9823A:

J9857A HP Advanced Services v2 zl Module with HDD

J9858A HP Advanced Services v2 zl Module with SSD

J9827A Aruba 5400R zl2 Management Module

J9535A HP 20-port Gig-T PoE+/4-port SFP v2 zl Module

J9991A Aruba 20-port 10/100/1000BASE-T PoE+ / 4-port 1/2.5/5/10GBASE-T PoE+ MACsec v3 zl2 Module

J9992A Aruba 20-port 10/100/1000BASE-T PoE+ MACsec / 1-port 40GbE QSFP+ v3 zl2 Module

J9537A HP 24-port SFP v2 zl Module

J9988A Aruba 24-port 1GbE SFP MACsec v3 zl2 Module

J9637A HP 12-port Gig-T PoE+/12-port SFP v2 zl Module

J9989A Aruba 12-port 10/100/1000BASE-T PoE+ / 12-port 1GbE SFP MACsec v3 zl2 Module

J9549A HP 20-port Gig-T/4-port SFP v2 zl Module

J9538A HP 8-port 10GbE SFP+ v2 zl Module

J9993A Aruba 8-port 1G/10GbE SFP+ MACsec v3 zl2 Module

J9536A HP 20-port Gig-T PoE+/2-port 10GbE SFP+ v2 zl Module

J9990A Aruba 20-port 10/100/1000BASE-T PoE+ / 4-port 1G/10GbE SFP+ MACsec v3 zl2 Module

J9548A HP 20-port Gig-T/2-port 10GbE SFP+ v2 zl Module

J9546A HP 8-port 10GbE SFP+ v2 zl Module

J9995A Aruba 8-port 1/2.5/5/10GBASE-T PoE+ MACsec v3 zl2 Module

J9534A HP 24-port Gig-T PoE+ v2 zl Module

J9986A Aruba 24-port 10/100/1000BASE-T PoE+ MACsec v3 zl2 Module

J9547A HP 24-port 10/100 PoE+ v2 zl Module

J9550A HP 24-port Gig-T v2 zl Module

J9987A Aruba 24-port 10/100/1000BASE-T MACsec v3 zl2 Module

J9996A Aruba 2-port 40GbE QSFP+ v3 zl2 Module

Các loại nguồn switch HP được sử dụng cho switch Aruba ​J9823A:

J9828A HP 5400R 700W PoE+ zl2 Power Supply

J9829A HP 5400R 1100W PoE+ zl2 Power Supply

J9830B HP 5400R 2750W PoE+ zl2 Power Supply

Quý khách có thể tham khảo thêm các dòng switch thuộc Aruba 5400R Switch Series:

J9821A Aruba 5406R zl2 Switch

J9822A Aruba 5412R zl2 Switch

J9823A HP 5406R-44G-PoE+/2SFP+ (No PSU) v2 zl2 Switch

J9825A HP 5412R-92G-PoE+/2SFP+ (No PSU) v2 zl2 Switch

J9824A HP 5406R-44G-PoE+/4SFP (No PSU) v2 zl2 Switch

J9826A HP 5412R-92G-PoE+/4SFP (No PSU) v2 zl2 Switch

J9868A HP 5406R-8XGT/8SFP+ (No PSU) v2 zl2 Switch

JL001A Aruba 5412R 92GT PoE+ and 4-port SFP+ (No PSU) v3 zl2 Switch

JL002A Aruba 5406R 8-port 1/2.5/5/10GBASE-T PoE+ / 8-port SFP+ (No PSU) v3 zl2 Switch

JL003A Aruba 5406R 44GT PoE+ and 4-port SFP+ (No PSU) v3 zl2 Switch

JL095A Aruba 5406R 16-port SFP+ (No PSU) v3 zl2 Switch
