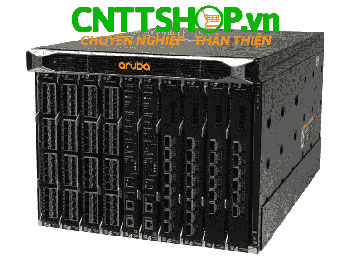

| Dataheet Aruba JL376A |
| Specifications |
| Line modules and slots |
Supports a maximum of 256 10GbE (SFP/SFP+) ports, or 64 40GbE (QSFP+) ports, or 48 ports 40/100GbE (QSFP28) combination
Eight slots for line modules
|
| Module VoQ |
1.5GB for JL363A and JL365A
3GB for JL366A
|
| Additional ports and slots |
2 Management Module slots
3 Fabric Module slots
4 Power Supply slots
|
| Power supplies |
4 power supply slots
2 minimum power supply required for a fully loaded chassis (or with 8 Line Modules)
|
| Fan tray |
Included with JL376A
|
| Physical characteristics |
Dimensions: 17.4(w) x 26(d) x 13.8(h) in. (44.1 x 66.0 x 35.1 cm) (8U height)
Weight:
-Empty configuration weight: 76 lbs (34 kg)
-JL376A weight: 164 lbs (74 kg)
-Full configuration weight: 241 lbs (109 kg)
|
| Reliability |
99.999%
|
| Mounting and enclosure |
Mounts in an EIA standard 19-inch rack or other equipment cabinet (hardware included); horizontal surface mounting only
|
| Environment |
Operating: 32°F to 104°F (-0°C to 40°C) with 5% to 95%, non-condensing
Non-Operating: -40°F to 158°F (-40°C to 70°C) with 5% to 95%, non-condensing
Max Operating Altitude: Up to 10,000ft (3.048 Km)
Max Non-Operation Altitude: Up to 30,000ft (9.144 Km)
Acoustics: Sound Power (LWAd) 7.3 Bel, Sound Pressure (LpAm) (Bystander) 55.6 dB
|
| Electrical characteristics |
Frequency: 47-63 Hz
AC voltage: 90 - 140/180 - 264 VAC
DC voltage
Current: 16 A
Power output: 2750 W
|
| Safety |
EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013; EN62368-1:2014; IEC 60950-1:2005 Ed.2; Am 1:2009+A2:2013; IEC62368-1, Ed. 2; IEC60825:2007 (Applies to products with lasers); UL60950-1, CSA 22.2 No 60950-1; UL62368-1 Ed. 2
|
| Emissions |
VCCI Class A; EN 55022 Class A; CISPR 22 Class A; IEC/EN 61000-3-2; IEC/EN 61000-3-3; ICES-003 Class A; AS/NZS CISPR 22 Class A; FCC; (CFR 47, Part 15) Class A; GB9254; EN55032:2012 Class A; CISPR32:2012 Class A
|
| Immunity |
Generic: Directive 2014/35/EU
EN: EN 55024:2010+ A1:2001 + A2:2003; ETSI EN 300 386
V1.3.3
ESD: EN 61000-4-2
Radiated: EN 61000-4-3
EFT/Burst: EN 61000-4-4
Surge: EN 61000-4-5
Conducted: EN 61000-4-6
Power frequency magnetic field: IEC 61000-4-8
Voltage dips and interruptions: EN 61000-4-11
Harmonics: EN 61000-3-2, IEC 61000-3-2
Flicker: EN 61000-3-3, IEC 61000-3-3
|
| MTBF (Hours) |
- 271,844, Aruba 8400X 32-port 10GbE SFP/SFP+ with MACsec Advanced Module (JL363A)
- 370,024, Aruba 8400X 8-port 40GbE QSFP+ Advanced Module (JL365A)
- 301,837, Aruba 8400X 6-port 40GbE/100GbE QSFP28 Advanced Module (JL366A)
- 354, 650, Aruba 8400X 7.2Tbps Fabric Module (JL367A)
- 500,465, Aruba 8400 Management Module (JL368A)
- 10,560,922, Aruba X731 Fan Tray (JL369A)
- 3,571,429, Aruba 8400 Fan for X731 Fan Tray (JL370A)
- 2,668,882, Aruba 8400 1 Fan Tray and 6 Fans Bundle (JL371A)
|
| Management |
SNMP, RJ-45 serial; USB micro USB console; RJ-45 Ethernet port
|
