Datasheet Switch Aruba R8S92A

Product Number

R8S92A

Differentiator

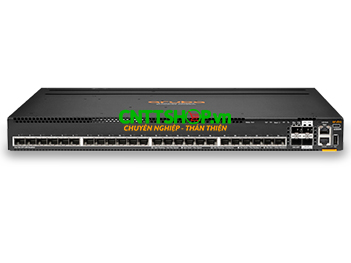

Aruba 6300M 24p SFP+ LRM support and 2p 50G and 2p 25G MACSec Switch 24x 1G/10G SFP+ ports (LRM + MACSEC) 2x 10G/25G/50G SFP ports 2x 10G/25G SFP ports (MACSEC) 1x USB-C Console Port 1x RJ Console Port 1x OOBM port 1x USB Type A Host port 1x Bluetooth dongle to be used with CX Mobile App

Ports

24x 1G/10G SFP+ ports (LRM + MACSEC)

2x 10G/25G/50G SFP ports

2x 10G/25G SFP ports (MACSEC)

1x USB-C Console Port

1x RJ Console Port 1x OOBM port

1x USB Type A Host port

1x Bluetooth dongle to be used with CX Mobile App

Memory and processor

Quad Core ARM Cortex™ A72 @ 1.8GHz, 8 GBytes DDR4 32 GBytes eMMC 8 MB Shared Packet Buffer Memory

Power supplies

2 field-replaceable, hotswappable power supply slots

1 minimum power supply required (ordered separately)

Supported PSUs

JL085A

JL757A PSU

Fans

Switch has two fan tray slots and comes with two fan trays installed.

Min 2 fan trays required.

Fan trays are field replaceable and  hotswappable.

Each fan tray contains two fans.

Physical characteristics

Dimensions

(H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73” x 17.4” x 15.2”)

Configuration Weight

4.85 kg (10.70 lbs)

Additional Specifications

CPU

Quad Core ARM Cortex™ A72 @ 1.8GHz

Memory

8 GB DDR4

Flash

32 GB eMMC

Packet Buffer

16 MB

System Switching Capacity

880 Gbps

System Throughput Capacity

660 Mpps

Model Switching Capacity

880 Gbps

Model Throughput Capacity

654 Mpps

Average Latency (LIFO-64bytes packets)

1Gbps: 4.24μSec

10Gbps: 1.50μSec

25Gbps: 2.91μSec

50Gbps1: 3.49μSec

Stack Size

10 members

Max Stacking Distance

Up to 10 kms with long range transceivers

Stacking Bandwidth

200 Gbps

Switched Virtual Interfaces (dual stack)

1,024

IPv4 Host Table (ARP)

49,152

IPv6 Host Table (ND)

49,152

IPv4 Unicast Routes

61,000

IPv6 Unicast Routes

61,000

IPv4 Multicast Routes

8,192

IPv6 Multicast Routes

8,192

MAC Table Capacity

32,768

IGMP Groups

8,192

MLD Groups

8,192

IPv4/IPv6/MAC ACL Entries (ingress)

20,480/5,120/20,480

IPv4/IPv6/MAC ACL Entries (egress)

8,192/2,048/8,192

VRF

256

Environment

Operating Temperature

32°F to 113°F (0°C to 45°C) up to 5,000 ft.2 Derate -1 degree C for every 1,000 ft from 5,000 ft to 10,000 ft.

Can support excursion to 131°F (55°C) for short periods2 of time.

55C excursion not supported when 10G LRM/LR/ER inserted

When 10G BT and 10G LRM/LR/ER transceivers are installed together, fan redundancy is only supported up to 104°F (40°C), 5,000ft

Operating Relative Humidity

15% to 95% @ 104°F (40°C) non-condensing

15% to 95% @ 104°F (40°C) non-condensing

-40°F to 158°F (-40°C to 70°C) up to 15,000 ft

Non-Operating Storage Relative Humidity

15% to 90% @ 149°F (65°C) non-condensing

Max Operating Altitude

10,000 feet (3.04 km) Max

Max Non-Operating Altitude

15,000 feet (4.6 km) Max

Acoustic

Sound Power, LWAd = 4.6 Bel Sound Pressure, LpAm (Bystander) = 30.1 dB

Primary Airflow

Primary Airflow

Electrical Characteristics

Frequency

50Hz/60Hz

AC Voltage

JL085A PSU: 100V-240V

Current (for voltages listed above)

JL085A PSU: 3A/1.2A

Power Consumption (230VAC)

Hibernation (0 rpm fan): 23W Idle: 87W 100% Traffic Rate: 131W

Mounting and Enclosure

Mounts in an EIAstandard 19 in. telco rack or equipment cabinet. Horizontal surface mounting only. 2-post rack kit included.
