| Datasheet R9A29A CX 9300-32D |
| Specifications |
| Description |

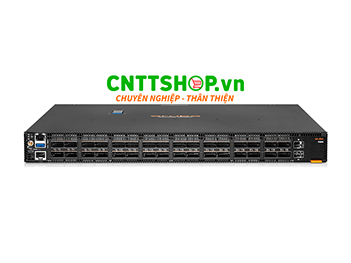

Aruba 9300-32D 32p 100/200/400G QSFP-DD 2p 10G SFP+ Front-to-Back 6 Fans 2 AC PSU Bundle |
| Power supplies |
2 redundant power supplies, field-replaceable, hot-swappable |
| Fans |
6 redundant fans, field-replaceable, hot-swappable |
| Physical characteristics |
| Dimensions |
17.26" x 23.23" x 1.71" (43.84 x 59 x 4.35 cm) |
| Full configuration weight |
26.12 lb (11.85 kg) |
| Additional specifications |
| CPU |
x86 |
| Memory, Drive and Flash |
128GB m.2 SSD, 4GB mSATA, 16MB SPI Flash, 16GB x2 SODIMM |
| Packet Buffer |
132MB |
| Performance |
| Switching Capacity |
25.6Tbps |
| IPv4 Host Table |
163,840 |
| IPv6 Host Table |
81,920 |
| IPv4 Unicast Routes |
65,536 (1,269,760 Unidimensional for Spine) |
| IPv6 Unicast Routes |
32,768 (624,640 Unidimensional for Spine) |
| MAC Table Size |
81,920 (32,768 Unidimensional for Spine) |
| IGMP Groups |
8,192 |
| MLD Groups |
8,192 |
| IPv4 Multicast Routes |
8,192 |
| IPv6 Multicast Routes |
4,096 |
| Notes: |
*Some of these scaling numbers assume shared tables and uni-dimensional traffic. |
| Environmental |
| Operating temperature |
32°F to 113°F (0°C to 45°C) at sea level.
Derate -1°C for every 1,000 ft to 10,000 ft.
(3.0 km)
|
| Non-Operating/ Storage Temperature |
-40°C to 70°C (-40°F to 158°F) up to 4.6km (15,000 ft) |
| Operating relative humidity |
15% to 95% @ 113°F (45°C) non-condensing |
| Non-Operating/ Storage relative humidity |
15% to 90% @ 158°F (70°C) non-condensing |
| Max operating altitude |
Up to 10,000ft (3km) |
| Max non-operating |
Up to 15,000ft (4.6km) |
| Primary airflow |
Front-to-Back |
| Acoustic |
LWad = 8.1 Bel
LpAm (Bystander) = 61 dB
|
| Electrical characteristics |
| Frequency |
50-60Hz |
| AC Voltage |
100-127 / 220-240 VAC
200-240V required to support 8-32 port production configuration
|
| Current |
12A / 8A |
| Power consumption (230VAC) |
100% Traffic Rate: 675W; Idle: 210W |
| Safety |
Safety-EU EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011 + A2:2013
EN 62368-1:2014 +A11:2017
EN 62368-1:2018+A11:2020
Safety-Worldwide IEC 60950-1:2005 (Second Edition) + Am 1:2009 + Am 2: 2013
IEC 62368-1:2014 (Second Edition)
IEC 62368-1:2018 (Third Edition)
Safety-North America UL 62368-1 3rd, Ed.
CAN/CSA-C22.2 N. 62368-1.19 3rd. Ed.
Environmental Drop, Vibration, Shock: IEC 17025, ISTA 3C
|
| EMC |
Immunity
EN55024:2015 / CISPR 24:2015
ESD: EN 61000-4-2
Radiated: EN 61000-4-3
EFT/Burst: EN 61000-4-4
Surge: EN 61000-4-5
Conducted: EN 61000-4-6
Power frequency magnetic field: IEC 61000-4-8
Voltage dips and interruptions: EN 61000-4-11
Harmonics: EN 61000-3-2, IEC 61000-3-2
Flicker: EN 61000-3-3, IEC 61000-3-3
Emissions
EN 55032:2015 / CISPR 32:2015, Class A
VCCI-32:2016 Class A
CNS 13483
AS/NZS
ICES-003 Issue 5
FCC CFR 47 Part 15:2010, Class A
RoHS-6 Compliant (EN 50581:2012)
|
| Lasers |
EN60825-1:2014/IEC 60825-1: 2014 Class 1
Class 1 Laser Products/Laser Klasse 1
|
| Management |
SNMP
REST
RJ-45 serial
Micro USB console port
RJ-45 OOBM Port
|
| Mounting and enclosure |
Mounts in an EIA standard 19-inch rack or other equipment cabinet; horizontal surface mounting only; 2-post Rack Mount Kit included with switch, optional 4-post rack mount kit must be ordered separately - JL483C. |
| Standards and Protocols |
The following standards and protocols are supported.
IEEE 802.1AB-2009
IEEE 802.1ak-2007
IEEE 802.1t-2001
IEEE 802.1AX-2008 Link Aggregation
IEEE 802.1p Traffic Class Expediting and Dynamic Multicast Filtering
IEEE 802.1Q VLANs
IEEE 802.1s Multiple Spanning Trees
IEEE 802.1w Rapid Reconfiguration of Spanning Tree
IEEE 802.3ad Link Aggregation Control Protocol (LACP)
IEEE 802.3x Flow Control
IEEE 802.3z Gigabit Ethernet
IEEE 802.3by 25 Gigabit Ethernet
IEEE 802.3ba 40 Gigabit Ethernet
IEEE 802.3cd 50 Gigabit Ethernet
IEEE 802.3ba and 802.3cd 100 Gigabit Ethernet
IEEE 802.3bs 200 and 400 Gigabit Ethernet
RFC 768 UDP
RFC 791 IP
RFC 792 ICMP
RFC 793 TCP
RFC 826 ARP
RFC 768 User Datagram Protocol
RFC 813 Window and Acknowledgement Strategy in TCP
RFC 815 IP datagram reassembly algorithms
RFC 879 TCP maximum segment size and related topics
RFC 896 Congestion control in IP/TCP internetworks
RFC 917 Internet subnets
RFC 919 Broadcasting Internet Datagrams
RFC 922 Broadcasting Internet Datagrams in the Presence of Subnets (IP_BROAD)
RFC 925 Multi-LAN address resolution
RFC 1215 Convention for defining traps for use with the SNMP
RFC 1256 ICMP Router Discovery Messages
RFC 1393 Traceroute Using an IP Option
RFC 1591 Domain Name System Structure and Delegation
RFC 1657 Definitions of Managed Objects for BGP-4 using SMIv2
RFC 1772 Application of the Border Gateway Protocol in the Internet
RFC 1981 Path MTU Discovery for IP version 6
RFC 1997 BGP Communities Attribute
RFC 1998 An Application of the BGP Community Attribute in Multi-home Routing
RFC 2385 Protection of BGP Sessions via the TCP MD5 Signature Option
RFC 2401 Security Architecture for the Internet Protocol
RFC 2402 IP Authentication Header
RFC 2406 IP Encapsulating Security Payload (ESP)
RFC 2460 Internet Protocol, Version 6 (IPv6) Specification
RFC 2545 Use of BGP-4 Multiprotocol Extensions for IPv6 Inter-Domain Routing
RFC 2710 Multicast Listener Discovery (MLD) for IPv6
RFC 2787 Definitions of Managed Objects for the Virtual Router Redundancy Protocol
RFC 2918 Route Refresh Capability for BGP-4
RFC 2934 Protocol Independent Multicast MIB for IPv4
RFC 3137 OSPF Stub Router Advertisement
RFC 3176 InMon Corporation's sFlow: A Method for Monitoring Traffic in Switched and Routed Networks
RFC 3484: Default Address Selection for Internet Protocol version 6 (IPv6)
RFC 3509 Alternative Implementations of OSPF Area Border Routers
RFC 3623 Graceful OSPF Restart
RFC 3810 Multicast Listener Discovery Version 2 (MLDv2) for IPv6
RFC 4213 Basic Transition Mechanisms for IPv6 Hosts and Routers
RFC 4251 The Secure Shell (SSH) Protocol
RFC 4271 A Border Gateway Protocol 4 (BGP-4)
RFC 4273 Definitions of Managed Objects for BGP-4
RFC 4291 IP Version 6 Addressing Architecture
RFC 4292 IP Forwarding Table MIB
RFC 4293 Management Information Base for the Internet Protocol (IP)
RFC 4360 BGP Extended Communities Attribute
RFC 4486 Subcodes for BGP Cease Notification Message
RFC 4552 Authentication/Confidentiality for OSPFv3
RFC 4724 Graceful Restart Mechanism for BGP
RFC 4760 Multiprotocol Extensions for BGP-4
RFC 4940 IANA Considerations for OSPF
RFC 5095: Deprecation of Type 0 Routing Headers in IPv6
RFC 5187 OSPFv3 Graceful Restart
RFC 5701 IPv6 Address Specific BGP Extended Community Attribute
RFC 6987 OSPF Stub Router Advertisement
RFC 7047 The Open vSwitch Database Management Protocol
RFC 7059 A Comparison of IPv6-over-IPv4 Tunnel Mechanisms
RFC 7313 Enhanced Route Refresh Capability for BGP-4
RFC 8201 Path MTU Discovery for IP version 6
|
