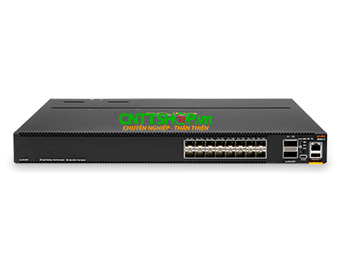

| Datasheet Aruba R9G10A |
| Specifications |
|
Interface
|
8x ports of 50G
16x ports of 1GbE/10GbE/25GbE (SFP/SFP+/SFP28)
2x ports of 40GbE/100GbE (QSFP+/QSFP28)
(optional 1GBASE-T SFP and 10GBASE-T SFP+ transceivers and 4x10G/25G breakout cables supported)
|
|
Additional ports and slots
|
|
Power Supplies
|
2 field-replaceable and hot-swappable power supplies1
|
|
Fans
|
3 field-replaceable and hot-swappable fans2
|
|
Management
|
RJ-45 serial and USB-C console; RJ-45 Ethernet port; USB-Type A
|
|
Physical characteristics
|
|
Physical Dimensions (HxWxD)
|
1.73in x 17.4in x 16.0in 44.0mm x 442.5mm x 406.4
|
|
Full configuration weight
|
17.00 lb (estim.) 7.71 kg (estim.)
|
|
Memory and Processor
|
|
CPU
|
1.8 GHz 4-core 64-bit
|
|
Memory, Drive and Flash
|
16GB RAM, 32GB Flash/Storage
|
|
Packet Buffer
|
32MB
|
|
Performance
|
|
Switching Capacity
|
1.2Tbps
|
|
IPv4 Host Table
|
145,780
|
|
IPv6 Host Table
|
145,780
|
|
IPv4 Unicast Routes
|
606,977
|
|
IPv6 Unicast Routes
|
630,784
|
|
Maximum Number of Access Control List (ACL) Entries Ingress
|
IPv4 65,536, IPv6 16,384, MAC 65,536
|
|
Maximum Number of Access Control List (ACL) Entries Egress
|
Maximum Number of Access Control List (ACL) Entries Egress
|
|
Maximum VLANs
|
4,094
|
|
IGMP Groups
|
7,000
|
|
MLD Groups
|
7,000
|
|
IPv4 Multicast Routes
|
7,000
|
|
IPv6 Multicast Routes
|
7,000
|
|
Environment
|
|
Operating Temperature3
|
Operating Temperature3
|
|
Operating Temperature3
|
15% to 95% relative humidity at 104°F (40°C), non-condensing
|
|
Non-Operating Temperature
|
-40°C to 70°C (-40°F to 158°F) up to 4.6km (15,000 ft.)
|
|
Non-Operating/ Storage Relative Humidity
|
Non-Operating/ Storage Relative Humidity
|
|
Maximum Operating Altitude
|
Maximum Operating Altitude
|
|
Maximum Operating Altitude
|
Up to 15,000ft (4.6Km)
|
|
Primary Airflow
|
Power-to-Port (PwrToPrt) or Port-to-Power (PrtToPwr)
|
|
BTU/hr
|
1,109
|
|
Acoustics4
|
LWAd = 6.0 Bel LpAm (Bystander) = 42.8 dB
|
|
Electrical Characteristics
|
|
Frequency
|
47-63 Hz
|
|
AC Voltage Current
|
7.1A for 100-127VAC 3.4A for 200-240VAC
|
|
Power Consumption
|
Max: 325W Idle: 110W
|
|
Regulatory
|
|
Compliance
|
Products comply with CE Markings according to directives 2014/30/EU (EMC) and 2014/35/EU (Safety)
|
|
RoHS
|
EN 50581:2012
|
|
Safety
|
|
EU
|
EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN62368-1, Ed.2:2014
|
|
North America
|
UL60950-1, CSA 22.2 No 60950-1
|
|
Worldwide
|
IEC60950-1:2005 Ed.2 + Am 1:2009 + A2:2013 IEC 62368-1:2014
|
|
EMC
|
EN 55024:2010+A2016/CISPR24:2015 EN55032:2015/CISPR 32, Class A EN55035:2017/CISPR 35 EN61000-3-2:2014, Class A EN61000-3-3:2013 FCC CFR 47 Part 15:2010, Class A ICES-003, Class A VCCI Class A CNS 13438 CNS 13438 Class A
|
|
Laser
|
|
Transceivers
|
EN60825-1:2014 / IEC 60825-1: 2014 Class 1 Class 1 Laser Products / Laser Klasse 1
|
|
Mounting
|
Mounts in an EIA standard 19-inch rack or other equipment cabinet; horizontal surface mounting only; 2-post and 4-post mounting options available5; air duct available for 4-post deployments and sold separately
|
