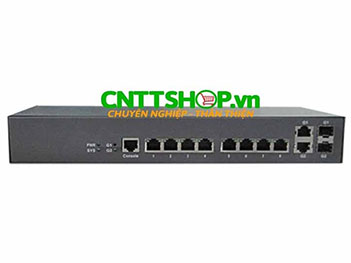

Switch BDCOM S2226IB 24 10/100 Base-T ports, 2 gigabit combo ports (10/100/1000 Base-T ports or 100/1000 Base-X ports)

AC: 100V-240V, 50Hz±10%

Operating temperature and humidity: 0℃-50℃, 10%-90% non-condensing

Static configuration and dynamic MAC learning

MAC browsing and removal

Configurable aging time of the MAC address

Limited number of learnable MAC addresses

MAC filtration

Black-hole MAC

4K VLAN

GVRP

1:1 VLAN mapping and N:1 VLAN Mapping

QinQ

Private VLAN

802.1D (STP), 802.1W (RSTP), 802.1S (MSTP)

BPDU protection, root protection, and loopback protection

IGMP v1/v2/v3

IGMP Snooping

IGMP Fast Leave

Multicast group strategy and quantity limitation

Multicast flow copying over VLANs

ICMPv6, DHCPv6, ACLv6 and IPv6 Telnet

IPv6 neighbor discovery

Path MTU discovery

MLD V1/V2

Flow classification based on each field in the heads of L2/L3/L4 protocols

CAR flow limit

802.1P/DSCP priority re-labeling

SP, WRR, and SP+WRR

Congestion avoidance mechanisms like Tail-Drop and WRED

L2/L3/L4 ACL flow identification and filtration

DDoS attack prevention, TCP’s SYN Flood attack prevention, UDP Flood attack prevention, etc

Broadcast/multicast/unknown unicast storm-control

Port isolation

Port security, and “IP+MAC+port” binding

DHCP Snooping and DHCP option 82

IEEE 802.1x authentication

Radius BDTacacs+ authentication

Level-based command line protection

Static/LACP link aggregation

EAPS and ERPS

Console, Telnet, SSH, Web

SNMP v1/v2/v3

TFTP

RMON

100M optical modules

FSFP-SX-1310

100M SFP multi-mode (2Km, 1310nm, LC, DDM)

FSFP-LX-15

100M SFP single mode (15Km, 1310nm, LC, DDM)

FSFP-LX-40

100M SFP single mode (40Km, 1310nm, LC, DDM)

FSFP-ZX-80

100M SFP single mode (80Km, 1550nm, LC, DDM)

FSFP-LX-SM1310-20-BIDI

FSFP-LX-SM1550-20-BIDI

100M SFP single mode, single core bidirectional (20Km, TX1310/RX1550, LC, DDM)

100M SFP single mode, single core bidirectional (20Km, TX1550/RX1310, LC, DDM)

FSFP-LX-SM1310-40-BIDI

FSFP-LX-SM1550-40-BIDI

100M SFP single mode, single core bidirectional (40Km, TX1310/RX1550, LC, DDM)

100M SFP single mode, single core bidirectional (40Km, TX1550/RX1310, LC, DDM)

FSFP-LX-SM1310-80-BIDI

FSFP-LX-SM1550-80-BIDI

100M SFP single mode, single core bidirectional(80Km, TX1310/RX1550, LC, DDM)

100M SFP single mode, single core bidirectional(80Km, TX1550/RX1310, LC, DDM)

GE optical modules

GSFP-TX-B

GE SFP-to- RJ45 module

GSFP-SX-D

GE SFP multi-mode (500m, 850nm, LC, DDM)

GSFP-LX-10-D

GE SFP single mode (10Km, 1310nm, LC, DDM)

GSFP-LX-20-D

GE SFP single mode (20Km, 1310nm, LC, DDM)

GSFP-LX-40-D

GE SFP single mode (40Km, 1310nm, LC, DDM)

GSFP-ZX-80-D

GE SFP single mode (80Km, 1550nm, LC, DDM)

GSFP-LX-SM1310-10-BIDI

GSFP-LX-SM1550-10-BIDI

GE SFP single mode, single core bidirectional (10Km, TX1310/RX1550, LC, DDM)

GE SFP single mode, single core bidirectional (10Km, TX1550/RX1310, LC, DDM)

GSFP-LX-SM1310-20-BIDI

GSFP-LX-SM1550-20-BIDI

GE SFP single mode, single core bidirectional (20Km, TX1310/RX1550, LC, DDM)

GE SFP single mode, single core bidirectional (20Km, TX1550/RX1310, LC, DDM)

GSFP-LX-SM1310-40-BIDI

GSFP-LX-SM1550-40-BIDI-1310

GE SFP single mode, single core bidirectional (40Km, TX1310/RX1550, LC, DDM)

GE SFP single mode, single core bidirectional (40Km, TX1550/RX1310, LC, DDM)

GSFP-LX-SM1490-80-BIDI

GSFP-LX-SM1550-80-BIDI

GE SFP single mode, single core bidirectional (80Km, TX1490/RX1550, LC, DDM)

GE SFP single mode, single core bidirectional (80Km, TX1550/RX1490, LC, DDM)

GSFP-LX-SM1490-120

GSFP-LX-SM1550-120

GE SFP single mode, single core bidirectional (120Km, TX1490/RX1550, LC, DDM)

GE SFP single mode, single core bidirectional (120Km, TX1550/RX1490, LC, DDM)
