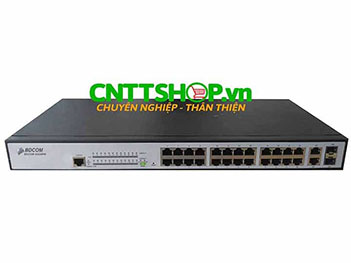

Switch BDCOM S2226PB 24 Ports PoE 400W, 2 Gigabit Combo Ports

Phân phối Switch BDCOM S2226PB 24 100M Base-T ports and 2 gigabit combo ports (24 100M POE port, 2 gigabit optical ports, 400W POE power) chính hãng giá tốt

Mã sản phẩm: S2226PB



CHI TIẾT

Switch BDCOM S2226PB 24 10/100 Base-T ports PoE 400W, 2 gigabit combo ports (10/100/1000 Base-T ports or 100/1000 Base-X ports)



Vender              :BDCOM
Part Number     : S2226PB

Bảo hành           : 12 tháng
Made In             : China

Mô tả tổng quan Switch BDCOM S2226PB

Switch BDCOM S2226PB là một bộ chuyển mạch truy nhập thông minh POE thế hệ mới được thiết kế dành cho mạng IP của nhà khai thác và mạng doanh nghiệp. Dựa trên phần cứng hiệu suất cao và nền tảng BDROS, nó hỗ trợ các chức năng như ACL, QinQ và QoS. Chế độ quản lý đơn giản và cài đặt linh hoạt có thể đáp ứng yêu cầu của bất kỳ yêu cầu phức tạp nào.

Switch BDCOM S2226PB 24 10/100 Base-T ports PoE 400W, 2 gigabit combo ports

Thông số kỹ thuật Switch BDCOM S2226PB

Item Description
Backplane 22.8Gbps
Forwarding rate 9.6Mpps
MAC 8K
Ports 24 100M Base-T ports + 2 gigabit combo ports
Dimensions(mm)  (W×H×D) 440×232×44
Consumption <15W
POE/POE+ Support
POE power 400W
Power supply

AC: 100V-240V, 50Hz±10%

Environment

Operating temperature and humidity: 0℃-50℃, 10%-90% non-condensing

Storage temperature and humidity: -20℃-70℃;5%-95% non-condensing
MAC exchange

Static configuration and dynamic MAC learning

MAC browsing and removal

Configurable aging time of the MAC address

Limited number of learnable MAC addresses

MAC filtration

VLAN

4K VLAN

GVRP

QinQ

Private VLAN

STP

802.1D (STP), 802.1W (RSTP), 802.1S (MSTP)

BPDU protection, root protection, and loopback protection

Multicast

IGMP v1/v2/v3

IGMP Snooping

IGMP Fast Leave

Multicast group strategy and quantity limitation

Multicast flow copying over VLANs (S2108POE does not support the function.)

IPv6

ICMPv6, DHCPv6, ACLv6 and IPv6 Telnet

IPv6 neighbor discovery

Path MTU discovery

MLD V1/V2

IGMP snooping
QoS

Flow classification based on L2~L4 protocols (S2108POE does not support this.)

CAR flow limit

802.1P/DSCP priority re-labeling (S2108POE does not support this.)

SP, WRR, and “SP+WRR”

Congestion avoidance mechanisms like Tail-Drop and WRED

Flow monitoring and flow shaping

Security features

L2/L3/L4 ACL flow identification and filtration (S2108POE does not support this.)

Defend against DDoS attack, TCP’s SYN Flood attack and UDP

Flood attack

Broadcast/multicast/unknown unicast storm-control

Port isolation

Port security, and “IP + MAC + port” binding (S2108POE does not support this.)

DHCP Snooping and DHCP option 82 (S2108POE does not support this.)

IEEE 802.1x authentication

Radius, BDTacacs+ authentication

Level-based command line protection

Reliability

Static/LACP link aggregation

EAPS and ERPS (S2108POE does not support this.)

ISSU uninterrupted system upgrade

Management

Console, Telnet, SSH2.0, Web

SNMP v1/v2/v3

TFTP

RMON

Các loại module quang sử dụng cho Switch BDCOM S2226PB

100M optical modules

FSFP-SX-1310

100M SFP multi-mode (2Km, 1310nm, LC, DDM)

FSFP-LX-15

100M SFP single mode (15Km, 1310nm, LC, DDM)

FSFP-LX-40

100M SFP single mode (40Km, 1310nm, LC, DDM)

FSFP-ZX-80

100M SFP single mode (80Km, 1550nm, LC, DDM)

FSFP-LX-SM1310-20-BIDI

FSFP-LX-SM1550-20-BIDI

100M SFP single mode, single core bidirectional (20Km, TX1310/RX1550, LC, DDM)

100M SFP single mode, single core bidirectional (20Km, TX1550/RX1310, LC, DDM)

FSFP-LX-SM1310-40-BIDI

FSFP-LX-SM1550-40-BIDI

100M SFP single mode, single core bidirectional (40Km, TX1310/RX1550, LC, DDM)

100M SFP single mode, single core bidirectional (40Km, TX1550/RX1310, LC, DDM)

FSFP-LX-SM1310-80-BIDI

FSFP-LX-SM1550-80-BIDI

100M SFP single mode, single core bidirectional(80Km, TX1310/RX1550, LC, DDM)

100M SFP single mode, single core bidirectional(80Km, TX1550/RX1310, LC, DDM)

GE optical modules

GSFP-TX-B

GE SFP-to- RJ45 module

GSFP-SX-D

GE SFP multi-mode (500m, 850nm, LC, DDM)

GSFP-LX-10-D

GE SFP single mode (10Km, 1310nm, LC, DDM)

GSFP-LX-20-D

GE SFP single mode (20Km, 1310nm, LC, DDM)

GSFP-LX-40-D

GE SFP single mode (40Km, 1310nm, LC, DDM)

GSFP-ZX-80-D

GE SFP single mode (80Km, 1550nm, LC, DDM)

GSFP-LX-SM1310-10-BIDI

GSFP-LX-SM1550-10-BIDI

GE SFP single mode, single core bidirectional (10Km, TX1310/RX1550, LC, DDM)

GE SFP single mode, single core bidirectional (10Km, TX1550/RX1310, LC, DDM)

GSFP-LX-SM1310-20-BIDI

GSFP-LX-SM1550-20-BIDI

GE SFP single mode, single core bidirectional (20Km, TX1310/RX1550, LC, DDM)

GE SFP single mode, single core bidirectional (20Km, TX1550/RX1310, LC, DDM)

GSFP-LX-SM1310-40-BIDI

GSFP-LX-SM1550-40-BIDI-1310

GE SFP single mode, single core bidirectional (40Km, TX1310/RX1550, LC, DDM)

GE SFP single mode, single core bidirectional (40Km, TX1550/RX1310, LC, DDM)

GSFP-LX-SM1490-80-BIDI

GSFP-LX-SM1550-80-BIDI

GE SFP single mode, single core bidirectional (80Km, TX1490/RX1550, LC, DDM)

GE SFP single mode, single core bidirectional (80Km, TX1550/RX1490, LC, DDM)

GSFP-LX-SM1490-120

GSFP-LX-SM1550-120

GE SFP single mode, single core bidirectional (120Km, TX1490/RX1550, LC, DDM)

GE SFP single mode, single core bidirectional (120Km, TX1550/RX1490, LC, DDM)
