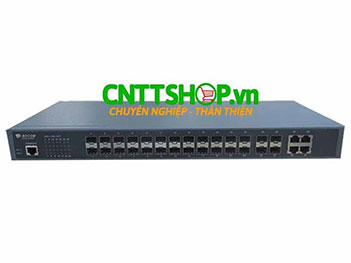

Switch BDCOM S2528GX 24 100/1000 Base-X Ports and 4 Gigabit Combo Ports (10/100/1000Base-T ports or 1000Base-X ports)

AC: 100V-240V, 50Hz±10%

Operating temperature and humidity: 0℃-50℃, 10%-90% non-condensing

Static configuration and dynamically learning of MAC address

Check and delete MAC address

Configuring of MAC address aging time

Limit on MAC address learning number

MAC address filtering function

4K VLAN entries

GVRP

1:1 and N:1 VLAN Mapping

QinQ

Private VLAN

802.1D (STP), 802.1W (RSTP), 802.1S (MSTP)

BPDU protection, root protection and ring protection

IGMP v1/v2/v3

IGMP Snooping

IGMP Fast Leave

Multicast group policy and multicast number limit

Multicast traffic cross VLAN duplication

ICMPv6, DHCPv6 and IPv6 Telnet

IPv6 Neighbor Discovery

MLD v1/v2

MLD Snooping

Traffic classification of each field of L2/L3/L4 protocol headers

CAR traffic control

802.1P/DSCP priority remark

Multiple queuing algorithms such as SP, WRR or SP+WRR

Tail-Drop, WRED

Traffic supervision and traffic shaping

Identification and filtering of L2/L3/L4 based ACL

Defend against DDoS attack, SYN Flood attack of TCP or UDP Flood attack

Suppression of broadcast, multicast and unknown unicast packet

Port isolation

Port security, IP+MAC+port binding

DHCP Snooping, DHCP Option 82

IEEE 802.1x authentication

Radius and BDTacacs+ authentication

Command line authority control based on user levels

Static/LACP link aggregation

EAPS and ERPS(single ring)

ISSU

Console, Telnet, SSH 2.0

WEB based management style

SNMP v1/v2/v3

Upload and download of TFTP files

RMON

100M optical modules

FSFP-SX-1310

100M SFP multi-mode (2Km, 1310nm, LC, DDM)

FSFP-LX-15

100M SFP single mode (15Km, 1310nm, LC, DDM)

FSFP-LX-40

100M SFP single mode (40Km, 1310nm, LC, DDM)

FSFP-ZX-80

100M SFP single mode (80Km, 1550nm, LC, DDM)

FSFP-LX-SM1310-20-BIDI

FSFP-LX-SM1550-20-BIDI

100M SFP single mode, single core bidirectional (20Km, TX1310/RX1550, LC, DDM)

100M SFP single mode, single core bidirectional (20Km, TX1550/RX1310, LC, DDM)

FSFP-LX-SM1310-40-BIDI

FSFP-LX-SM1550-40-BIDI

100M SFP single mode, single core bidirectional (40Km, TX1310/RX1550, LC, DDM)

100M SFP single mode, single core bidirectional (40Km, TX1550/RX1310, LC, DDM)

FSFP-LX-SM1310-80-BIDI

FSFP-LX-SM1550-80-BIDI

100M SFP single mode, single core bidirectional(80Km, TX1310/RX1550, LC, DDM)

100M SFP single mode, single core bidirectional(80Km, TX1550/RX1310, LC, DDM)

GE optical modules

GSFP-TX-B

GE SFP-to- RJ45 module

GSFP-SX-D

GE SFP multi-mode (500m, 850nm, LC, DDM)

GSFP-LX-10-D

GE SFP single mode (10Km, 1310nm, LC, DDM)

GSFP-LX-20-D

GE SFP single mode (20Km, 1310nm, LC, DDM)

GSFP-LX-40-D

GE SFP single mode (40Km, 1310nm, LC, DDM)

GSFP-ZX-80-D

GE SFP single mode (80Km, 1550nm, LC, DDM)

GSFP-LX-SM1310-10-BIDI

GSFP-LX-SM1550-10-BIDI

GE SFP single mode, single core bidirectional (10Km, TX1310/RX1550, LC, DDM)

GE SFP single mode, single core bidirectional (10Km, TX1550/RX1310, LC, DDM)

GSFP-LX-SM1310-20-BIDI

GSFP-LX-SM1550-20-BIDI

GE SFP single mode, single core bidirectional (20Km, TX1310/RX1550, LC, DDM)

GE SFP single mode, single core bidirectional (20Km, TX1550/RX1310, LC, DDM)

GSFP-LX-SM1310-40-BIDI

GSFP-LX-SM1550-40-BIDI-1310

GE SFP single mode, single core bidirectional (40Km, TX1310/RX1550, LC, DDM)

GE SFP single mode, single core bidirectional (40Km, TX1550/RX1310, LC, DDM)

GSFP-LX-SM1490-80-BIDI

GSFP-LX-SM1550-80-BIDI

GE SFP single mode, single core bidirectional (80Km, TX1490/RX1550, LC, DDM)

GE SFP single mode, single core bidirectional (80Km, TX1550/RX1490, LC, DDM)

GSFP-LX-SM1490-120

GSFP-LX-SM1550-120

GE SFP single mode, single core bidirectional (120Km, TX1490/RX1550, LC, DDM)

GE SFP single mode, single core bidirectional (120Km, TX1550/RX1490, LC, DDM)
