Vender :BDCOM
Part Number : S2928F
Bảo hành : 12 tháng
Made In : China

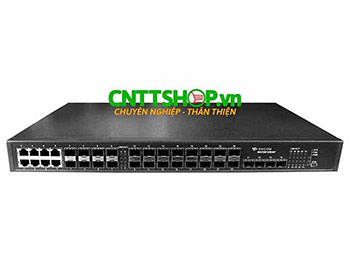

Switch BDCOM S2928F là những thiết bị truy cập thông minh mới được phát triển bởi công ty truyền thông dữ liệu Thượng Hải Baud dành cho IP MAN của nhà khai thác và các mạng doanh nghiệp, các cơ sở lớn và các mạng doanh nghiệp.
Với phần cứng hiệu năng cao thế hệ mới và nền tảng BDROS tự quản lý của BDCOM, dòng sản phẩm S2928F cung cấp cho người sử dụng khả năng truyền thông lâu nhất. Điều này là kết quả từ việc tích hợp với nhiều dịch vụ mạng và các kỹ thuật đáng tin cậy như IPv6, MPLS VPN, bảo mật mạng, nâng cấp không ngừng, chuyển tiếp không ngừng, dọn dẹp và bảo vệ dự phòng
Item | Description |
Backplane | 256Gbps |
Forwarding rate | 168Mpps |
MAC | 32K/64K |
Ports | 16 gigabit SFP ports, 8 gigabit TX/SFP combo ports, 4 10GE optical ports |
Dimensions(mm) (W×H×D) | 440×280×44 |
Power supply |
AC: 100V-240V, 50Hz±10% Optional dual power supply |
Environment |
Operating temperature and humidity: 0℃-50℃, 10%-90% non-condensing Storage temperature and humidity: -20℃-70℃;5%-95% non-condensing |
MAC switching function |
Static configuration and dynamic MAC learning MAC browsing and removal Configurable aging time of the MAC address Limited number of learnable MAC addresses MAC filtration Black-hole MAC list |
VLAN |
4K VLAN GVRP 1:1 VLAN mapping and N:1 VLAN mapping QinQ and flexible QinQ Private VLAN |
STP |
802.1D (STP), 802.1W (RSTP) and 802.1S (MSTP) BPDU protection, root protection, and loopback protection |
Multicast |
IGMP v1/v2/v3 IGMP Snooping IGMP Fast Leave Multicast group strategy and quantity limitation Multicast flow copying over VLANs PIM-SM, PIM-DM |
IPv4 |
Static routing, RIP v1/v2, OSPF, BGP Strategy routing Load balance by equivalent routing BFD for OSPF, BGP |
IPv6 |
ICMPv6, DHCPv6, ACLv6 and IPv6 Telnet IPv6 neighbor discovery Path MTU discovery MLD V1/V2 MLD Snooping IPv6 static routing, RIPng, OSPFv3, BGP4+ Manual tunnel, ISATAP tunnel, 6 to 4 tunnel |
MCE |
MCE |
MPLS VPN |
LDP protocol MCE MPLS VPN supported P/PE MPLS TE MPLS OAM |
QoS |
Flow classification based on L2/L3/L4 protocols CAR flow limit 802.1P/DSCP priority re-labeling SP, WRR and “SP+WRR” Congestion avoidance mechanisms like Tail-Drop and WRED Flow monitoring and flow shaping |
Security features |
L2/L3/L4 ACL flow identification and filtration DDoS attack prevention, TCP’s SYN Flood attack prevention, UDP Flood attack prevention, etc Broadcast/multicast/unknown unicast storm-control Port isolation Port security, and “IP+MAC+port” binding DHCP snooping and DHCP option 82 IEEE 802.1x authentication Radius BDTacacs+ authentication uRPF Level-based command line protection |
Reliability |
Power supply 1+1 backup Static/LACP link aggregation; link aggregation of across-service cards EAPS VRRP GR for OSPF and BGP BFD for OSPF and BGP ISSU uninterrupted system upgrade |
Management |
Console, Telnet, SSH2.0 Browser-based WEB management SNMP v1/v2/v3 TFTP file upload and download RMON sFLOW |
Environment protection |
IEEE802.3az environment protection Ethernet |
Optical Modules |
|
GE Optical Modules |
|
GSFP-TX-B |
GE SFP-to-RJ45 module |
GSFP-SX-D |
GE SFP multi-mode (500m, 850nm, LC, DDM) |
GSFP-LX-10-D |
GE SFP single-mode (10Km, 1310nm, LC, DDM) |
GSFP-LX-20-D |
GE SFP single-mode (20Km, 1310nm, LC, DDM) |
GSFP-LX-40-D |
GE SFP single-mode (40Km, 1310nm, LC, DDM) |
GSFP-ZX-80-D |
GE SFP single-mode (80Km, 1550nm, LC, DDM) |
GSFP-ZX-120-D |
GE SFP single-mode (120Km, 1550nm, LC, DDM) |
GSFP-LX-SM1310-10-BIDI GSFP-LX-SM1550-10-BIDI |
GE SFP single-mode, single-fiber bidirectional (10Km, TX1310/RX1550, LC, DDM) GE SFP single-mode, single-fiber bidirectional (10Km, TX1550/RX1310, LC, DDM) |
GSFP-LX-SM1310-20-BIDI GSFP-LX-SM1550-20-BIDI |
GE SFP single-mode, single-fiber bidirectional (20Km, TX1310/RX1550, LC, DDM) GE SFP single-mode, single-fiber bidirectional (20Km, TX1550/RX1310, LC, DDM) |
GSFP-LX-SM1310-40-BIDI GSFP-LX-SM1550-40-BIDI-1310 |
GE SFP single-mode, single-fiber bidirectional (40Km, TX1310/RX1550, LC, DDM) GE SFP single-mode, single-fiber bidirectional (40Km, TX1550/RX1310, LC, DDM) |
GSFP-LX-SM1490-80-BIDI GSFP-LX-SM1550-80-BIDI |
GE SFP single-mode, single-fiber bidirectional (80Km, TX1490/RX1550, LC, DDM) GE SFP single-mode, single-fiber bidirectional (80Km, TX1550/RX1490, LC, DDM) |
GSFP-LX-SM1490-120 GSFP-LX-SM1550-120 |
GE SFP single-mode, single-fiber bidirectional (120Km,TX1490/RX1550,LC,DDM) GE SFP single-mode, single-fiber bidirectional (120Km, TX1550/RX1490, LC, DDM) |
10GE Optical Modules |
|
SFP+SX |
TE SFP+ multi-mode (300m, 850nm, LC) |
SFP+LX-10 |
TE SFP+ single-mode (10Km, 1310nm, LC, DDM) |
SFP+LX-20 |
TE SFP+ single-mode (20Km, 1310nm, LC, DDM) |
SFP+LX-40 |
TE SFP+ single-mode (40Km, 1550nm, LC, DDM) |
SFP+LX-80 |
TE SFP+ single-mode (80Km, 1550nm, LC, DDM) |
SFP+LX-SM-1270-10 SFP+LX-SM-1330-10 |
10GE SFP+ single mode, single fiber bidirectional (10Km, TX1270/RX1330, LC, DDM) 10GE SFP+ single mode, single fiber bidirectional (10Km, TX1330/RX1270, LC, DDM) |
SFP+LX-SM-1270-20 SFP+LX-SM-1330-20 |
10GE SFP+ single mode, single fiber bidirectional (20Km, TX1270/RX1330, LC, DDM) 10GE SFP+ single mode, single fiber bidirectional (20Km, TX1330/RX1270, LC, DDM) |
SFP+LX-SM-1270-40 SFP+LX-SM-1330-40 |
10GE SFP+ single mode, single fiber bidirectional (40Km, TX1270/RX1330, LC, DDM) 10GE SFP+ single mode, single fiber bidirectional (40Km, TX1330/RX1270, LC, DDM) |
