Vender :BDCOM
Part Number : S2952
Bảo hành : 12 tháng
Made In : China

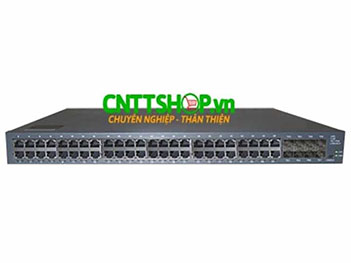

Switch BDCOM S2952 Series là một bộ chuyển mạch truy nhập thông minh POE thế hệ mới được thiết kế dành cho mạng IP của nhà khai thác và mạng doanh nghiệp. Dựa trên phần cứng hiệu suất cao và nền tảng BDROS, nó hỗ trợ các chức năng như ACL, QinQ và QoS. Chế độ quản lý đơn giản của nó và cài đặt linh hoạt có thể đáp ứng các yêu cầu của bất kỳ kịch bản phức tạp.
Item | Description |
Backplane | 256Gbps |
Forwarding rate | 138Mpps |
MAC | 32K |
Ports |
48 gigabit Base-T ports, 4 gigabit SFP ports; 4 GE/10GE SFP+ ports |
Dimensions(mm) (W×H×D) | 442.5×315×44 |
Consumption | <55W |
POE power | NA |
POE/POE+ | NA |
Power supply |
AC: 100V-240V, 50Hz±10% DC: -36V~-72V |
Environment |
Operating temperature and humidity: 0℃-50℃, 10%-90% non-condensing Storage temperature and humidity: -20℃-70℃;5%-95% non-condensing |
MAC switching function |
Static configuration and dynamically learning of MAC address Check and delete MAC address Configuring of MAC address aging time Limit on MAC address learning number MAC address filtering function Black-hole MAC items |
VLAN |
4K VLAN entries GVRP 1:1 and N:1 VLAN Mapping QinQ and selective QinQ Private VLAN |
STP |
802.1D (STP), 802.1W (RSTP), 802.1S (MSTP) BPDU protection, root protection and ring protection |
Multicast |
IGMP v1/v2/v3 IGMP Snooping IGMP Fast Leave multicast group policy and multicast number limit multicast traffic cross VLAN duplication |
IPv4 |
Static routing, RIP v1/v2, OSPF, BGP Strategy routing Load balance through equivalent routing BFD for OSPF, BGP |
IPv6 |
ICMPv6, DHCPv6, ACLv6, IPv6 Telnet IPv6 Neighbor Discovery Path MTU Discovery MLD v1/v2 MLD Snooping |
QoS |
Traffic classification of L2/L3/L4 protocol headers CAR traffic control 802.1P/DSCP priority remark Multiple queuing algorithms such as SP, WRR or SP+WRR Tail-Drop, WRED Traffic supervision and traffic shaping |
Security features |
Identification and filtering of L2/L3/L4 based ACL Defend against DDoS attack, SYN Flood attack of TCP and UDP Flood attack Suppression of broadcast, multicast and unknown unicast packet. Port isolation Port Security, IP+MAC+port binding DHCP Snooping, DHCP Option 82 IEEE 802.1x authentication Radius, BDTacacs+ authentication Command line authority control based on user levels |
Reliability |
Static/LACP link aggregation EAPS and ERPS ISSU uninterrupted system upgrade |
Management |
Console, Telnet, SSH 2.0 WEB based management SNMP v1/v2/v3 Upload and download of TFTP files RMON |
Optical Modules |
|
100M Optical Modules |
|
FSFP-SX-1310 |
100M SFP multi-mode (2Km, 1310nm, LC, DDM) |
FSFP-LX-15 |
100M SFP single mode (15Km, 1310nm, LC, DDM) |
FSFP-LX-40 |
100M SFP single mode (40Km, 1310nm, LC, DDM) |
FSFP-ZX-80 |
100M SFP single mode (80Km,1550nm, LC, DDM) |
FSFP-LX-SM1310-20-BIDI FSFP-LX-SM1550-20-BIDI |
100M SFP single mode, single core bidirectional (20Km, TX1310/RX1550, LC, DDM) 100M SFP single mode, single core bidirectional (20Km, TX1550/RX1310, LC, DDM) |
FSFP-LX-SM1310-40-BIDI FSFP-LX-SM1550-40-BIDI |
100M SFP single mode, single core bidirectional (40Km, TX1310/RX1550, LC, DDM) 100M SFP single mode, single core bidirectional (40Km, TX1550/RX1310, LC, DDM) |
FSFP-LX-SM1310-80-BIDI FSFP-LX-SM1550-80-BIDI |
100M SFP single mode, single core bidirectional (80Km, TX1310/RX1550, LC, DDM) 100M SFP single mode, single core bidirectional (80Km, TX1550/RX1310, LC, DDM) |
GE Optical Modules |
|
GSFP-TX-B |
GE SFP-to-RJ45 module |
GSFP-SX-D |
Gigabit SFP multi-mode (500m, 850nm, LC, DDM) |
GSFP-LX-10-D |
Gigabit SFP single mode (10Km, 1310nm, LC, DDM) |
GSFP-LX-20-D |
Gigabit SFP single mode (20Km, 1310nm, LC, DDM) |
GSFP-LX-40-D |
Gigabit SFP single mode (40Km, 1310nm, LC, DDM) |
GSFP-ZX-80-D |
Gigabit SFP single mode (80Km, 1550nm, LC, DDM) |
GSFP-ZX-120-D |
Gigabit SFP single mode (120Km, 1550nm, LC, DDM) |
GSFP-LX-SM1310-10-BIDI GSFP-LX-SM1550-10-BIDI |
Gigabit SFP single mode, single core bidirectional (10Km, TX1310/RX1550, LC, DDM) Gigabit SFP single mode, single core bidirectional (10Km, TX1550/RX1310, LC, DDM) |
GSFP-LX-SM1310-20-BIDI GSFP-LX-SM1550-20-BIDI |
Gigabit SFP single mode, single core bidirectional (20Km, TX1310/RX1550, LC, DDM) Gigabit SFP single mode, single core bidirectional (20Km, TX1550/RX1310, LC, DDM) |
GSFP-LX-SM1310-40-BIDI GSFP-LX-SM1550-40-BIDI-1310 |
Gigabit SFP single mode, single core bidirectional (40Km, TX1310/RX1550, LC, DDM) Gigabit SFP single mode, single core bidirectional (40Km, TX1550/RX1310, LC, DDM) |
GSFP-LX-SM1490-80-BIDI GSFP-LX-SM1550-80-BIDI |
Gigabit SFP single mode, single core bidirectional (80Km, TX1490/RX1550, LC, DDM) Gigabit SFP single mode, single core bidirectional (80Km, TX1550/RX1490, LC, DDM) |
GSFP-LX-SM1490-120 GSFP-LX-SM1550-120 |
GE SFP single mode, single core bidirectional (120Km, TX1490/RX1550, LC, DDM) Gigabit SFP single mode, single core bidirectional (120Km, TX1550/RX1490, LC, DDM) |
10GE Optical Modules |
|
SFP+SX |
10GE SFP+ multi-mode (300m, 850nm, LC) |
SFP+LX-10 |
10GE SFP+ single mode (10Km, 1310nm, LC, DDM) |
SFP+LX-20 |
10GE SFP+ single mode (20Km, 1310nm, LC, DDM) |
SFP+LX-40 |
10GE SFP+ single mode (40Km, 1550nm, LC, DDM) |
SFP+LX-80 |
10GE SFP+ single mode (80Km, 1550nm, LC, DDM) |
SFP+LX-SM-1270-10 SFP+LX-SM-1330-10 |
10GE SFP single mode, single core bidirectional (10Km, TX1270/RX1330, LC, DDM) 10GE SFP single mode, single core bidirectional (10Km, TX1330/RX1270, LC, DDM) |
SFP+LX-SM-1270-20 SFP+LX-SM-1330-20 |
10GE SFP single mode, single core bidirectional (20Km, TX1270/RX1330, LC, DDM) 10GE SFP single mode, single core bidirectional (20Km, TX1330/RX1270, LC, DDM) |
SFP+LX-SM-1270-40 SFP+LX-SM-1330-40 |
10GE SFP single mode, single core bidirectional (40Km, TX1270/RX1330, LC, DDM) 10GE SFP single mode, single core bidirectional (40Km, TX1330/RX1270, LC, DDM) |
