| Specifications |
| Chassis |
| SKU/PID |
C9350-24P-E |
| Dimensions (H x W x D) |
4.4 x 44.5 x 38.3 cm
1.73 x 17.5 x 15.1 inch |
| Weight with default power supply |
6.26 kg |
| Input voltage |
AC: 110V to 230V
DC: -36V to-72 VDC
|
| Operating temperature |
-5° to 45° C (23° to 113° F) up to 6000 feet (about 1.83 km)
-5° to 40° C (23° to 104° F) up to 10,000 feet (about 3.05 km) |
| Storage temperature |
-40° to 75° C
(40° to 167° F) |
| Relative humidity, operating and non-operating, non-condensing |
10% to 95%, Non-condensing |
| Mean time between failures (MTBF) (hours) |
342720 |
| Maximum chassis bandwidth |
1.3 Tbps |
| Number of power supply bays |
3 |
| Minimum number of power supplies |
1 |
| Power supplies supported |
3 |
| Number of fan-tray bays |
3 |

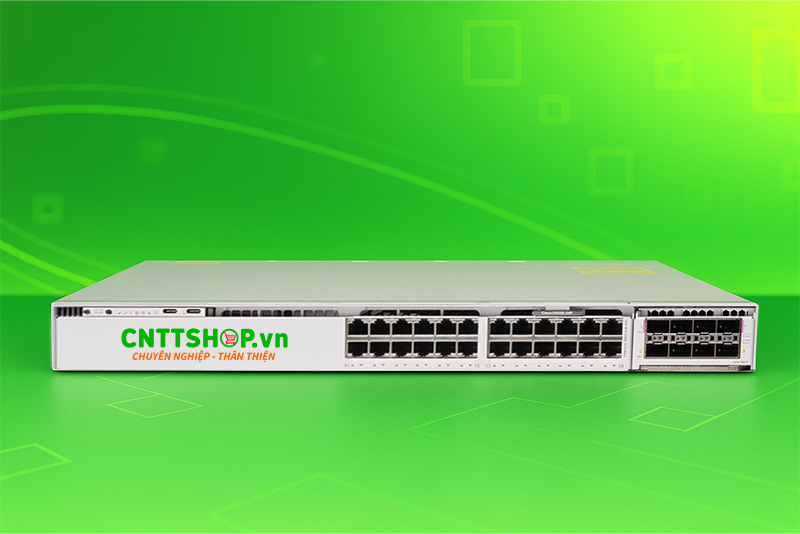

| Front-panel components |
Uplink network module slot
USB Type C console port
USB Type C host port
System air intake
System LED
Mode button
|
| Rear-panel components |
Power supply modules
Fan modules
StackWise 1.6T port connectors
StackPower connectors
USB 3.0 SSD slot
CONSOLE (RJ-45 console)
MGMT (RJ-45 10/100/1000 management port)
|
| Ports |
| RJ-45 Ports |
24x 10M/100M/1G, PoE+ 30W. |
| Uplink Ports |
Modular uplinks of 2- or 4-port dual-rate 100G/40G, or 8-port multi-rate 50G/25G/10G/1G |
| Bandwidth |
| Bandwidth specification |
448G |
| Switching capacity with stacking |
2048G |
| Forwarding rate (MPPS) |
333.312 |
| Forwarding rate with stacking (MPPS) |
1523.712 |
| SDM ASIC |
| MAC addresses |
64,000 |
| IP host routes |
64,000 |
| IP LPM routes |
192,000 |
| IP multicast routes |
8,000 |
| IGMP/MLD snooping |
8000 |
| Security/Object groups |
24,000 |
| NetFlow entries |
32,000 ingress, 32,000 egress |
| Security ACLs |
5000 - 32,000 |
| QoS ACLs |
1000 |
| PBR/NAT |
4000 |
| GRE Tunnels |
1024 |
| Performance and scalability features |
| System switching |
Up to 500G |
| ASIC switching capacity |
Up to 1.3 Tbps (500G switching traffic + 800G stack) |
| ASICs |
2x A100 |
| Forwarding rate |
3 Bpps (1.5 Bpps per ASIC) |
| DRAM |
16 GB |
| Flash |
18 GB |
| SSD capacity |
Up to 240 GB |
| VLAN IDs |
4094 |
| PVST instances |
Up to 1000 |
| STP virtual ports (Port*VLANs) for PVST |
16,000 |
| STP virtual ports (Port* VLANs) for MST |
100,000 |
| Switched Virtual Interfaces (SVIs) |
2000 |
| Jumbo frames |
9216 |
| Total number of MAC addresses |
Up to 64,000 |
| Total number of IPv4 routes |
Up to 192,000 |
| Total number of IPv6 routes |
Up to 96,000 |
| Address Resolution Protocol (ARP) entries |
Up to 64,000 |
| Neighbor Discovery Protocol (NDP) entries |
Up to 4000 |
| IGMP/MLD Snooping entries |
Up to 8000/4000 |
| Multicast routes |
Up to 8000/4000 |
| QoS ACL scale (IPv4/IPv6) |
Up to 2000 |
| Security ACL scale (IPv4/IPv6) |
Up to 5000/25001 |
| NetFlow entries (IPv4/IPv6) |
Up to 64,000 |
| Packet buffer |
Up to 36 MB (18 MB per ASIC) |
| Stacking |
| Stacking support |
StackWise-1.6T |
| Stacking bandwidth support |
1.6 Tbps |
| Optional stacking hardware |
StackWise cable |
| Number of members |
8 |
| Supported stack members |
Stacks with other Cisco C9350 models at StackWise-1.6T speeds with same license level |
| StackPower+ |
| CAB-SPWR-35CM= |
Cisco Catalyst StackPower cable 35cm spare |
| CAB-SPWR-100CM= |
Cisco Catalyst StackPower cable 100cm spare |
| License |
| License Cisco Switching Essentials |
Patch/SMU lifecycle management automation
Basic Packet Capture (PCAP)
Software Image Management (SWIM) Automation
Overall health dashboard
Overall health dashboard for device, network, application and client for 24 hours only
Network Plug and Play (PnP) provisioning application
Cisco DNA Service for Bonjour LAN
Compliance – Regulatory/Basic
Basic Device 360, Client 360, and Network Health Insights
Out-of-box reports
Patch/SMU lifecycle management
Essential switch capabilities
Layer 3 routed access
Programmability, NETCONF/RESTCONF/gRPC/YANG
Zero-touch provisioning
128-bit MACsec encryption
Advanced telemetry SPAN, RSPAN, ERSPAN
Streaming telemetry and visibility
Cisco trustworthy solutions
High availability – Basic
Cisco IOS Embedded Event Manager (EEM)
Third-party API integration
Sampled NetFlow
|
