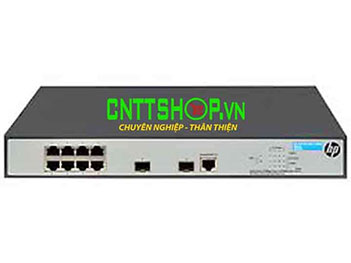

Thiết bị chuyển mạch HPE JG537A OfficeConnect 1910 8 PoE+ Switch

8 RJ-45 autosensing 10/100 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type
100BASE-TX, IEEE 802.3at PoE+); Duplex: half or full
2 dual-personality ports; each port can be used as a RJ 45 10/100/1000 Mbps port (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) or as a SFP 100/1000 Mbps slot (IEEE 802.3u Type 100BASE-FX, IEEE 802.3z Type 1000BASE-X)
1 RJ-45 console port to access limited CLI port
Supports a maximum of 8 autosensing 10/100 ports plus 2 dual-personality ports either RJ-45 10/100/1000 port or SFP 100/1000 slot

Dimensions: 12.99(w) x 9.06(d) x 1.73(h) in (33 x 23 x 4.4 cm) (1U height)
Weight: 4.63 lb (2.1 kg)

100 Mb Latency < 5 µs
1000 Mb Latency < 5 µs
ThrougHPEut up to 4.2 Mpps (64-byte packets)
Switching capacity: 5.6 Gb/s
MAC address table size: 8192 entries

Operating temperature: 32°F to 104°F (0°C to 40°C)
Operating relative humidity: 5% to 95%, noncondensing
Nonoperating/Storage temperature:-40°F to 158°F (-40°C to 70°C)
Nonoperating/Storage relative humidity:15% to 95% @ 140°F (60°C)
Altitude: up to 10,000 ft (3 km)
Acoustic: Power: 0 dB no fan

Frequency: 50/60 Hz
Voltage: 100 - 240 VAC, rated
Maximum power rating: 90 W
PoE power: 62 W
Notes: Maximum power rating and maximum heat dissipation are the worst-case theoretical : maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated

FCC part 15 Class A; VCCI Class A; EN 55022 Class A; CISPR 22 Class A; EN 55024; EN 61000-3-2 2000, 61000-3-3; ICES-003 Class A
