| Specifications |

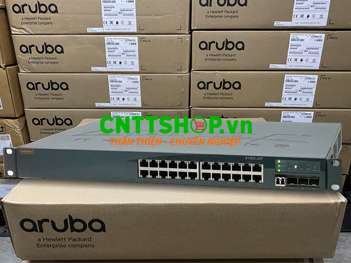

| Datasheet Aruba S1500-24P JW671A |
| Physical Interfaces |
| Port |
- 24x10/100/1000BASE-T PoE/PoE+ RJ-45
- 4x1000BASE-X SFP
- RJ-45/mUSB console port (RS-232)
- Out-of-band 10/100/1000BASE-T management port
- USB interface for software/configuration files
|
| Common interface feature support |
- Diagnostic LEDs (link/admin/duplex/PoE/speed/fault)
- Auto-negotiation and auto-MDI/MDIX support
- Time domain reflectometry |
| PoE feature support |
- IEEE 802.3af: PoE (15.4 watts)
- IEEE 802.3at: PoE+ (30 watts)
- Pre-standard/Legacy PoE
- Aruba efficient PoE (priority, guard-band and time range) |
| Performance |
| Switching capacity |
56 Gbps |
| Forwarding rate |
41.5 Mpps |
| Power Options |
Autosensing 100-240 VAC, 580 watts |
| PoE budget |
400 watts |
| Layer 2 Features And Scaling |
- MAC addresses per system: 8,000
- Jumbo frames: 9,216 bytes
- Number of VLANS: 4,094
- Port- and MAC-based VLAN
- IEEE 802.1Ab: Link-layer discovery protocol (LLDP)
+ Device discovery and advertisement
+ Voice VLAN support using LLDP-MED
- Cisco discovery protocol (CDP)
+ Device discovery
+ Voice VLAN support
- IEEE 802.1Q: VLAN tagging
- GArP VLAN registration Protocol (GVrP)
- IEEE 802.1D: Spanning tree protocol (STP)
- IEEE 802.1w: rapid reconfiguration of spanning Tree protocol (RSTP)
- IEEE 802.1s: Multiple spanning trees protocol (MSTP)
- Maximum number of supported instances: 64
rapid per-VLAN spanning tree plus (PVST+)
Spanning tree protocol features:
+ Portfast
+ Root guard
+ Loop guard
+ BPDU guard
- Aruba loop protect
- Link aggregation groups
+ Static
+ IEEE 802.3ad: Link-aggregation control protocol (LACP)
+ Number of link aggregation groups: 8
+ Number of ports per aggregation group: 8
- Aruba hot Standby Link (hSL)
- IEEE 802.3ah: Ethernet operations, administration and maintenance (OAM)
- Layer 2 Generic routing Encapsulation (GrE)
- Aruba AirGroup
|
| Layer 3 Features And Scaling |
- Unicast routes: 1500
- Routed VLAN Interface (rVI)
- Loopback interface
- Multinetting
- Static routing
- Open shortest path first (oSPF) v2
- Equal Cost multi-Path
- Route filtering
- DhCP server/client
- DhCP relay (including option 82)
- Network time protocol (NTP)
- Network Address Translation
- IP directed broadcast |
| Security |
- 802.1X
- MAC authentication
- Captive portal
- RADIUS (device management, 802.1X, accounting)
- RADIUS fail open
- TACACS+ (device management, accounting)
- LDAP (802.1X)
- Digital certificates
- Internal user database
- Aruba ClearPass Policy Manager downloadable roles
- Aruba Tunneled Node
- Access control lists (ACLs)
- Storm control
- IPv6 router-advertisement (RA) guard
- DhCP guard
- MAC limiting
- Site-to-site IPsec VPN |
| Quality Of Service |
- 802.1p
- DSCP
- IP precedence
- QoS trust (802.1p/DSCP/auto)
- QoS classification by ACL (L3/L4), user and interface
- Policer classification by ACL (L3/L4), user and interface
- Egress strict priority queuing
- Four hardware queues per port |
| Management And Monitoring |
- Command line interface (serial, telnet, SShv2)
- Graphical user interface (HTTP/HTTPS)
- Aruba Central cloud-based network management
- AirWave network management
- DHCP auto-configuration
- SNMP v1, v2c, v3
- IPv6 management
- Port mirroring (single destination)
- Remote monitoring (RMON) |
| Dimensions (H x W x D) |
1.75 in x 17.5 in x 12.5 in (4.4 cm x 44.5 cm x 30.5 cm) |
| Weight |
10.75 lbs (4.88 kg) |
| Environmental |
Operating temperature: 32°F to 122°F (0°C to 50°C) |
| Safety Certifications |
- uL-uL60950-1 (second edition)
- C-uL to CAN/CSA 22.2 No.60950-1 (second edition)
- TuV/GS to EN 60950-1, Amendment A1-A4, A11
- Cb-IEC60950-1, all country deviations |
| Electromagnetic Compatibility Certifications |
- FCC 47CFr Part 15, Class A
- EN 55022 Class A
- ICES-003 Class A
- VCCI Class A
- AS/NZS CISPR 22 Class A
- CISPR22 Class A
- EN 55024 |
| Environmental Certifications |
Reduction of hazardous Substances 5 (rohS-5) |
