| Datasheet N9K-C93180YC-FX3 |
| Specifications |
| Ports |

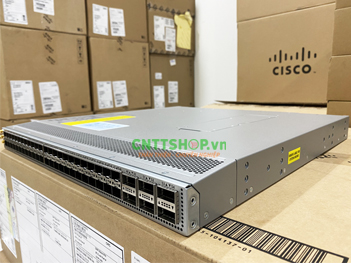

48 x 1/10/25-Gbps and 6 x 40/100-Gbps QSFP28 ports |
| Downlink supported speeds |
1/10/25-Gbps Ethernet |
| CPU |
6 cores |
| System memory |
Upto 32 GB |
| SSD drive |
128 GB |
| System buffer |
40 MB |
| Management ports |
1 RJ-45 port |
| USB ports |
1 |
| 1PPS |
GPS 1PPS input or output |
| Hardware Performance and Scalability Specifications |
| Maximum number of Longest Prefix Match (LPM) routes |
1,792,000 |
| Maximum number of IP host entries |
1,792,000 |
| Maximum number of MAC address entries |
512,000 |
| Maximum number of multicast routes |
128,000 |
| Number of Interior Gateway Management Protocol (IGMP) snooping groups |
Shipping: 8,000
Maximum: 32,000
|
| Maximum number of Cisco Nexus 2000 Series Fabric Extenders per switch |
16 |
| Maximum number of Access Control List (ACL) entries |
Single-slice forwarding engine:
5000 ingress
2000 egress
|
| Maximum number of VLANs |
4096 |
| Number of Virtual Routing and Forwarding (VRF) instances |
Shipping: 1,000
Maximum: 16,000
|
| Maximum number of ECMP paths |
64 |
| Maximum number of port channels |
512 |
| Maximum number of links in a port channel |
32 |
| Number of active SPAN sessions |
4 |
| Maximum number of VLAN’s in Rapid per-VLAN Spanning Tree (RPVST) instances |
3,967 |
| Maximum number of Hot-Standby Router Protocol (HSRP) groups |
490 |
| Number of Network Address Translation (NAT) entries |
1,023 |
| Maximum number of Multiple Spanning Tree (MST) instances |
64 |
| Flow-table size used for Cisco Tetration Analytics platform |
64,000 |
| Number of Queues |
8 |
| Power |

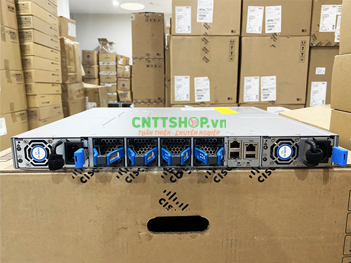

| Power supplies (up to 2) |
650W AC, 930W DC, or 1200W HVAC/HVDC |
| Typical power (AC/DC) |
325W |
| Maximum power (AC/DC) |
600W |
| Input voltage (AC) |
100 to 240V |
| Input voltage (High-Voltage AC [HVAC]) |
200 to 277V |
| Input voltage (DC) |
–48 to –60V |
| Input voltage (High-Voltage DC [HVDC]) |
–240 to –380V |
| Frequency (AC) |
50 to 60 Hz |

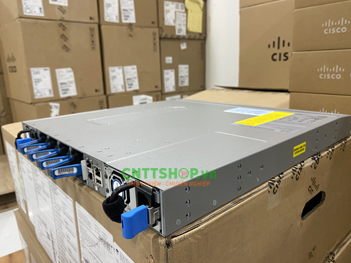

| Fans |
4 |
| Airflow |
Port-side intake and exhaus |
| Acoustics |
Port Side Exhaust:
Fan speed at 50%:63.4 dBA
Fan speed at 70%:74.3 dBA
Fan speed at 100%: 83.4 dBA
Port Side Intake:
Fan speed at 50%:64.6 dBA
Fan speed at 70%:76.1 dBA
Fan speed at 100%: 85.4 dBA |
| Physical dimensions & Weight |
| Physical dimensions (H x W x D) |
1.72 x 17.3 x 19.6 in (4.4 x 43.9 x 49.6 cm) |
| Cisco Nexus 93180YC-FX3 without power supplies or fans |
21 lb (9.52 kg) |
| 650W AC power supply |
2.42 lb (1.1 kg) |
| 930W DC power supply |
2.42 lb (1.1 kg) |
| 1200W HVDC/HVAC power supply |
2.42 lb (1.1 kg) |
| Fan tray: NXA-FAN-35CFM-PE or NXA-FAN-35CFM-PI |
0.26 lb (0.12 kg) |
| Environmental properties |
| Operating temperature |
32 to 104°F (0 to 40°C) |
| Nonoperating (storage) temperature |
–40 to 158°F (–40 to 70°C) |
| Humidity |
5 to 95% (noncondensing) |
| Altitude |
0 to 13,123 ft (0 to 4000m) |
| RoHS compliance |
Yes |
| MTBF |
288,760 Hours |
| Minimum ACI image |
ACI-N9KDK9-15.1.3 |
| Minimum NX-OS image |
NXOS-10.1.1/NXOS-9.3.7 |
