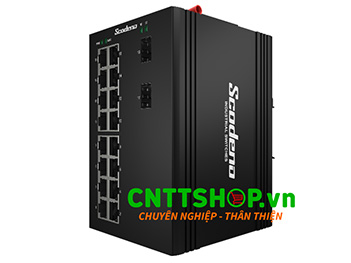

Switch công nghiệp Scodeno V-IS10G-16P-2S
V-IS10G-16P-2S là switch công nghiệp chính hãng Scodeno có 16 Port 10/100/1000 POE+ 480W, 2 Port Gigabit Fiber (SFP) Uplink, Din rail, Support IEEE802.3af/at, Dual Power DC48-57V, Each port support Max 30W, -40℃ to +75℃. Nó có thể đáp ứng tốt hơn các yêu cầu triển khai của vận chuyển đường sắt, thành phố an toàn, giao thông thông minh, giám sát ngoài trời và các môi trường khắc nghiệt khác.
Thông số kỹ thuật
| Provider Mode Ports | |
| Fixed port | 2*1000 Base-X， 16*10/100/1000Base-T |
| Power interface | Phoenix terminal, redundant dual power supply |
| LED Indicators | PWR，Link/ACT LED |
| Cable Type & Transmission Distance | |
| Twisted-pair | 0-100m（CAT5e,CAT6 |
| Monomode optical fiber | 20/40/60/80/100KM |
| Multimode (optical) fiber | 550m |
| Network Topology | |
| Ring topology | Unsupported |
| Star topology | Support |
| Bus topology | Support |
| Tree Topology | Support |
| Hybrid topology | Support |
| Electrical Specifications | |
| Input voltage | DC12-58V（Non-PoE）, DC48~58V(PoE) |
| Total Power consumption | <26W(Non-PoE); <386W(PoE) |
| PoE Support | |
| PoE port | 1~16 |
| PoE Protocol | 802.3af，802.3at |
| Pin Assignment | 12+, 36- |
| Layer 2 Switching | |
| Switching capacity | 68G |
| Packet forwarding rate | 50.59Mpps |
| MAC address table | 16K |
| Buffer | 12M |
| Forwarding delay | <10us |
| MDX/MIDX | Support |
| MDX/MIDX | Support |
| Jumbo Frame | Support 10K Bytes |
| Environment | |
| Operating temperature | -40℃~+75℃ The device is tested for 4 hours at temperatures in 85℃ |
| Storage temperature | -40℃~+85℃ |
| Relative humidity | 5%~95% non-condensing |
| Thermal methods | Fanless, natural cooling |
| MTBF | 100,000 hours |
| Mechanical Dimensions | |
| Product size | 94*104*143mm |
| Installation Method | DIN rail |
| Weight | 1KG around |
| EMC & Ingress Protection | |
| IP Level | IP40 |
| Surge protection of Power | IEC 61000-4-5 Level X（6KV/6KV）（8/20us) |
| Surge protection of Ethernet port | IEC 61000-4-5 Level X（4KV/4KV）（10/700us） |
| RS | IEC 61000-4-3 Level 3（10V/m） |
| EFI | IEC 61000-4-4 Level 3（1V/2V） |
| CS | IEC 61000-4-6 Level 3（10V/m) |
| PFMF | IEC 61000-4-8 Level 4（30A/m） |
| DIP | IEC 61000-4-11 Level 3 （10V) |
| ESD | IEC 61000-4-2 Level 4（8K/15K） |
| Free fall | 0.5m |
| Authentication | |
| Authentication | CCC, CE, FCC, RoHS |
| Accessories | |
| Accessories | Device, Terminals, Specification, Certificate, power adapter(optional) |
| Optional model | |
| XPTN-9000-65-2GX16GT | 2*1000Mbps SFP Port 16*10/100/1000Mbps RJ45 Port |
| XPTN-9000-65-2GX16GP | 2*1000Mbps SFP Port 16*10/100/1000Mbps RJ45 Port, PoE & PoE+ |
| XPTN-9000-65-2GX16GPB | 2*1000Mbps SFP Port 16*10/100/1000Mbps RJ45 Port, PoE & PoE+, 2 Port support++ |
