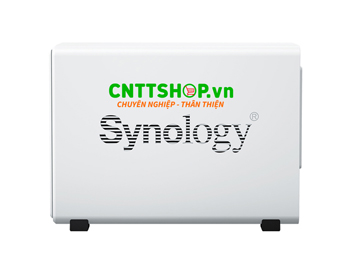

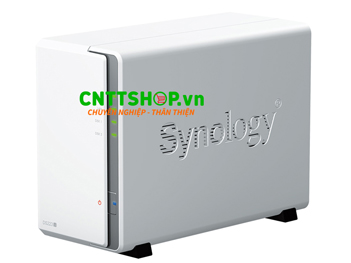

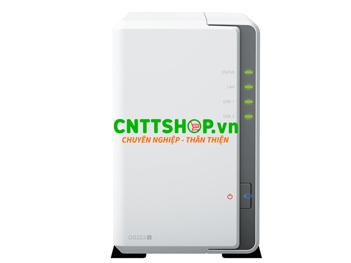

Thiết bị lưu trữ mạng NAS Synology DS223j 2-Bay

CPU

CPU Model

Realtek RTD1619B

CPU Quantity

1

CPU Core

4

CPU Architecture

64-bit

CPU Frequency

1.7 GHz

Hardware Encryption Engine

yes

Memory

System Memory

1 GB DDR4 non-ECC

Notes

Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.

Storage

Drive Bays

2

Compatible Drive Type

• 3.5" SATA HDD

• 2.5" SATA SSD (with optional 2.5" Disk Holder)

Hot Swappable Drive

no

Notes

"Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

External Ports

RJ-45 1GbE LAN Port

1

USB 3.2 Gen 1 Port

2

Notes

• This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.

• The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.

Appearance

Size (Height x Width x Depth)

165 mm x 100 mm x 225.5 mm

Weight

0.88 kg

Others

System Fan

92 mm x 92 mm x 1 pcs

Fan Speed Mode

• Full-Speed Mode

• Cool Mode

• Quiet Mode

• Low-power Mode

Brightness Adjustable Front LED Indicators

yes

Power Recovery

yes

Noise Level

18.2 dB(A)

Scheduled Power On / Off

yes

Wake on LAN / WAN

yes

Power Supply Unit / Adapter

60 watts

AC Input Power Voltage

100V to 240V AC

Power Frequency

50/60 Hz, Single Phase

Power Consumption

16.31 watts (Access)

4 watts (HDD Hibernation)

British Thermal Unit

55.62 BTU/hr (Access)

13.64 BTU/hr (HDD Hibernation)

Notes

• For more information on how power consumption is measured, refer to this article.

• Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%

Temperature

Operating Temperature

0°C to 40°C (32°F to 104°F)

Storage Temperature

-20°C to 60°C (-5°F to 140°F)

Relative Humidity

5% to 95% RH

Certification

• FCC

• CE

• BSMI

• VCCI

• RCM

• UKCA

• EAC

• CCC

• KC

Warranty

2-year hardware warranty, extendable to 4 years with Extended Warranty Plus

• The warranty period starts from the purchase date as stated on your purchase receipt.

• Extended Warranty Plus is only available in Europe and North America. EW201/EW202 is only available in Asia, Africa, and Oceania. For exact availability information please visit their respective websites.

Environment

RoHS Compliant

Packaging Content

• Main Unit X 1

• Accessory Pack X 1

• AC Power Adapter X 1

• AC Power Cord X 1

• RJ-45 LAN Cable X 1

• Quick Installation Guide X 1

Optional Accessories

• Plus Series 3.5" SATA HDD: HAT3300 Series

• Disk Holder: Type C
