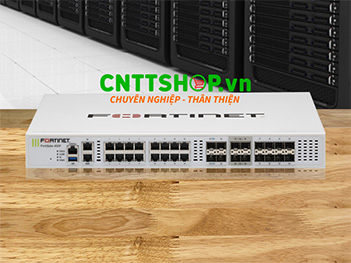

| Datasheet Fortigate FG-400F-BDL-950-60 |
| Specifications |
| Interfaces and Modules |
| Hardware Accelerated GE RJ45 Interfaces |
16 |
| Hardware Accelerated GE SFP Slots |
8 |
| Hardware Accelerated 10GE SFP+ Slots |
4 |
Hardware Accelerated 10GE SFP+ Ultra Low
Latency Slots |
4 |
| GE RJ45 Management Ports |
2 |
| USB Ports |
1 |
| RJ45 Console Port |
1 |
| Onboard Storage |
0 |
| Trusted Platform Module (TPM) |
yes |
| Included Transceivers |
2x SFP (SX 1 GE) |
| System Performance Enterprise Traffic Mix |
| IPS Throughput |
12 Gbps |
| NGFW Throughput |
10 Gbps |
| Threat Protection Throughput |
9 Gbps |
| System Performance and Capacity |
|
IPv4 Firewall Throughput
(1518 / 512 / 64 byte, UDP) |
79.5 / 78.5 / 70 Gbps |
IPv6 Firewall Throughput
(1518 / 512 / 64 byte, UDP) |
79.5 / 78.5 / 70 Gbps |
| Firewall Latency (64 byte, UDP) |
4.19 μs / 2.5 μs* |
| Firewall Throughput (Packet per Second) |
105 Mbps |
| Concurrent Sessions (TCP) |
7.8 Million |
| New Sessions/Second (TCP) |
500 000 |
| Firewall Policies |
10 000 |
| IPsec VPN Throughput (512 byte) |
55 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels |
2000 |
| Client-to-Gateway IPsec VPN Tunnels |
50 000 |
| SSL-VPN Throughput |
3.6 Gbps |
Concurrent SSL-VPN Users
(Recommended Maximum, Tunnel Mode) |
5000 |
SSL Inspection Throughput
(IPS, avg. HTTPS) |
8 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) |
6000 |
SSL Inspection Concurrent Session
(IPS, avg. HTTPS) |
800 000 |
| Application Control Throughput (HTTP 64K) |
28 Gbps |
| CAPWAP Throughput (HTTP 64K) |
65 Gbps |
| Virtual Domains (Default / Maximum) |
10 / 10 |
Maximum Number of FortiSwitches
Supported |
72 |
Maximum Number of FortiAPs
(Total / Tunnel) |
512 / 256 |
| Maximum Number of FortiTokens |
5000 |
| High Availability Configurations |
Active-Active, Active-Passive, Clustering |
| Dimensions and Power |
| Height x Width x Length (inches) |
1.75 x 17.0 x 15.0 |
| Height x Width x Length (mm) |
44.45 x 432 x 380 |
| Weight |
14.11 lbs (6.4 kg) |
| Form Factor |
Rack Mount, 1 RU |
AC Power Consumption
(Average / Maximum) |
154.8 W / 189.2 W |
| AC Power Input |
100–240V AC, 50/60Hz |
| AC Current (Maximum) |
6A |
| Heat Dissipation |
645.58 BTU/h |
| Power Supply Efficiency Rating |
80Plus Compliant |
Redundant Power Supplies
(Hot Swappable) |
Yes (Default dual AC PSU for 1+1 Redundancy) |
| Operating Environment and Certifications |
| Operating Temperature |
32°–104°F (0°–40°C) |
| Storage Temperature |
-31°–158°F (-35°–70°C) |
| Humidity |
5%–90% non-condensing |
| Noise Level |
LPA 48 dBA / LWA 55 dBA |
| Airflow |
Side and Front to Back |
| Operating Altitude |
Up to 10 000 ft (3048 m) |
| Compliance |
FCC Part 15 Class A, RCM,VCCI, CE, UL/cUL, CB |
| Certifications |
USGv6/IPv6 |
