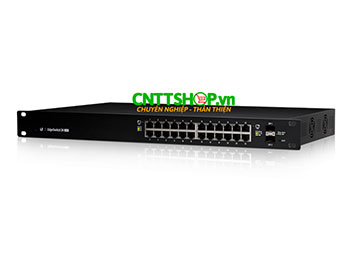

Unifi EdgeSwitch ES-24-250W Managed PoE+ Gigabit Switches with SFP.

Name: ES-24-250W
Brand: UNIFI
SKU: ES-24-250W
Availability: InStock
Rating: 5 (1 reviews)

Part Number : ES-24-250W
Bảo hành : 12 tháng
List Price : $
Made In : China
Stock : Liên hệ

Thiết bị chuyển mạch ES-24-250W một sản phẩm thuộc dòng EdgeMAX của Ubiquiti Networks. Switch ES-24-250W được trang bị PoE + Gigabit, quản lý hoàn toàn, mang lại hiệu suất mạnh mẽ và chuyển đổi thông minh cho các mạng đang phát triển.

View Datasheet ES-24-250W

EdgeSwitch cung cấp một bộ nâng cao các tính năng và giao thức chuyển đổi Lớp 2, đồng thời cũng cung cấp khả năng định tuyến Lớp 3.

Thiết bị chuyển mạch Unifi EdgeSwitch ES-24-250W

Thông số kỹ thuật.

Dimensions	485 x 43.7 x 285.4 mm (19.09 x 1.72 x 11.24")
Weight	4.7 kg (10.4 lb)
Total Non-Blocking Throughput	26 Gbps
Switching Capacity	52 Gbps
Forwarding Rate	38.69 Mpps
Max. Power Consumption	Includes PoE Output	Excludes PoE Output
	250W	30W
Power Method	100-240VAC/50-60 Hz, Universal Input
Power Supply	AC/DC, Internal, 250W DC
LEDs Per Port	RJ45 Data Ports	SFP Data Ports
	PoE, Speed/Link/Activity	Speed/Link/Activity
Networking Interfaces	(24) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1 Gbps SFP Ethernet Ports
Management Interface	(1) RJ45 Serial Port, Ethernet In/Out Band
Certifications	CE, FCC, IC
Wallmount	Yes
ESD/EMP Protection	Air: ±24 kV, Contact: ±24 kV
Operating Temperature	-5 to 40° C (23 to 104° F)
Operating Humidity	5 to 95% Noncondensing
Shock and Vibration	ETSI300-019-1.4 Standard
PoE Per Port
PoE Interfaces	POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) 24VDC Passive PoE (Pins 4, 5+; 7, 8-)
Max. PoE+ Wattage per Port by PSE	34.2W
Voltage Range 802.3at Mode	50–57V
Max. Passive PoE Wattage per Port	17W
24V Passive PoE Voltage Range	20-27V

Software Information
Core Switching Features	• ANSI/TIA-1057: LLDP-Media Endpoint Discovery (MED) • IEEE 802.1AB: Link Layer Discovery Protocol (LLDP) • IEEE 802.1D: Spanning Tree Compatibility • IEEE 802.1S: Multiple Spanning Tree Compatibility • IEEE 802.1W: Rapid Spanning Tree Compatibility • IEEE 802.1Q: Virtual LANs with Port-Based VLANs • IEEE 802.1p: Ethernet Priority with User Provisioning and Mapping • IEEE 802.1X: Port-Based Authentication with Guest VLAN Support • IEEE 802.3: 10BASE-T • IEEE 802.3u: 100BASE-T • IEEE 802.3ab: 1000BASE-T • IEEE 802.1ak: Virtual Bridged Local Area Networks - Amendment 07: Multiple Registration Protocol • IEEE 802.3ac: VLAN Tagging • IEEE 802.3ad: Link Aggregation • IEEE 802.3x: Flow Control • IEEE 802.1D-2004: Generic Attribute Registration Protocol: Clause 12 (G) • IEEE 802.1D-2004: Dynamic L2 multicast registration: Clause 10 (GMRP) • IEEE 802.1Q-2003: Dynamic VLAN registration: Clause 11.2 (GVRP) • RFC 4541: Considerations for Internet Group Management Protocol (IGMP) Snooping Switches
Advanced Layer 2 Features	• Broadcast Storm Recovery • Broadcast/Multicast/Unknown Unicast Storm Recovery • DHCP Snooping • IGMP Snooping Querier • Independent VLAN Learning (IVL) Support • Jumbo Ethernet Frame Support • Port MAC Locking • Port Mirroring • Protected Ports • Static MAC Filtering • TACACS+ • Voice VLANs • Unauthenticated VLAN • Internal 802.1X Authentication Server
Platform Specifications	• DHCP Server • Maximum Number of Pools: 128 • Maximum Number of Leases (Total): 2048 • Routing • Number of Routes: 16 • Number of Routing Interfaces: 15 • VLANs: 4093 • MAC Addresses: 16,384 • ARP Cache Size: 493 • MSTP Instances: 4 • LAGs: 6 • ACLs: 100 with 10 Rules per Port • Traffic Classes (Queues): 8
System Facilities	• Event and Error Logging Facility • Run-Time and Configuration Download Capability • PING Utility • FTP/TFTP Transfers via IPv4/IPv6 • Malicious Code Detection • BootP and DHCP • RFC 2021: Remote Network Monitoring Management Information Base Version 2 • RFC 2030: Simple Network Time Protocol (SNTP) • RFC 2819: Remote Network Monitoring Management Information Base • RFC 2865: RADIUS Client • RFC 2866: RADIUS Accounting • RFC 2868: RADIUS Attributes for Tunnel Protocol Support • RFC 2869: RADIUS Extensions • RFC 3579: RADIUS Support for EAP • RFC 3580: IEEE 802.1X RADIUS Usage Guidelines • RFC 3164: BSD Syslog Protocol
Management	• Web UI • Industry-Standard CLI • IPv6 Management • Password Management • Autoinstall Support for Firmware Images and Configuration Files • SNMP v1, v2, and v3 • SSH 1.5 and 2.0 • SSL 3.0 and TLS 1.0 • Secure Copy (SCP) • Telnet (Multi-Session Support)
Layer 3 Routing	• Static Routing
QoS	• Access Control Lists (ACLs), Permit/Deny Actions for Inbound IP and Layer 2 Traffic Classification Based on: Time-Based ACL Source/Destination IP Address TCP/UDP Source/Destination Port IP Protocol Type Type of Service (ToS) or Differentiated Services (DSCP) Field Source/Destination MAC Address EtherType IEEE 802.1p User Priority VLAN ID RFC 1858: Security Considerations for IP Fragment Filtering • Optional ACL Rule Attributes Assign Flow to a Specific Class of Service (CoS) Queue Redirect Matching Traffic Flows • Differentiated Services (DiffServ) Classify Traffic Based on Same Criteria as ACLs Mark the IP DSCP or Precedence Header Fields, Optional Police the Flow to a Specific Rate with Two-Color Aware Support RFC 2474: Definition of the Differentiated Services Field (DS field) in the IPv4 and IPv6 Headers RFC 2475: An Architecture for Differentiated Services RFC 2597: Assured Forwarding Per-Hop Behavior (PHB) Group RFC 3246: An Expedited Forwarding PHB RFC 3260: New Terminology and Clarifications for DiffServ • Class of Service (CoS) Queue Mapping Configuration AutoVoIP: Automatic CoS Settings for VoIP IP DSCP-to-Queue Mapping Configurable Interface Trust Mode (IEEE 802.1p, DSCP, or Untrusted) Interface Egress Shaping Rate Strict Priority versus Weighted Scheduling per Queue
