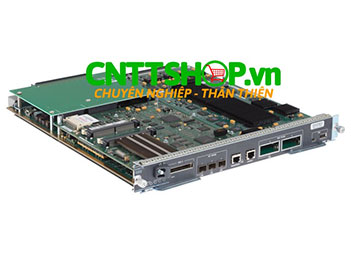

Cisco VS-S2T-10G Catalyst 6500 Series Supervisor Engine 2T
Cisco Part Number : VS-S2T-10G
Cisco Spare Part Number : VS-S2T-10G=
Bảo hành : 12 tháng
List Price : $28,000
Giá Bán : Liên hệ
Made In : Asia
Stock : Liên hệ
Cisco VS-S2T-10G Catalyst 6500 Supervisor 2T with 2 x 10GbE and 3 x 1GbE with MSFC5 PFC4 Module Card
Thông số kỹ thuật
|
Product |
Specifications |
|
IPv4 routing |
In hardware Up to 720 Mpps |
|
IPv6 routing |
In hardware Up to 390 Mpps |
|
L2 bridging |
In hardware Up to 720 Mpps |
|
MPLS |
MPLS in hardware to enable use of Layer 3 VPNs and EoMPLS tunneling. Up to 8192 VRFs with a total of up to 256K*forwarding entries per system.
|
|
VLAN |
4K
|
|
Bridge domains |
16k
|
|
VPLS |
In hardware (Up to 390 Mpps)
|
|
GRE |
In hardware (Up to 390 Mpps)
|
|
NAT |
Hardware assisted
|
|
MAC entries |
128k
|
|
Routes |
256K(IPv4) 128K (IPv6) |
|
Netflow entries |
512K
|
|
Multicast routes |
128K (IPv4) 128K (IPv6) |
|
Chassis compatibility |
- E-Series only: Cisco Catalyst 6503-E, 6504-E, 6506-E, 6509-E, 6509-V-E, 6513E
- C6807-XL
|
|
Switch fabric |
- 2.08 Tbps Crossbar Switch Fabric with 26 Fabric Channels
|
|
Line-card compatibility |
- C6800-P10G, C6800-8P10G-XL
- C6800-16P10G, C6800-16P10G-XL
- C6800-32P10G, C6800-32P10G-XL
- C6800-8P40G, C6800-8P40G-XL (only with the C6807-XL chassis, not with the 6500-E chassis)
- WS-X6908-10G-2T, WS-X6908-10G-2TXL
- WS-X6824-SFP-2T, WS-X6824-SFP-2TXL
- WS-X6848-SFP-2T, WS-X6848-SFP-2TXL
- WS-X6848-TX-2T, WS-X6848-TX-2TXL
- WS-X6816-10T-2T, WS-X6816-10T-2TXL
- WS-X6816-10G-2T, WS-X6816-10G-2TXL
- WS-X6904-40G-2T, WS-X6904-40G-2TXL
- WS-X6704-10GE with CFC
- WS-X6724-SFP with CFC
- WS-X6748-SFP with CFC
- WS-X6748-GE-TX with CFC
- WS-X6148A-RJ-45, WS-X6148A-45AF, WS-X6148-FE-SFP, WS-X6148A-GE-TX, WS-X6148A-GE-45AF, WS-X6148E-GE-45AT
With a DFC4 or DFC4XL upgrade (WS-F6k-DFC4-A, WS-F6k-DFC4-AXL) - WS-X6704-10GE
- WS-X6724-SFP
- WS-X6748-SFP
- WS-X6748-GE-TX
With a DFC4 or DFC4XL upgrade (WS-F6k-DFC4-E, WS-F6k-DFC4-EXL) - WS-X6716-10G-3C, WS-X6716-10G-3CXL
- WS-X6716-10T-3C, WS-X6716-10T-3CXL
|
|
Fan tray and power supply supported |
- 1400W for 6503-E
- 2700W for 6504-E
- 3000W AC or DC all other chassis
- 4000W AC or DC all other chassis
- 6000W AC or DC all other chassis
- 8700W AC all other chassis
|
|
Slot requirements |
Occupies the Supervisor slots as follows: - 3-slot E-chassis: slots 1 and 2
- 4-slot E-chassis: slots 1 and 2
- 6-slot E-chassis: slots 5 and 6
- 9-slot V-E chassis: slots 5 and 6
- 9-slot E-chassis: slots 5 and 6
- 13-slot E-chassis: slots 7 and 8
- C6807-XL; slots 3 and 4
|
|
Software compatibility |
- 12.2(50)SY and future releases
|
|
Optics and SFP options |
- X2-10GB-LR
- X2-10GB-SR
- X2-10GB-CX4
- X2-10GB-ER
- X2-10GB-LX4
- X2-10GB-LRM
- X2-10GB-ZR
- X2-10GB-DWDM
- CVR-X2-SFP10G - OneX Adapter
- SFP-H10GB-CU1M1 - 1 Meter Passive Cable
- SFP-H10GB-CU3M1 -3 Meter Passive Cable
- SFP-H10GB-CU5M1 - 5 Meter Passive Cable
- SFP-10G-SR
|
|
Service Modules |
- ACE 20, ACE 30, NAM-1, NAM-2, NAM-3, FWSM, ASA-SM, WiSM-1, WiSM-2
|
|
SW packages |
- IP BASE
- IP Services
- Advanced IP Services
- Advanced Enterprise Services
|
|
Connectivity management processor (CMP) |
- Integrated Connectivity Management Processor for improved Out-of-Band Management
|
|
DRAM |
- 2GB for Lite and XL (4GB upgrade with 2GB memory upgrade (2+2)
|
|
NVRAM |
- 4 MB
|
|
Compact Flash |
- 1GB
|
|
USB |
- USB base console and file system - Support for Host and Device
|
|
Management LED |
- Blue Beacon LED
|
|
Uplink ports |
- 3 x GE SFP Ports
- 2 x 10G X2 Ports
- 1 x 10/100/1000 Management Port
|
|
Console ports |
- One console port (RJ-45)
|
|
Reliability and availability |
- FSU (Fast software upgrade)
- SSO+NSF (Stateful Switchover + Nonstop Forwarding)
- OIR (Online insertion and removal) Hot Swap of power supplies, modules, fan trays and Supervisors
|
|
MIBs |
- MPLS LDP MIB, MPLS Label Switch Router (LSR) MIB, MPLS-TE MIB, MPLS VPN MIB; see software release notes for additional information
- Check the following MIB finder for more info:http://www.cisco.com/public/sw‑center/netmgmt/cmtk/mibs.shtml
|
|
Network management |
- Cisco Works
|
|
Physical specifications |
- (H x W x D): 1.73 x 14.4 x 16 in (4.4 x 36.6 x 40.6 cm)
- Weight: 12.0 lbs
|
|
Power consumption |
- 435W MAX
|
|
ECC |
- ECC Protection Support
|
|
Environmental conditions |
- Operating temperature: 32 to 104°F (0 to 40°C)
- Storage temperature: -40 to 167°F (-40 to 75°C)
- Relative humidity: 10 to 90 percent, noncondensing
|
Software part numbers
|
Software Part Number |
Description |
|
S2TAEK9-12250SY |
Cisco CAT6000-VS-S2T IOS ADV ENT SERV FULL ENCRYPT |
|
S2TAEK9N-12250SY |
Cisco CAT6000-VS-S2T IOS ADVANCED ENTERPRISE SERVICES NPE |
|
S2TAIK9-12250SY |
Cisco CAT6000-VS-S2T IOS ADVANCED IP SERVICES FULL ENCRYPT |
|
S2TAIK9N-12250S |
Cisco CAT6000-VS-S2T IOS ADVANCED IP SERVICES LAN ONLY NPE |
|
S2TIBK9-12250SY |
Cisco CAT6000-VS-S2T IOS IP BASE LAN ONLY FULL ENCRYPT |
|
S2TIBK9N-12250SY |
Cisco CAT6000-VS-S2T IOS IP BASE LAN ONLY NPE |
|
S2TISK9-12250SY |
Cisco CAT6000-VS-S2T IOS IP SERV LAN ONLY FULL ENCRYPT |
|
S2TISK9N-12250SY |
Cisco CAT6000-VS-S2T IOS IP SERV LAN ONLY NPE |
|
S2TIB-12250SY |
Cisco CAT6000-VS-S2T IOS IP BASE |
|
S2TIS-12250SY |
Cisco CAT6000-VS-S2T IOS IP SERV |
