Feature
|

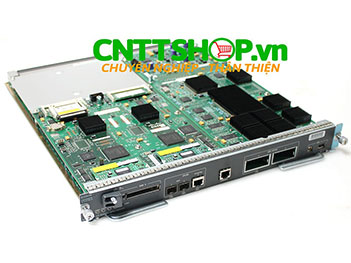

Cisco Virtual Switching Supervisor Engine 720 with 10 Gigabit Ethernet uplinks (PFC 3C)
|
|
Support for Cisco VSS 1440
|
Yes
|
|
MAC entries
|
96,000
|
|
IP Routes
|
1,000,000 (IPv4), 500,000 (IPv6)
|
|
IPv4 Routing
|
• In hardware
• Up to 450 Mpps
|
|
IPv6 Routing
|
• In hardware
• Up to 225 Mpps
|
|
Layer 2 Bridging
|
• In hardware
• Up to 450 Mpps
|
|
NetFlow Entries
|
256,000
|
|
MPLS
|
• MPLS in hardware to enable use of Layer 3 VPNs and EoMPLS tunneling.
• Up to 1024 VRFs with a total of up to 1,000,000 routes per system.
|
|
GRE
|
In hardware
|
|
NAT
|
Hardware-assisted
|
|
Chassis Compatibility
|
• Cisco Catalyst 6503-E, 6504-E, 6506, 6506-E, 6509, 6509-E, 6509-NEB-A, 6509-V-E, 6513
• Cisco 7604, 7609, 7613
|
|
Fan Tray and Minimum Power Supply Required
|
• E Chassis supports Cisco Virtual Switching Supervisor Engine 720
• 2500W AC or DC
• Non E Chassis requires the following:
• High-speed fan
• 2500W AC or DC
|
|
Slot Requirements
|
Occupies the following slots in the chassis:
• 3-slot chassis: slots 1 and 2
• 4-slot chassis: slots 1 and 2
• 6-slot chassis: slots 5 and 6
• 9-slot chassis: slots 5 and 6
• 13-slot chassis: slots 7 and 8
|
|
Software Compatibility
|
• Cisco Catalyst 6500 Series
• Cisco IOS Software Release 12.2(33)SXH and later
• Cisco 7600 Series
• Cisco IOS Software Release 12.2(33)SXH and later
|
|
Protocols
|
• Layer 3 routing protocols, Border Gateway Protocol version 4 (BGPv4), Open Shortest Path First (OSPF), Intermediate System-to-Intermediate System (IS-IS), Enhanced Interior Gateway Routing Protocol(EIGRP), Routing Information Protocol (RIP), Distributed FIB Switching, Cisco Discovery Protocol, Internet Control Message Protocol (ICMP)
• Multicast forwarding, Protocol independent Multicast (PIM) (both sparse and dense mode), (S,G), (*,G), Bidirectional PIM in hardware
• Comprehensive MPLS support
• Cisco Group Management Protocol and Internet Group Management Protocol (IGMP) snooping
|
|
Memory
|
• Supports 1 GB of DRAM for the route processor and 1 GB for the switch processor
• 1 GB compact flash for switch processor and 64 MB of boot flash for route processor
|
|
Storage Options
|
Removable storage: 256 MB, 512 MB, 1 GB (compact flash)
|
|
Uplink Ports
|
Two 10 Gigabit optics (X2) ports, two Gigabit Ethernet SFP ports, one selectable 10/100/100 RJ-45
|
|
Console Ports
|
One (RS-232)
|
|
USB Ports
|
• One host and one device port
|
|
Reliability and Availability
|
• Virtual Switching System (VSS)
• Fast software upgrade
• Route Processor Redundancy+ (RPR+)
• Stateful Switchover + Nonstop Forwarding (SSO + NSF)
• Online insertion and removal (OIR) hot swap
• Fast fabric switchover
|
|
Physical Specifications
|
• (H x W x D): 1.6 x 15.3 x 16.3 in. (4.0 x 37.9 x 40.3 cm)
• Weight: 11.5 lb; 12.5lb with Optics and SFP
|
|
Power Consumption
|
|
|
Environmental Conditions
|
• Operating temperature: 32 to 104°F (0 to 40°C)
• Storage temperature: -40 to 158°F (-40 to 70°C)
• Relative humidity, operating, noncondensing: 10 to 90%
• Relative humidity, nonoperating, noncondensing: 10 to 95%
• MTBF: Demonstrated 85,000 hours
|
