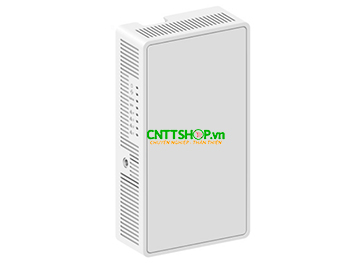

Wifi 6 H3C Access Point WA6520H
| Part Number |
:
|
| List Price |
: $
|
| Giá bán |
:
|
| Bảo hành |
:
|
| Made In |
:
|
| Stock |
:
|
Wifi 6 H3C Access Point WA6520H có 4x 10/100/1000M Ethernet copper ports, 1x 2.5G SFP port, 1x Uplink/PoE port. Built-in antenna 2.4 G and 5 G.
Thông số kỹ thuật wifi 6 H3C WA6520H
| Datasheet wifi H3C WA6520H | |
| Specification | |
| Dimensions (H × W × D) | 160 × 86 × 39 mm (6.30 × 3.39 × 1.54 in, excluding the mounting bracket) |
| Weight | 350 g (12.35 oz) |
| Power consumption | • ≤ 15 W with a USB device attached • ≤ 12.5 W without a USB device attached |
| Power supply | • Local power source • PoE power supply |
| Antenna | Built-in antenna: • 2.4 G: 3 dBi gain • 5 G: 5 dBi gain |
| Standards | • 802.11ax, 802.11ac, 802.11n • 802.3af |
| Port | |
| Console port | Used by technical personnel only for device configuration and management. |
| 10/100/1000M Ethernet copper port |
Represented by interface number GE1/0/2 to GE1/0/5 in the MAP file and GigabitEthernet 2 to GigabitEthernet 5 on the AC. |
| Uplink/PoE port (10/100/1000M Ethernet copper port) |
Used for connecting the AP to an uplink device for Internet or MAN access. It can also receive PoE power from the uplink device. It is represented by interface number GE1/0/1 in the MAP file and GigabitEthernet 1 on the AC. |
| 2.5GE/SFP port | 100/1000/2500M Ethernet fiber port. |
| Power port (54 V) | Used for receiving +54 VDC power from a local power source. |
| USB port | Used for charging as well as data reading or writing |
