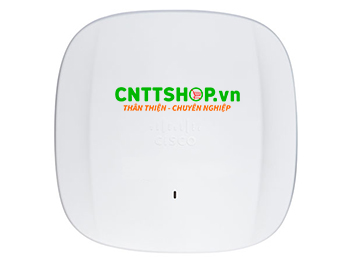

| Datasheet wifi 6 CW9164I-E |
| Specifications |
| 802.11ax |
4x4 uplink/downlink MU-MIMO with four spatial streams (5 GHz and 6 GHz)
2x2 uplink/downlink MU-MIMO with two spatial streams (2.4 GHz)
Uplink/downlink OFDMA, TWT, BSS coloring, MRC
802.11ax beamforming
20-, 40-, 80-, and 160-MHz channels (6 GHz)
20-, 40-, 80-, channels (5 GHz)
20-MHz channels (2.4 GHz)
PHY data rates up to 7.49 Gbps (4x4 160 MHz on 6 GHz, 4x4 80 MHz on 5 GHz, and 2x2 20 MHz on 2.4 GHz)
Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
802.11 DFS, CSD support, WPA3 support |
| Integrated antenna |
2.4 GHz: Peak gain 3 dBi, internal antenna, omnidirectional in azimuth
5 GHz: Peak gain 5 dBi, internal antenna, omnidirectional in azimuth
6 GHz: Peak gain 4 dBi, internal antenna, omnidirectional in azimuth |
| Interfaces |
- 1x 100M/1000M/2.5G Multigigabit Ethernet (RJ-45)
- 1x Management console port (RJ-45)
- 1x USB 2.0 |
| Indicators |
Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors |
| Input power requirements |
802.3bt, Cisco Universal PoE (Cisco UPOE ®), 802.3at Power over Ethernet Plus (PoE+)
Cisco power injectors: AIR-PWRINJ7=, AIR-PWRINJ6=, MA-INJ-6
802.3af PoE (only for configuration staging, all radios off)
DC power input (54V) |
| System memory |
2 GB DRAM
1 GB flash |
| Supported wireless LAN controllers |
Cisco Catalyst 9800 Series Wireless Controllers (WLC) |
| Environmental |
| Nonoperating (storage) temperature |
-22° to 158°F (-30° to 70°C) |
| Nonoperating (storage) altitude test |
25°C (77°F) at 15,000 ft (4600 m) |
| Operating temperature |
32° to 122°F (0° to 50°C) |
| Operating humidity |
10% to 90% (noncondensing) |
| Operating altitude test |
40°C (104°F) at 9843 ft (3000 m) |
| Dimensions |
| Dimensions (W x L x H) |
9.5 x 9.5 x 2.2 in (24.13 x 24.13 x 5.69 cm) |
| Weight |
3.54 lb (1.60 kg) |
