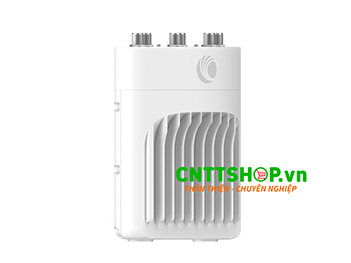

| Datasheet Wifi Cambium XE3-4TN |
| Access Point Specifications |
| Radios |
5 GHz /6 GHz 802.11a/n/ac/ax, 4x4 SW configurable
5 GHz 802.11 a/n/ac Wave 2/ax, 2x2
2.4 GHz 802.11 b/g/n/ax, 2x2
BLE 4.1, GPS receiver |
| Wi-Fi |
802.11 a/b/g/n/ac Wave 2/ax |
| SSID Security |
WPA3, WPA2 (CCMP, AES, 802.11i), WPA2 Enterprise
(802.1x/EAP), WPA PSK (TKIP),
WEP, Open |
| Max PHY Rate |
5/6 GHz radio 4,804 Mbps
5 GHz radio 1,201 Mbps
2.4 GHz radio 573.5Mbps |
| Ports |
1 x IEEE 100/1000/2500 Mbps Ethernet
1 x IEEE 10/100/1000 Mbps Ethernet with PoE out |
| Max EIRP |
5/6 GHz 36 dBm/TBD
5 GHz 36 dBm
2.4 GHz 36 dBm
EIRP may be limited by country regulations |
| Power |
Typical power 25W (802.3at)
62W with PoE out enabled and sourcing 30W |
| Dimensions |
220mm x 200mm x 86mm
(8.66 in x 7.87 in x 3.39 in) |
| Weight |
2,920 g (6.44 lbs) |
| Security |
Kensington lock slot |
| LEDs |
Multi-color status LEDs |
| Ambient Operation Temperature |
-40ºC to 65ºC
(-40ºF to 149ºF) |
| Storage Temperature |
-40ºC to 70ºC
(-40ºF to 158ºF) |
| Humidity |
95% RH non-condensing |
| Certifications (Compliance) |
WiFi Alliance 80211a/b/g/n/ac/ax, PP2.0
FCC, ETSI, CE, IC, IEC60950, IEC62368,
EN61373, EN50121 |
| Network Specifications |
| Operational Modes |
Standalone
Cloud managed cnMaestro or VM
Cloud managed XMS |
| WLAN |
1500 clients, 16 SSIDs
WPA-TKIP, WPA2 AES, 802.1x
802.11w PMF |
| Authentication Encryption |
Hotspot 2.0, 802.1x EAP-SIM/AKA,
EAP-PEAP, EAP-TTLS, EAP-TLS, MAC
authentication local database or RADIUS |
| Scheduled WLAN |
On/off by day, week, time of day |
| Guest Access |
EasyPass guest self-registration, guest
Ambassador, ePSK, Vouchers, Rate Limit,
Splash page hosted on AP or cnMaestro
Client isolation per SSID, per network |
| Data Limit |
Client rate limit per SSID |
| Subscriber QoS |
WMM |
| Fast Roaming |
802.11r, OKC, Enhanced roaming |
| Mesh |
Multi-hop, either band |
| Channel Selection |
Multi-modal channel selection with
AutoChannel, AutoBand (XMS) and autotune
(cnMaestro) |
| RF Management |
Multi-Modal RF optimization supporting
AutoCell (XMS) and AutoRF (cnMaestro)
performed in the intelligent edge AP. Out
of band RF spectrum analysis, radio self test
network assurance (XMS), RF monitor with
chn/noise/interference |
| Network |
TCP connection log, NAT logging firewall,
DHCP server, L2, L3 or DNS based access
control, VLAN Pooling, RADIUS attribute
VID, VLAN per SSID per user |
Band Steer
Load Balance |
Yes |
| Tunnel |
L2TP, L2oGRE, PPPoE |
Network and
RF Management
Tools |
Wired and wireles remote packet capture,
auto logging, ZapD performance tool,
rogue AP detection |
| Services |
WIDs/WIPs, NTP, Syslog, SNMP traps, DNS
proxy, auto-off on WAN failure, Layer 2 –
layer 7 application visibility & control |
| API |
RESTful management and statistics API
Presence location APIs |
| Standards |
| Wi-Fi Protocols |
802.11a/b/g/n/ac wave 2, 802.11ax, up to 4x4. 20/40/80/160 MHz, MU-OFDMA, MU-MIMO, TWT, MIMO, VHT MCS rates,
16/64/256/1024/4096-QAM, HT20/40/80/160 MHz |
Transmit Beam steering, Airtime Fairness, AMSDU, AMPDU, RIFS, STBC, LDPC, MIMO Power Save, MRC, BPSK, QPSK,
CCK, DSSS, OFDM |
| IEEE 802.11d/e/h/i/k/r/u/v/w |
