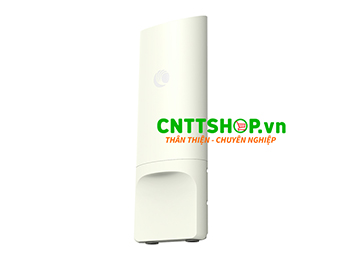

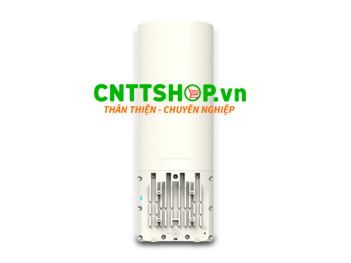

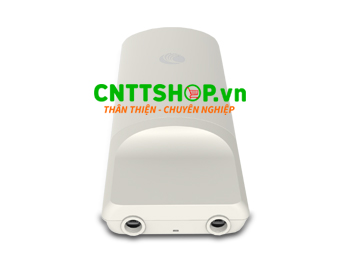

| XV2-2T1 Datasheet |
| Access Point Specifications |
| Wi-Fi |
802.11 a/b/g/n/ac Wave 2/ax |
| Radios |
5 GHz 802.11 a/n/ac Wave 2/ax, 2x2
2.4 GHz 802.11 b/g/n/ax, 2x2
BLE 4.1 |
| SSID Security |
WPA3, WPA2 (CCMP, AES, 802.11i), WPA2
Enterprise (802.1x/EAP), WPA PSK (TKIP),
WEP, Open |
| Max PHY Rate |
5 GHz radio 1,201 Mbps
2.4 GHz radio 573.5Mbps |
| Ports |
1 x IEEE 100/1000/2500 Mbps
1 x IEEE 10/100/1000 Mbps Ethernet with SW
configurable passive PoE output of 30V or 48V up
to 30 Watts |
| Antenna |
5 GHz 13.5 dBi, Sector
2.4 GHz 11 dBi, Sector |
| Max EIRP |
5 GHz 36 dBm
2.4 GHz 35 dBm
EIRP may be limited by country regulations |
| LTE Filter Band |
38, 40 |
| Power |
20W max
Up to 50W when powering an auxiliary device |
| Dimensions |
582 mm x 200 mm x 80 mm
(22.91 in x 7.87 in x 3.15 in) |
| Weight |
1,200 g (2.64 lbs) |
| Security |
Kensington lock slot |
| LEDs |
Multi-color status LEDs |
| Ambient Operation Temperature |
-40ºC to 65ºC
(-40ºF to 149ºF) |
| Storage Temperature |
-40ºC to 70ºC
(-40ºF to 158ºF) |
| Humidity |
95% RH non-condensing |
| MTBF |
25ºC = 674,966 hours
65ºC = 197,106 hours |
| Mount Options |
Pole or wall mounting.
Pole diameter: MIN 30 mm / MAX 75 mm |
| Certifications (Compliance) |
Wi-Fi Alliance 802.11 a/b/g/n/ac/ax, FCC, IC,
CE, EN 60601-1-2, EN 60950-1,IEC 62368-1
Safety, EN 60601-1-2 Medical, EN 61000-4-
2/3/5 Immunity, EN 50121-1 Railway EMC, EN
50121-4 Railway Immunity, IEC 61373 Railway
Shock & Vibration, EN 62311 Human Safety/RF
Exposure, WEEE & RoHS |
| Network Specifications |
| Operational Modes |
Standalone
Cloud managed cnMaestro or VM
Cloud managed XMS |
| WLAN |
512 clients, 16 SSIDs
WPA3, WPA3 SAE, WPA3 Enterprise,
WPA-TKIP, WPA2 AES, 802.1x,802.11w PMF |
| Authentication Encryption |
802.1x EAP-SIM/AKA, EAP-PEAP, EAP-TTLS,
EAP-TLS MAC authentication to
local database or external RADIUS |
| Scheduled WLAN |
On/off by day, week, time of day |
| Guest Access |
See “Captive Portal” section for additional
details |
| Data Limit |
Client bitrate/time/throughput limit per SSID |
| Subscriber QoS |
WMM |
| Fast Roaming |
802.11r, OKC, Enhanced roaming |
| Mesh |
Multi-hop, either band |
| Channel Selection |
Multimodal channel selection with
AutoChannel and AutoBand. Granular
control of off-channel scan and channel
selection |
| RF Management |
Multimodal RF optimization supporting
AutoCell performed in the intelligent edge
AP. Out-of-band RF spectrum analysis, radio
self test network assurance, RF monitor with
chn/noise/interference
Data rate pruning and minimum data rates |
| Network |
LACP (802.3ad) ,TCP connection log, NAT
logging firewall, DHCP server, L2, L3 or
DNS based access control, VLAN Pooling,
RADIUS attribute VID, VLAN per SSID
per user |
| Band Steer Load Balance |
Yes |
| Tunnel |
L2TP, L2oGRE, PPPoE |
| Network and RF Management Tools |
Wired and wireles remote packet capture,
auto logging, ZapD performance tool,
rogue AP detection |
| Services |
NTP, Syslog, SNMP traps, DNS proxy |
| Standards |
Wi-Fi
Protocols |
VHT MCS rates, 16/64/256/1024-QAM, 20/40/80 MHz |
TWT, Long OFDM Symbol, Transmit beamforming, Airtime Fairness, AMSDU, AMPDU, RIFS, STBC, LDPC, MIMO Power
Save, MRC, BPSK, QPSK, CCK, DSSS, OFDM, OFDMA, UL/DL MU-MIMO |
| IEEE 802.11 a/ac/ax/b/d/e/g/h/i/k/n/r/u/v |
