| GWN7605 Datasheet |
| Wi-Fi Standards |
IEEE 802.11a/b/g/n/ac (Wave-2) |
| Antennas |
2 dual band internal antennas
2.4GHz, gain 3dBi
5 GHz, gain 4dBi |
| Wi-Fi Data Rates |
IEEE 802.11ac: 6.5 Mbps to 867 Mbps
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
IEEE 802.11n: 6.5Mbps to 300Mbps;
IEEE 802.11b: 1, 2, 5.5, 11 Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
*Actual throughput may vary depending on many factors including environmental conditions, distance between
devices, radio interference in the operating environment and mix of devices in the network |
| Frequency Bands |
2.4 GHz Radio: 2412 – 2484 MHz
5 GHz Radio: 5180-5825 MHz |
| Channel Bandwidth |
2.4G: 20 and 40 MHz
5G: 20,40 and 80 MHz |
| Wi-Fi and System Security |
WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES), anti-hacking secure boot and critical
data/control lockdown via digital signatures, unique security certificate and random default
password per device |
| MIMO |
2x2:2 2.4GHz (MIMO)
2x2:2 5GHz (MU-MIMO) |
| Coverage Range |
Up to 165 meters
*coverage range can vary based on environment |
| Maximum TX Power |
2.4G:24dBm
5G:22dBm
*Maximum power varies by country, frequency band and MCS rate |
| Receiver Sensitivity |
2.4G
802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps;
802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7
5G
802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40:-
63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9 |
| SSIDs |
16 SSIDs total, 8 per radio (2.4 Ghz and 5 Ghz) |
| Concurrent Clients |
100+ |
| Network Interfaces |

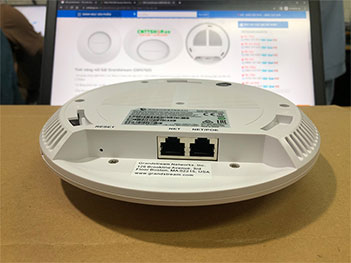

2 x autosensing 10/100/1000 Base-T Ethernet Ports |
| Auxiliary Ports |

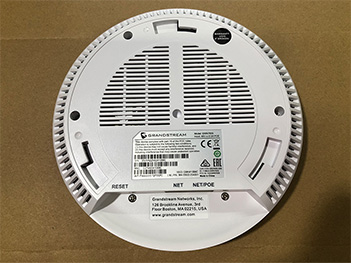

1 x Reset Pinhole, 1 x Kensington lock |
| Mounting |

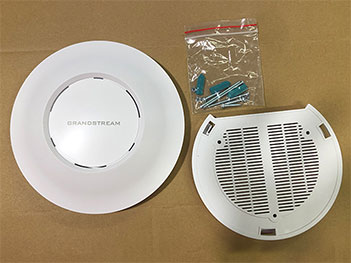

Indoor wall or ceiling mount, kits included |
| LEDs |
3 x tri-color LED for device tracking and status indication |
| Network Protocols |
IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM |
| QoS |
802.11e/WMM, VLAN, TOS |
| Network Management |
Embedded controller can manage up to 50 local GWN APs
GWN.Cloud offers a free cloud management platform for unlimited GWN APs
GWN Manager offers premise-based software controller for up to 3,000 GWN APs |
| Power and Green Energy Efficiency |
PoE 802.3af/ 802.3at;
Maximum Power Consumption:10.16W |
| Environmental |
Operation: 0°C to 40°C
Storage: -10°C to 60°C
Humidity: 10% to 90% Non-condensing |
| Physical |
Unit Dimension: 180.4mmx180.4mmx40.8mm; Unit Weight: 388.2g
Entire Package Dimension: 228.5x220x79mm; Entire Package Weight: 719.3g |
| Package Content |

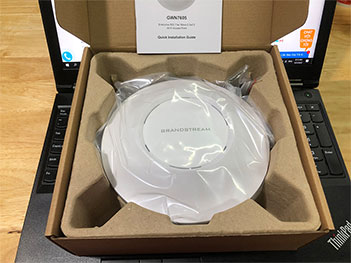

GWN7605 802.11ac Wireless AP, Mounting Kits, Quick Start Guide |
| Compliance |
FCC, CE, RCM, IC |
